Stainless Steel Filter Discs

Home > Metal Filter > Stainless Steel Filter Discs > Wire Mesh Discs

PRODUCT CATEGORY

Wire Mesh Discs
Wire Mesh Discs
Wire Mesh Discs
Wire Mesh Discs

Wire Mesh Discs

The wire mesh filter discs, also known as a flanged-edge filter, features a reinforced outer frame surrounding the filtration medium to ensure structural stability and rigidity. It is typically designed as a disposable product and requires periodic replacement.

share:

Product Details

Technical Specifications

Customized Craftsmanship

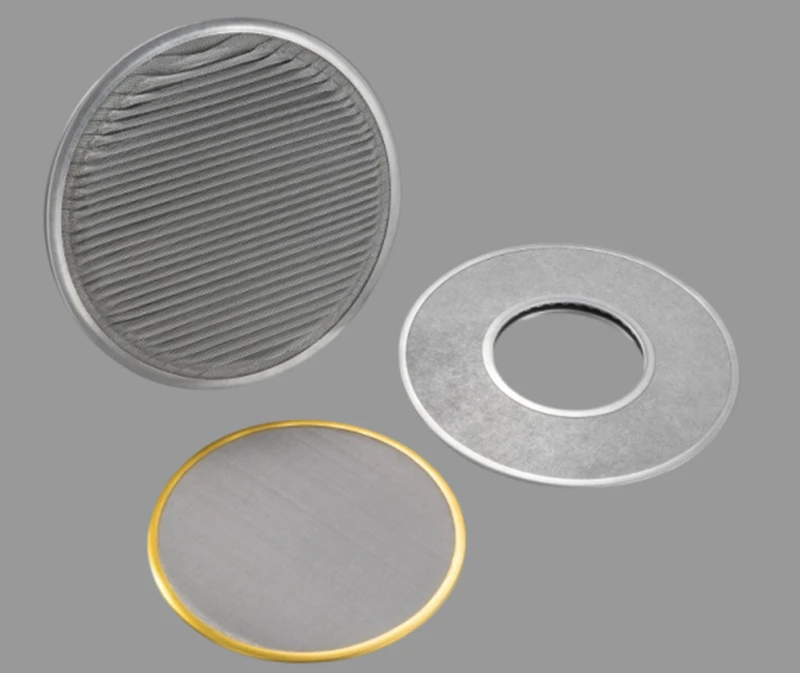

Wire Mesh Discs

Wire Mesh Filter Discs, also referred to as mesh filter screens or screen filter discs, are thin-disc filters fabricated by precisely cutting woven mesh or sintered wire mesh to specified dimensions, followed by edge binding or spot welding for reinforcement. These filter discs are available in various shapes and offer straightforward installation, superior durability, excellent corrosion resistance, and extended service life. As a core filtration medium, they are widely employed for liquid-solid or gas-solid separation, making them an ideal choice for a broad spectrum of applications, including HVAC systems, water filtration, and industrial processes. As a specialized manufacturer of wire mesh filter discs, we provide tailored filtration solutions to our partners, ensuring compliance with specific technical standards and performance requirements from raw material selection to practical implementation. Our solutions are designed to optimize end-user experience and minimize operational costs. Should you wish to explore technical specifics or potential collaboration opportunities regarding wire mesh filter discs, please do not hesitate to contact us.

Wire Mesh Discs Shapes

Circular, square, rectangular, oval, U-shaped, and various other configurations are available. Customized specifications for unique shapes are also offered.

Wire Mesh Discs Structures And Types

Single-layer wire mesh disc

Single-layer wire mesh disc

Cost-effective

Good filtration performance

Easy maintenance

High mechanical strength

Multi-layer wire mesh disc

Multi-layer wire mesh disc

High strength

Enhanced filtration performance

Good environmental adaptability

Easy cleaning and maintenance

Wire Mesh Discs Features and Advantages

01

Excellent Durability

The wire mesh filter disc is typically constructed from stainless steel or other alloy metals, characterized by high strength, high-temperature resistance, and corrosion resistance. It can withstand high-pressure working conditions, resist deformation under compression, and maintain stable filtration performance.

02

Compact Structure and Centralized Filtration

With a compact and lightweight design, wire mesh filter disc is easy to handle and store. It enables centralized filtration and is particularly suitable for compact filtration systems, achieving multi-layered filtration effects.

03

Superior Filtration Performance

The wire mesh filter disc features uniformly distributed pores and stable separation capabilities, ensuring high filtration efficiency by effectively capturing fine particles larger than the pore size.

04

Excellent Cleanability

With a robust structure and strong mechanical strength, the wire mesh filter disc can endure backwash, ultrasonic cleaning, acid washing, and steam purging. It can also be easily cleaned by simple wiping, allowing repeated use and providing significant economic benefits.

Wire Mesh Discs Packaging

Plastic film

Plastic film

Carton box

Carton box

Carton partition

Carton partition

Plywood case

Plywood case

Technical Specifications

Guangtong Wire Mesh Filter Disc Technical Specifications
Filtration Material Stainless steel (304, 304L, 316, 316L, 904L, etc.), Brass, Nickel, etc.
Filtration Rate 3-200μm
Diameter 10-580mm
Thickness 1.0–5.3 mm
Layers 3–5
The wire mesh filter disc is a non-standard custom product. We can provide the required filter design drawings. Please contact us for customization.

Wire Mesh Discs Processing Technology

Cutting

Cutting

Stamping

Stamping

Sintering

Sintering

Welding

Welding

Wire Mesh Discs Customization Process

Closed-loop process to minimize communication efforts. Full-process service:

Receiving inquiry

Receiving inquiry

Reviewing drawings

Reviewing drawings

Providing quotations

Providing quotations

Producing trial samples

Producing trial samples

Confirming trial installation

Confirming trial installation

Commencing mass production

Commencing mass production

Delivering products

Delivering products

Providing after-sales support

Providing after-sales support

Wire Mesh Discs Quality Control System

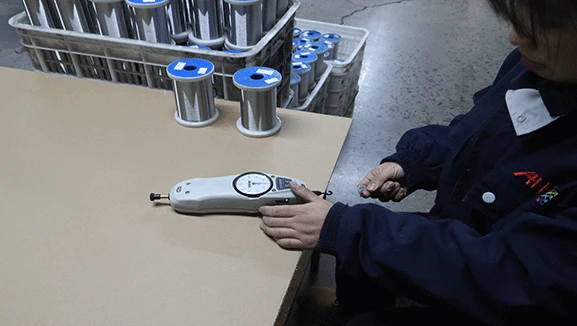

Raw Material Control

Raw Material Control

All metal raw materials undergo chemical and physical testing to ensure that only qualified materials enter the workshop for production.

In-process Inspection

In-process Inspection

All molds and equipment undergo calibration to achieve minimal tolerances, ensuring compliance with order specifications and industry standards. Additionally, sampling inspections are conducted throughout the manufacturing process.

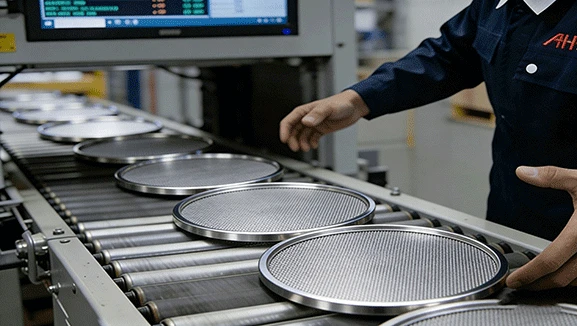

Finished Product Inspection

Finished Product Inspection

All metal filters undergo performance testing prior to warehousing and packaging. Bubble Test can be performed upon customer request to verify the sealing integrity of welds and joints. Products that pass inspection are stored in designated areas awaiting packaging and shipment.

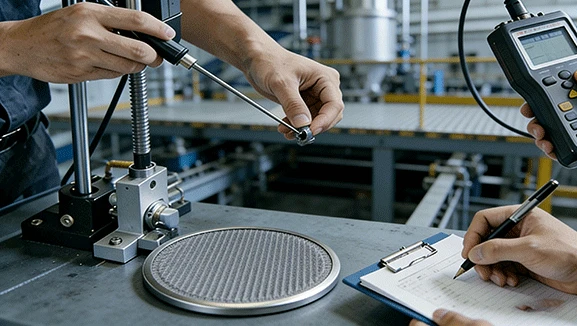

Document Traceability

Document Traceability

Guangtong employs unique coded tracking documents for each metal filter element from raw material intake. This system provides data support to ensure full traceability and order transparency at every stage, effectively reducing equipment downtime and mitigating quality issues.

Packaging

Packaging

After thorough inspection, metal filter elements are packaged using plastic film and plywood cases to prevent damage during transportation.

Shipping

Shipping

We collaborate with reliable freight forwarders to closely monitor logistics information for each shipment. Real-time tracking of delivery status ensures the safe and efficient arrival of every batch of metal filter elements, which remains our long-standing operational principle.

Learn More >

Wire Mesh Discs Certificates

Wire Mesh Discs Certificates

Guangtong has obtained a comprehensive suite of authoritative international credentials, including ISO 9001, ISO 45001, ISO 14001, IATF 16949 Automotive Quality Management System, and AEO Customs Certification. Our rigorous quality management and standardized production processes fully comply with global industrial and export requirements.
