Stainless Steel Wire Mesh

Stainless steel wire mesh serves as the most fundamental and widely used material for industrial filtration and screening, supporting a comprehensive range of weaving methods. It exhibits excellent corrosion resistance, high-temperature durability, and superior performance.

Inquire Now >> Next Product >>

Product Details

Technical Specifications

Customized Craftsmanship

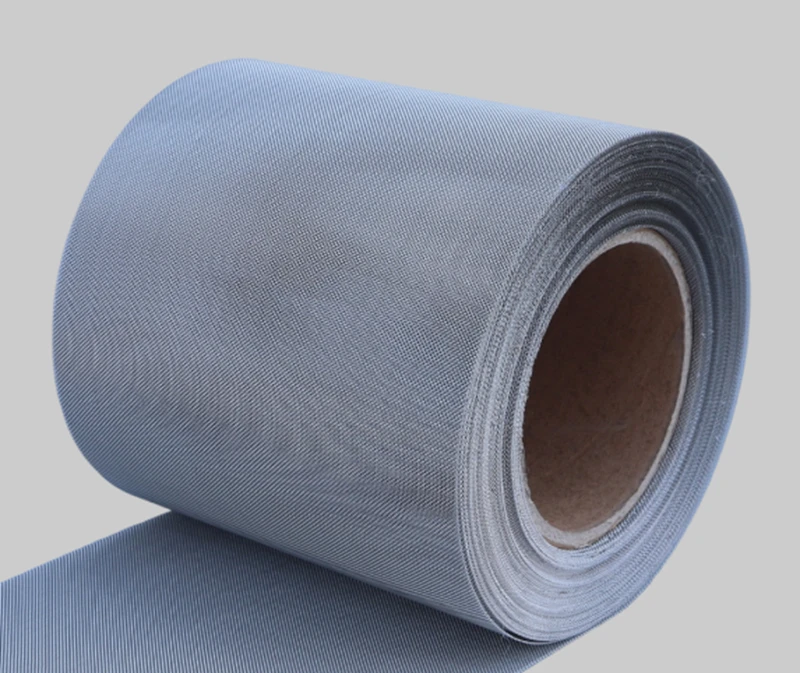

Stainless Steel Wire Mesh

Guangtong stainless steel wire mesh—available in various materials such as 304, 304L, 316, 316L, 310, 310S, 314, and 321—offers multiple weaving types including plain weave, twill weave, dutch weave, reverse dutch weave, five-heddle weave, and crimped weave. It exhibits excellent corrosion resistance, rust prevention, wear resistance, and acid-alkali durability, making it widely applicable in diverse filtration scenarios for liquids, gases, and solids. Guangtong supports customized options for different shapes and surface finishes. To meet industry-specific requirements for filtration efficiency or open area ratio, we also provide length-cutting services tailored to order quantities.

Stainless Steel Wire Mesh Complete Range Weaving Techniques

Precision Weaving

Special Weaves

Plain Weave

The plain weave mesh features a warp-weft interlacing structure, where each warp wire passes alternately over and under the weft wires at a 90-degree vertical angle, ensuring uniform and regular diameters of both warp and weft threads as well as consistent mesh openings.

Twill Weave

In twill weave, each warp wire alternately passes over two and under two weft wires, with each weft yarn following the same pattern over two and under two warp wires. The warp and weft diameters are identical, resulting in a continuous parallel diagonal pattern.

Dutch Weave

Dutch weave employs thicker warp wires and finer weft wires. The weft wires alternate over and under pairs of warp wires, forming a fine mesh in one direction and a coarse mesh in the other, ultimately producing a tight, conical or wedge-shaped mesh surface.

Reverse Dutch Weave

Reverse dutch weave adopts the opposite configuration of the Dutch weave, utilizing fine warp wires and thick weft wires to form triangular horizontal pores.

5-Heddle Weave

Each warp wire interlaces alternately over and under each weft wire at a 90-degree angle, with identical diameters for both warp and weft wires and uniform, regularly structured apertures.

Herringbone Weave

Herringbone weave is a specialized variant of twill weave. Depending on the mesh width and practical application, the direction of the twill pattern reverses at intervals such as 20, 50, 100, 200, or 500 millimeters, creating a pattern resembling a herringbone skeleton.

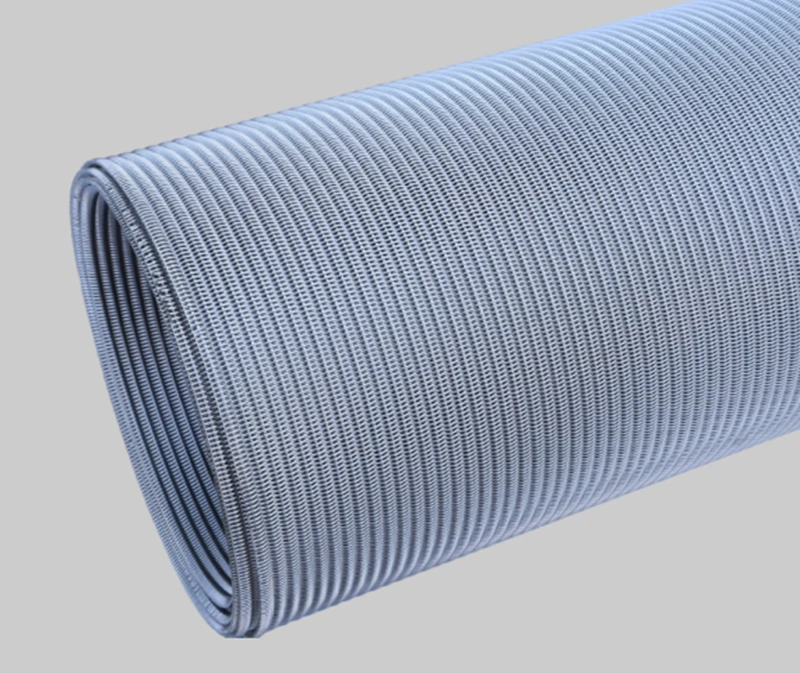

Crimped Weave

Crimped weave utilizes pre-embossed wires that are interlocked or nested to form heavy-duty metal meshes. During the crimped process, the wires are precisely bent at specified intervals to ensure an accurately defined mesh structure.

Stainless Steel Wire Mesh Features and Advantages

Durability and Robustness

Stainless steel wire mesh demonstrates outstanding mechanical strength and load-bearing capacity, with minimal deformation, high surface hardness, and resistance to rust and abrasion. It maintains structural stability even in harsh environments, thereby ensuring an extended service life for precision filters.

Superior Functionality

The mesh supports multiple weaving methods with precise aperture control, ensuring high permeability, exceptional separation efficiency, and a smooth surface that minimizes material adhesion. It is easy to clean and maintain, suitable for repeated use.

Wide Applicability

With a selection of alloy materials adaptable to various chemical environments, and support for diverse processing techniques, the mesh can be custom-manufactured into industrial filters for broad application across sectors.

Customization Flexibility

Stainless steel wire mesh can be produced to meet specific customer requirements—such as mesh size, wire diameter, weaving type, and open area ratio. Surface treatment options are available to further enhance performance for specialized applications.

Stainless Steel Wire Mesh Packaging

Inner paper tubes

Waterproof paper

Plastic film

Plywood boxes

Pallets

Technical Specifications

Guangtong Stainless Steel Wire Mesh Specifications
Item	Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight
		inch	mm	inch	mm	%	(LB/100 Square Foot)
SS-1	1×1	0.08	2.03	0.92	23.37	84.6	41.1
SS-2	2×2	0.063	1.6	0.437	11.1	76.4	51.2
SS-3	3×3	0.054	1.37	0.279	7.09	70.1	56.7
SS-4	4×4	0.063	1.6	0.187	4.75	56	104.8
SS-5	4×4	0.047	1.19	0.203	5.16	65.9	57.6
SS-6	5×5	0.041	1.04	0.159	4.04	63.2	54.9
SS-7	6×6	0.035	0.89	0.132	3.35	62.7	48.1
SS-8	8×8	0.028	0.71	0.097	2.46	50.2	41.1
SS-9	10×10	0.025	0.64	0.075	1.91	56.3	41.2
SS-10	10×10	0.02	0.51	0.08	2.03	64	26.1
SS-11	12×12	0.023	0.584	0.06	1.52	51.8	42.2
SS-12	12×12	0.02	0.508	0.063	1.6	57.2	31.6
SS-13	14×14	0.023	0.584	0.048	1.22	45.2	49.8
SS-14	14×14	0.02	0.508	0.051	1.3	51	37.2
SS-15	16×16	0.018	0.457	0.0445	1.13	50.7	34.5
SS-16	18×18	0.017	0.432	0.0386	0.98	48.3	34.8
SS-17	20×20	0.02	0.508	0.03	0.76	36	55.2
SS-18	20×20	0.016	0.406	0.034	0.86	46.2	34.4
SS-19	24×24	0.014	0.356	0.0277	0.7	44.2	31.8
SS-20	30×30	0.013	0.33	0.0203	0.52	37.1	34.8
SS-21	30×30	0.012	0.305	0.0213	0.54	40.8	29.4
SS-22	30×30	0.009	0.229	0.0243	0.62	53.1	16.1
SS-23	35×35	0.011	0.279	0.0176	0.45	37.9	29
SS-24	40×40	0.01	0.254	0.015	0.38	36	27.6
SS-25	50×50	0.009	0.229	0.011	0.28	30.3	28.4
SS-26	50×50	0.008	0.203	0.012	0.31	36	22.1
SS-27	60×60	0.0075	0.191	0.0092	0.23	30.5	23.7
SS-28	60×60	0.007	0.178	0.0097	0.25	33.9	20.4
SS-29	70×70	0.0065	0.165	0.0078	0.2	29.8	20.8
SS-30	80×80	0.0065	0.165	0.006	0.15	23	23.2
SS-31	80×80	0.0055	0.14	0.007	0.18	31.4	16.9
SS-32	90×90	0.005	0.127	0.0061	0.16	30.1	15.8
SS-33	100×100	0.0045	0.114	0.0055	0.14	30.3	14.2
SS-34	100×100	0.004	0.102	0.006	0.15	36	11
SS-35	100×100	0.0035	0.089	0.0065	0.17	42.3	8.3
SS-36	110×110	0.004	0.1016	0.0051	0.1295	30.7	12.4
SS-37	120×120	0.0037	0.094	0.0064	0.1168	30.7	11.6
SS-38	150×150	0.0026	0.066	0.0041	0.1041	37.4	7.1
SS-39	160×160	0.0025	0.0635	0.0038	0.0965	36.4	5.94
SS-40	180×180	0.0023	0.0584	0.0033	0.0838	34.7	6.7
SS-41	200×200	0.0021	0.0533	0.0029	0.0737	33.6	6.2
SS-42	250×250	0.0016	0.0406	0.0024	0.061	36	4.4
SS-43	270×270	0.0016	0.0406	0.0021	0.0533	32.2	4.7
SS-44	300×300	0.0051	0.0381	0.0018	0.0457	29.7	3.04
SS-45	325×325	0.0014	0.0356	0.0017	0.0432	30	4.4
SS-46	400×400	0.001	0.0254	0.0015	0.37	36	3.3
SS-47	500×500	0.001	0.0254	0.001	0.0254	25	3.8
SS-48	635×635	0.0008	0.0203	0.0008	0.0203	25	2.63

Stainless Steel Wire Mesh Process Technology

Slotting

Laser Cutting

Stamping

Binding/Framing

Forming

Welding

Sintered

Pleated

Molding

Custom Design

Learn More >

Stainless Steel Wire Mesh Deep-processing Products

We can produce filter assemblies with non-standard sizes, special shapes, and composite structures according to customer drawings or samples.

Stainless Steel Pleated Filter Cartridge

Sintered Stainless Steel Tube

Cylindrical Mesh Filter

Stainless Steel Pre-filter

Perforated Metal Tube

Wire Mesh Filter Discs

Leaf Disc Filter

Extruder Screens

Wedge Wire Filter

Stainless Steel Cone Filter

Stainless Steel Filter Basket

Stainless Steel Wire Mesh Quality Control System

Raw material control

Spectrometer inspection at entry to ensure that the stainless steel wire meets the requirements.

Production process inspection

Using precision calipers, tool microscopes, CNC equipment, etc., to strictly test the mesh size, wire diameter, opening rate, and weight.

Weaving quality inspection

Ensure that the mesh surface is flat, free of broken or loose wires and the weaving is uniform.

Final inspection

Before each batch of products leaves the factory, a final review of appearance and dimensions is conducted to ensure 100% consistency with customer requirements.

Packaging

We will use inner paper tubes, waterproof paper, plastic film, plywood boxes and pallets for packaging to prevent damage to the goods during transportation.

Shipment

We will cooperate with reliable freight forwarders, closely monitor the logistics information of each batch of goods, and track the delivery status of customers in real time. Ensuring the safe and efficient delivery of each batch of wire mesh products to our customers is the principle we have long pursued.

Learn More >

Stainless Steel Wire Mesh Certificates

Guangtong has obtained a comprehensive suite of authoritative international credentials, including ISO 9001, ISO 45001, ISO 14001, IATF 16949 Automotive Quality Management System, and AEO Customs Certification. Our rigorous quality management and standardized production processes fully comply with global industrial and export requirements.

Learn More >
