Nickel Wire Mesh

The nickel wire mesh is fabricated from high-purity nickel wires with a nickel content of no less than 99%, exhibiting outstanding electrical conductivity, ductility, and resistance to acids and alkalis. It plays an indispensable role in a wide range of industrial applications.

Inquire Now >> Next Product >>

Product Details

Technical Specifications

Customized Craftsmanship

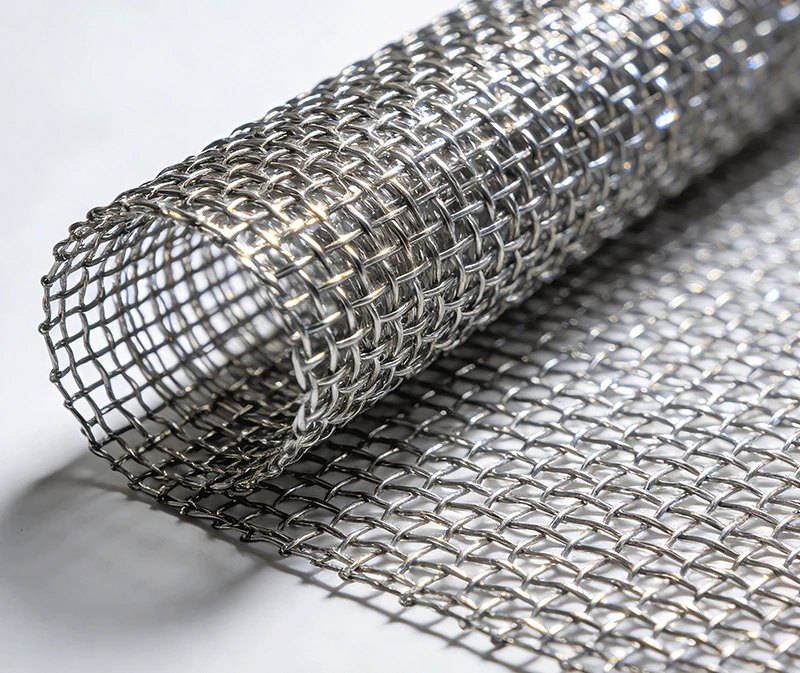

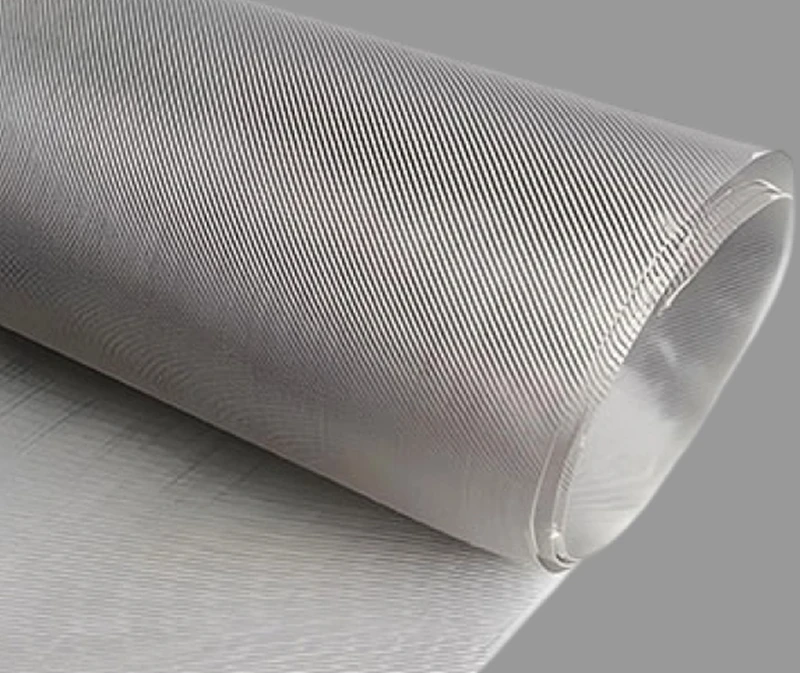

Nickel Wire Mesh

Nickel wire mesh is a high-performance mesh product fabricated from premium-grade nickel wire with a purity of no less than 99%. It retains the excellent chemical and physical properties inherent to nickel, including superior electrical conductivity and thermal conductivity. This material plays an indispensable role in applications such as hydrogen production via electrolysis, new energy technologies, and fuel cell systems. Additionally, it is widely utilized as a metallic filtration medium across various industries, including mining, petroleum, chemical processing, food and beverage, pharmaceuticals, and machinery manufacturing. Guangtong offers customization options in terms of shape and surface treatment. To meet specific industrial requirements for filtration efficiency or open area ratio, we also provide custom-length cutting services tailored to order quantities.

Nickel Wire Mesh Complete Range Weaving Techniques

Precision Weaving

Special Weaves

Plain Weave

The plain weave mesh features a warp-weft interlacing structure, where each warp wire passes alternately over and under the weft wires at a 90-degree vertical angle, ensuring uniform and regular diameters of both warp and weft wires as well as consistent mesh openings.

Twill Weave

In twill weave, each warp wire alternately passes over two and under two weft wires, with each weft wire following the same pattern over two and under two warp yarns. The warp and weft diameters are identical, resulting in a continuous parallel diagonal pattern.

Dutch Weave

Dutch weave employs thicker warp wires and finer weft wires. The weft wires alternate over and under pairs of warp wires, forming a fine mesh in one direction and a coarse mesh in the other, ultimately producing a tight, conical or wedge-shaped mesh surface.

Reverse Dutch Weave

Reverse Dutch weave adopts the opposite configuration of the Dutch weave, utilizing fine warp wires and thick weft wires to form triangular horizontal pores.

5-Heddle Weave

Each warp wire interlaces alternately over and under each weft wire at a 90-degree angle, with identical diameters for both warp and weft wires and uniform, regularly structured apertures.

Herringbone Weave

Herringbone weave is a specialized variant of twill weave. Depending on the mesh width and practical application, the direction of the twill pattern reverses at intervals such as 20, 50, 100, 200, or 500 millimeters, creating a pattern resembling a herringbone skeleton.

Crimped Weave

Crimped weave utilizes pre-embossed wires that are interlocked or nested to form heavy-duty metal meshes. During the crimped process, the wires are precisely bent at specified intervals to ensure an accurately defined mesh structure.

Nickel Wire Mesh Features and Advantages

Electrical Conductivity and Electromagnetic Compatibility

Nickel is an excellent conductive material, hence nickel wire mesh exhibits superior electrical conductivity and serves as a high-quality material for electromagnetic shielding in precision electronic equipment.

Temperature Resistance

Nickel wire mesh possesses a high melting point and has no ductile-to-brittle transition at low temperatures, enabling it to maintain excellent plasticity and toughness even under extreme environmental conditions, demonstrating strong adaptability.

Corrosion Resistance

Nickel remains chemically stable not only in acidic and alkaline media at room temperature but also exhibits exceptional resistance to strong alkalis such as sodium hydroxide (caustic soda) and potassium hydroxide. It is nearly the only viable metallic material for use in molten caustic soda environments.

High Load-Bearing Capacity

Nickel wire mesh offers high tensile strength, ductility, and fatigue resistance, allowing it to withstand substantial tensile and compressive forces. These properties make it highly suitable for a wide range of applications in manufacturing of products such as filters, meshes, and protective mesh.

Nickel Wire Mesh Packaging

Inner paper tubes

Waterproof paper

Plastic film

Plywood boxes

Pallets

Technical Specifications

Chemical Composition of Nickel
Type	C(%)	Cu(%)	Fe(%)	Mn(%)	Ni(%)	S (%)	Si(%)	Co (%)	Cr(%)	Mg(%)	Ti(%)
Nickel 200	0.015	0.25	0.4	0.35	99	0.01	0.35	-	-	-	-
Nickel 205	0.02	0.001	0.005	0.001	99.97	0.001	0.001	0.001	0.001	0.001	0.001
Nickel 270	0.15	0.15	0.2	0.35	99	0.008	0.15	-	0.01-0.05	0.01-0.08	-

Nickel 200 Woven Mesh Specifications
Item	Mesh Count	Wire Diameter	Weave Type	Width Opening	Open Area
		(in.)		(in.)	(%)
NI200-1	8×8	0.028	Plain	0.097	60.2
NI200-2	10×10	0.02	Plain	0.08	64
NI200-3	12×12	0.014	Plain	0.0693	69.2
NI200-4	16×16	0.012	Plain	0.0505	65.3
NI200-5	16×16	0.014	Plain	0.0485	60.2
NI200-6	20×20	0.0045	Plain	0.0455	82.8
NI200-7	20×20	0.007	Plain	0.0430	74
NI200-8	20×20	0.014	Plain	0.0360	51.8
NI200-9	25×25	0.006	Plain	0.0190	57.8
NI200-10	26×26	0.01	Plain	0.0285	54.8
NI200-11	30×30	0.013	Plain	0.0203	37.2
NI200-12	40×40	0.006	Plain	0.0190	57.8
NI200-13	40×40	0.01	Plain	0.0150	36
NI200-14	50×50	0.002	Plain	0.0180	81
NI200-15	60×60	0.007	Plain	0.0097	33.6
NI200-16	60×60	0.0105	Twil	0.0062	13.7
NI200-17	60×60	0.01	Twill	0.0057	11.6
NI200-18	70×70	0.004	Plain	0.0103	51.8
NI200-19	70×70	0.0045	Plain	0.0098	46.9
NI200-20	70×70	0.008	Twill	0.0063	19.4
NI200-21	80×80	0.0055	Twil	0.0070	31.4
NI200-22	85×70	0.006	Plain	0.0000	28.4
NI200-23	100×100	0.002	Plain	0.0080	64
NI200-24	100×100	0.004	Plain	0.0060	36
NI200-25	100×100	0.0045	Plain	0.0060	30.3
NI200-26	200×200	0.0018	Plain	0.0032	41

Nickel 205 Woven Mesh Specifications
Item	Mesh Count	Wire Diameter	Type Weave	Width Opening	Open Area
		(in.)		(in.)	(%)
NI205-1	60×60	0.006	Plain	0.0107	41

Nickel 270 Woven Mesh Specifications
Item	Mesh Count	Wire Diameter	Type Weave	Width Opening	Open Area
		(in.)		(in.)	(%)
NI270-1	50×50	0.067	Plain	0.0133	44.2
NI270-2	60×60	0.004	Plain	0.0127	57.8
NI270-3	60×60	0.006	Plain	0.0107	41
NI270-4	60×60	0.007	Plain	0.0097	33.6
NI270-5	75×75	0.006	Plain	0.0073	30.3

Nickel Wire Mesh Process Technology

Slotting

Laser Cutting

Stamping

Binding/Framing

Forming

Welding

Sintered

Pleated

Molding

Custom Design

Learn More >

Nickel Wire Mesh Deep-processing Products

We can produce filter assemblies with non-standard sizes, special shapes, and composite structures according to customer drawings or samples.

Stainless Steel Pleated Filter Cartridge

Sintered Stainless Steel Tube

Cylindrical Mesh Filter

Stainless Steel Pre-filter

Perforated Metal Tube

Wire Mesh Filter Discs

Leaf Disc Filter

Extruder Screens

Wedge Wire Filter

Stainless Steel Cone Filter

Stainless Steel Filter Basket

Nickel Wire Mesh Quality Control System

Raw material control

Spectrometer inspection upon entry to ensure that the nickel wire meets requirements;

Production process inspection

Using precision calipers, tool microscopes, CNC equipment, etc., to strictly test the mesh size, wire diameter, opening rate, and weight, etc.

Weaving quality inspection

Ensure that the mesh surface is flat, free of broken or loose wires , and the weaving is uniform.

Final inspection

Before each batch of products leaves the factory, a final review of appearance and dimensions is conducted to ensure 100% compliance with customer requirements.

Packaging

We will use inner paper tubes, waterproof paper, plastic film, plywood boxes and pallets for packaging to prevent damage to the goods during transportation.

Shipment

We will cooperate with reliable freight forwarders, closely monitor the logistics information of each batch of goods, and track the delivery status of customers in real time. Ensuring the safe and efficient delivery of each batch of wire mesh products to our customers is the principle we have long pursued.

Learn More >

Nickel Wire Mesh Certificates

Guangtong has obtained a comprehensive suite of authoritative international credentials, including ISO 9001, ISO 45001, ISO 14001, IATF 16949 Automotive Quality Management System, and AEO Customs Certification. Our rigorous quality management and standardized production processes fully comply with global industrial and export requirements.
