Mild Steel Wire Mesh

Mild steel wire mesh is a metallic netting fabricated from low-carbon steel wire as the raw material, characterized by cost-effectiveness and structural stability. It is extensively employed in the rubber industry, plastics industry, and grain filtration processes.

Inquire Now >> Next Product >>

Product Details

Technical Specifications

Customized Craftsmanship

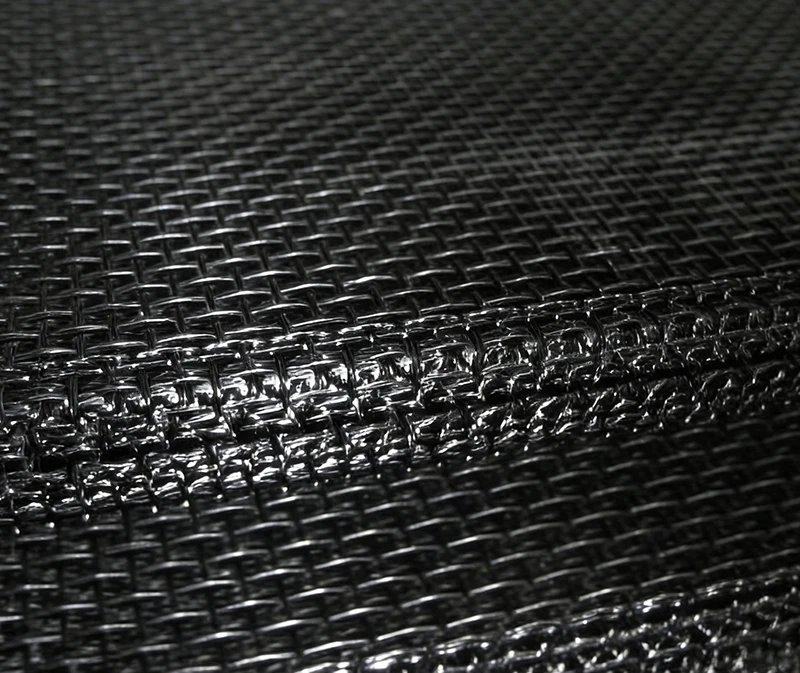

Mild Steel Wire Mesh

Mild steel wire mesh, also referred to as iron wire mesh, is a type of metal mesh manufactured by drawing, weaving, or welding low-carbon steel as the raw material. It is characterized by its cost-effectiveness, excellent toughness, ease of processing, and suitability for galvanization, making it the most widely utilized and versatile metal wire mesh across various applications. This product is extensively employed in the rubber industry, plastics industry, and grain filtration processes. Guangtong offers customized options in terms of different shapes and surface treatments. Additionally, to meet industry-specific requirements for filtration efficiency or aperture opening ratios, we provide custom-length cutting services based on order quantities.

Mild Steel Wire Mesh Surface Treatment

Electroplating:

Produces a relatively glossy surface finish but offers limited corrosion resistance.

Hot-dip galvanizing:

Provides relatively superior anti-corrosion performance.

PVC/Dip coating:

Encapsulates the substrate with a plastic layer, enhancing both corrosion resistance and aesthetic appeal to a certain extent.

Epoxy spraying:

Forms a dense coating on the surface, delivering superior corrosion resistance.

Mild Steel Wire Mesh Complete Range Weaving Techniques

Precision Weaving

Special Weaves

Plain Weave

The plain weave mesh features a warp-weft interlacing structure, where each warp wire passes alternately over and under the weft wire at a 90-degree vertical angle, ensuring uniform and regular diameters of both warp and weft wires as well as consistent mesh openings.

Twill Weave

In twill weave, each warp wire alternately passes over two and under two weft wires, with each weft wire following the same pattern over two and under two warp wires. The warp and weft diameters are identical, resulting in a continuous parallel diagonal pattern.

Dutch Weave

Dutch weave employs thicker warp wires and finer weft wires. The weft wires alternate over and under pairs of warp wires, forming a fine mesh in one direction and a coarse mesh in the other, ultimately producing a tight, conical or wedge-shaped mesh surface.

Reverse Dutch Weave

Reverse Dutch weave adopts the opposite configuration of the Dutch weave, and utilizes fine warp wires and thick weft wires to form triangular horizontal pores.

5-Heddle Weave

Each warp wire interlaces alternately over and under each weft wire at a 90-degree angle, with identical diameters for both warp and weft wires and uniform, regularly structured apertures.

Herringbone Weave

Herringbone weave is a specialized variant of twill weave. Depending on the mesh width and practical application, the direction of the twill pattern reverses at intervals such as 20, 50, 100, 200, or 500 millimeters, creating a pattern resembling a herringbone skeleton.

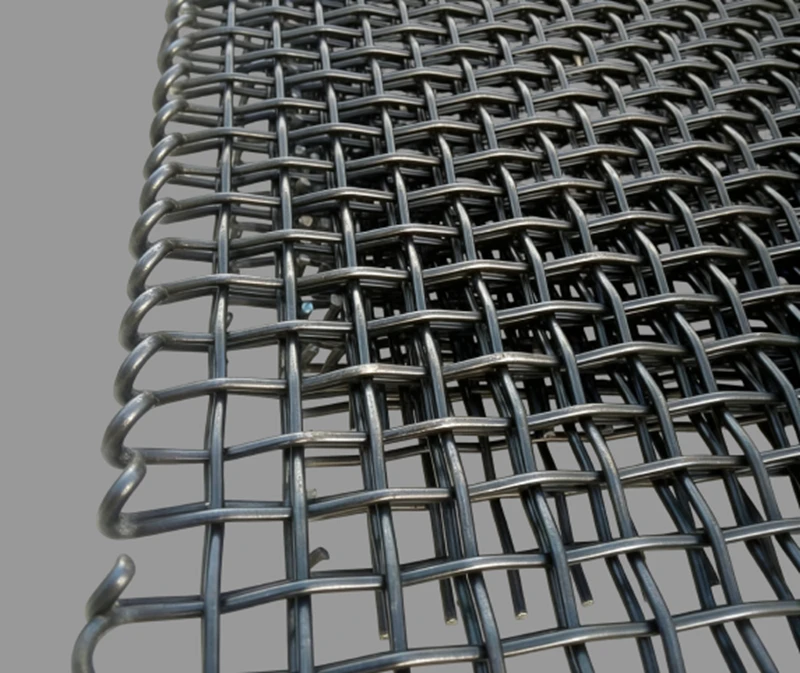

Crimped Weave

Crimped weave utilizes pre-embossed wires that are interlocked or nested to form heavy-duty metal meshes. During the crimped process, the wires are precisely bent at specified intervals to ensure an accurately defined mesh structure.

Mild Steel Wire Mesh Features and Advantages

Cost-Effectiveness

Compared with other metal wire meshes, low-carbon steel wire mesh features lower material costs and processing expenses, offering a high cost‑efficiency ratio.

Ease of Processing

Low-carbon steel wire mesh exhibits excellent ductility, high toughness, superior weldability and weaving performance, as well as elevated weld joint strength.

High Mechanical Strength

As a material, composed primarily of iron and carbon, low-carbon steel wire mesh demonstrates exceptional mechanical strength capable of withstanding heavy loads and stresses.

Structural Stability

The welding process used in low-carbon steel wire mesh ensures high tensile strength at welded joints, while the weaving technique yields a uniformly flat surface with tightly interwoven patterns for enhanced structural integrity.

Mild Steel Wire Mesh Packaging

Inner paper tubes

Waterproof paper

Plastic film

Plywood boxes

Pallets

Technical Specifications

Guangtong Mild Steel Wire Mesh Specifications
Mild Steel Wire Mesh, Plain Woven, Square Opening
Mesh	Wire Dia.( mm)	Opening (mm)
8	0.71	2.47
10	0.65	1.89
12	0.6	1.52
14	0.5	1.31
16	0.4	1.19
20	0.4	0.87
24	0.35	0.71
30	0.3	0.55
40	0.25	0.39
50	0.2	0.31
60	0.17	0.25
80X70	0.135
100X90	0.11

Mild Steel Wire Cloth, Dutch Weave
Mesh	Wire Dia. (mm)
12X64	0.58/0.64
14X88	0.50/0.33
24X110	0.36/0.25
30X150	0.23/0.18
40X200	0.18/0.13

Mild Steel Wire Mesh Process Technology

Slotting

Laser Cutting

Stamping

Binding/Framing

Forming

Welding

Sintered

Pleated

Molding

Custom Design

Learn More >

Mild Steel Wire Mesh Deep-processing Products

We can produce filter assemblies with non-standard sizes, special shapes, and composite structures according to customer drawings or samples.

Stainless Steel Pleated Filter Cartridge

Sintered Stainless Steel Tube

Cylindrical Mesh Filter

Stainless Steel Pre-filter

Perforated Metal Tube

Wire Mesh Filter Discs

Leaf Disc Filter

Extruder Screens

Wedge Wire Filter

Stainless Steel Cone Filter

Stainless Steel Filter Basket

Mild Steel Wire Mesh Quality Control System

Raw material control

Spectrometer inspection upon entry to ensure that the stainless steel wire meets the requirements;

Production process inspection

Using precision calipers, tool microscopes, CNC equipment, etc., to strictly test the mesh size, wire diameter, opening rate, weight, and other parameters is conducted.

Weaving quality inspection

Ensure that the mesh surface is flat, free of broken or loose wires, and the weaving is uniform.

Final inspection

Before each batch of products leaves the factory, a final review of appearance and dimensions is conducted to ensure 100% consistency with customer requirements.

Packaging

We will use inner paper tubes, waterproof paper, plastic film, plywood boxes and pallets for packaging to prevent damage to the goods during transportation.

Shipment

We will cooperate with reliable freight forwarders, closely monitor the logistics information of each batch of goods, and track the delivery status of customers in real time. Ensuring the safe and efficient delivery of each batch of wire mesh products to our customers is the principle we have long pursued.

Learn More >

Mild Steel Wire Mesh Certificates

Guangtong has obtained a comprehensive suite of authoritative international credentials, including ISO 9001, ISO 45001, ISO 14001, IATF 16949 Automotive Quality Management System, and AEO Customs Certification. Our rigorous quality management and standardized production processes fully comply with global industrial and export requirements.
