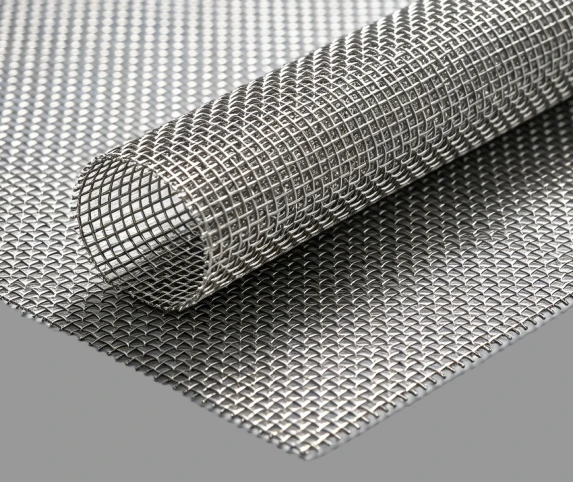

Inconel Wire Mesh

Inconel wire mesh, also known as Inconel alloy wire mesh or nickel-based super alloy wire mesh, is a type of metal mesh specifically designed for harsh conditions such as extreme temperatures and strong corrosion.

Inquire Now >> Next Product >>

Product Details

Technical Specifications

Customized Craftsmanship

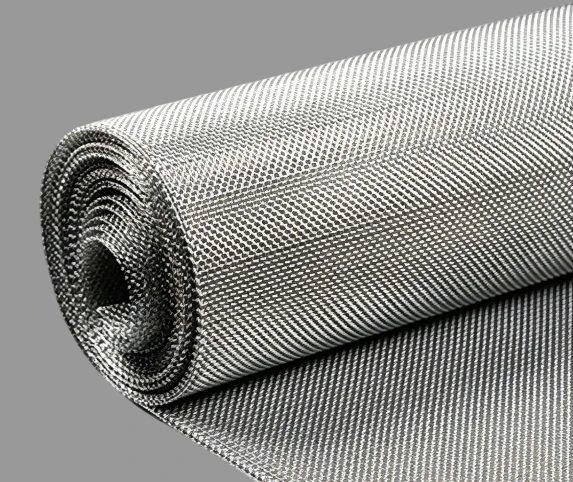

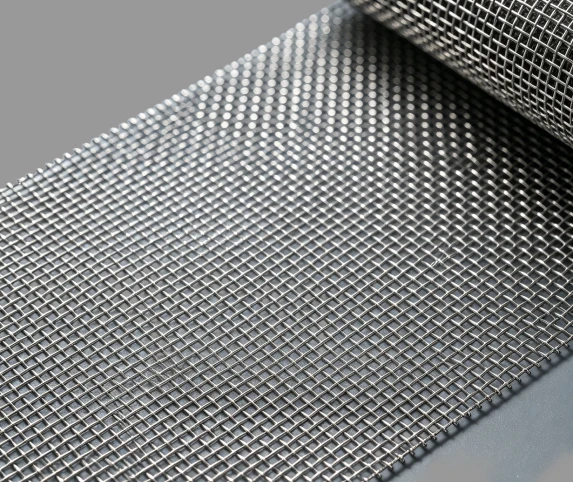

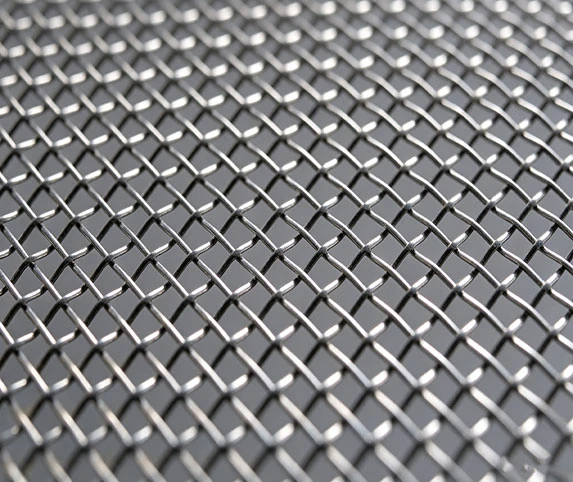

Inconel Wire Mesh

Inconel wire mesh is a nickel-based alloy woven wire mesh made by adding elements such as molybdenum, niobium, and iron to a nickel-chromium base. Compared to stainless steel mesh and pure nickel mesh, it offers superior high-temperature corrosion resistance, making it a commonly used filtration and screening material in extreme industrial conditions. Guangtong supports customized options for Inconel wire mesh in various shapes and surface treatments. To meet specific requirements from different industries regarding filtration efficiency or open area, we also provide custom cutting services based on order quantities. If you would like more details about Inconel wire mesh or potential collaboration opportunities, please feel free to contact us.

Inconel Wire Mesh Complete Range Weaving Techniques

Precision Weaving

Special Weaves

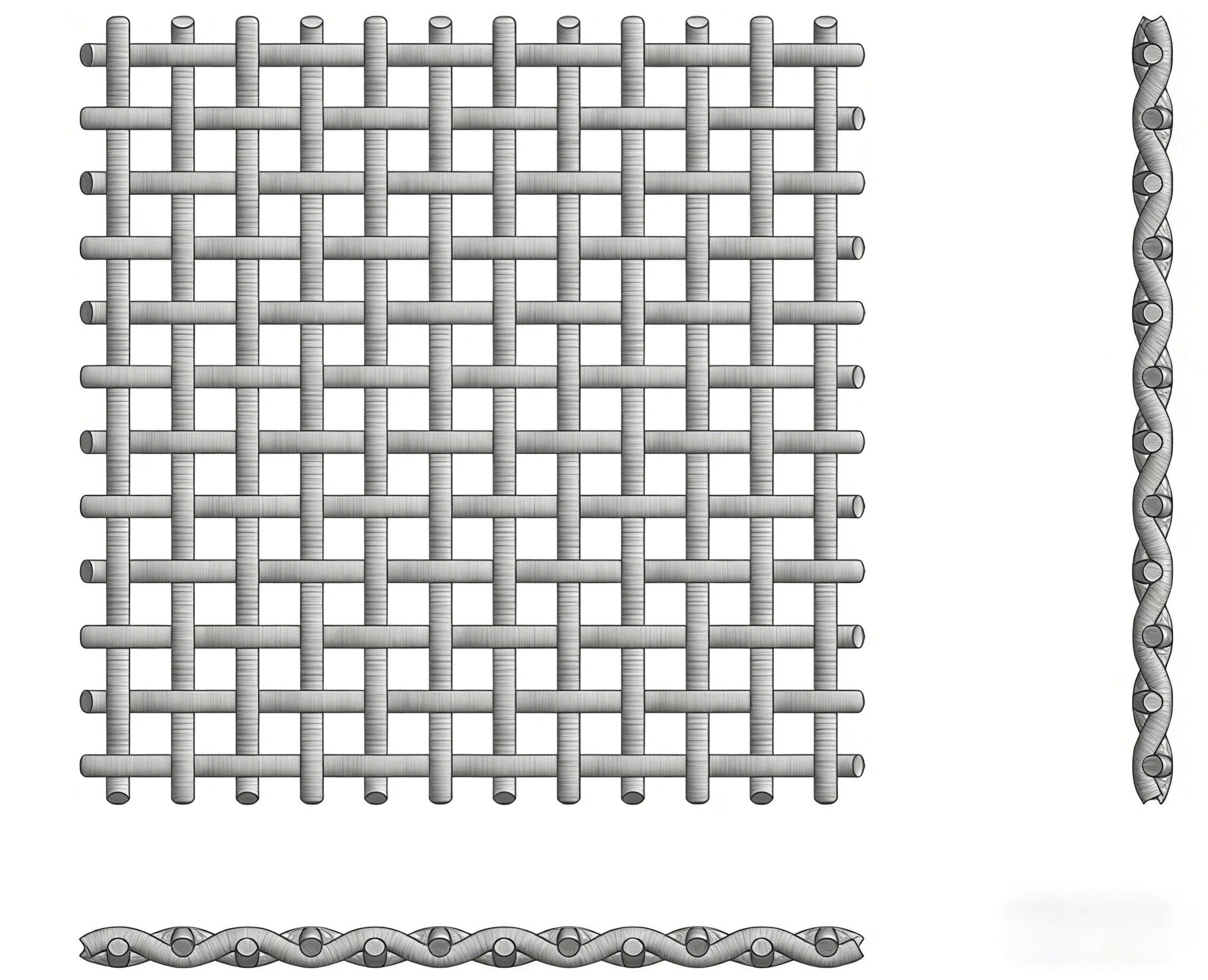

Plain Weave

The plain weave mesh features a warp-weft interlacing structure, where each warp wire passes alternately over and under the weft wires at a 90-degree vertical angle, ensuring uniform and regular diameters of both warp and weft threads as well as consistent mesh openings.

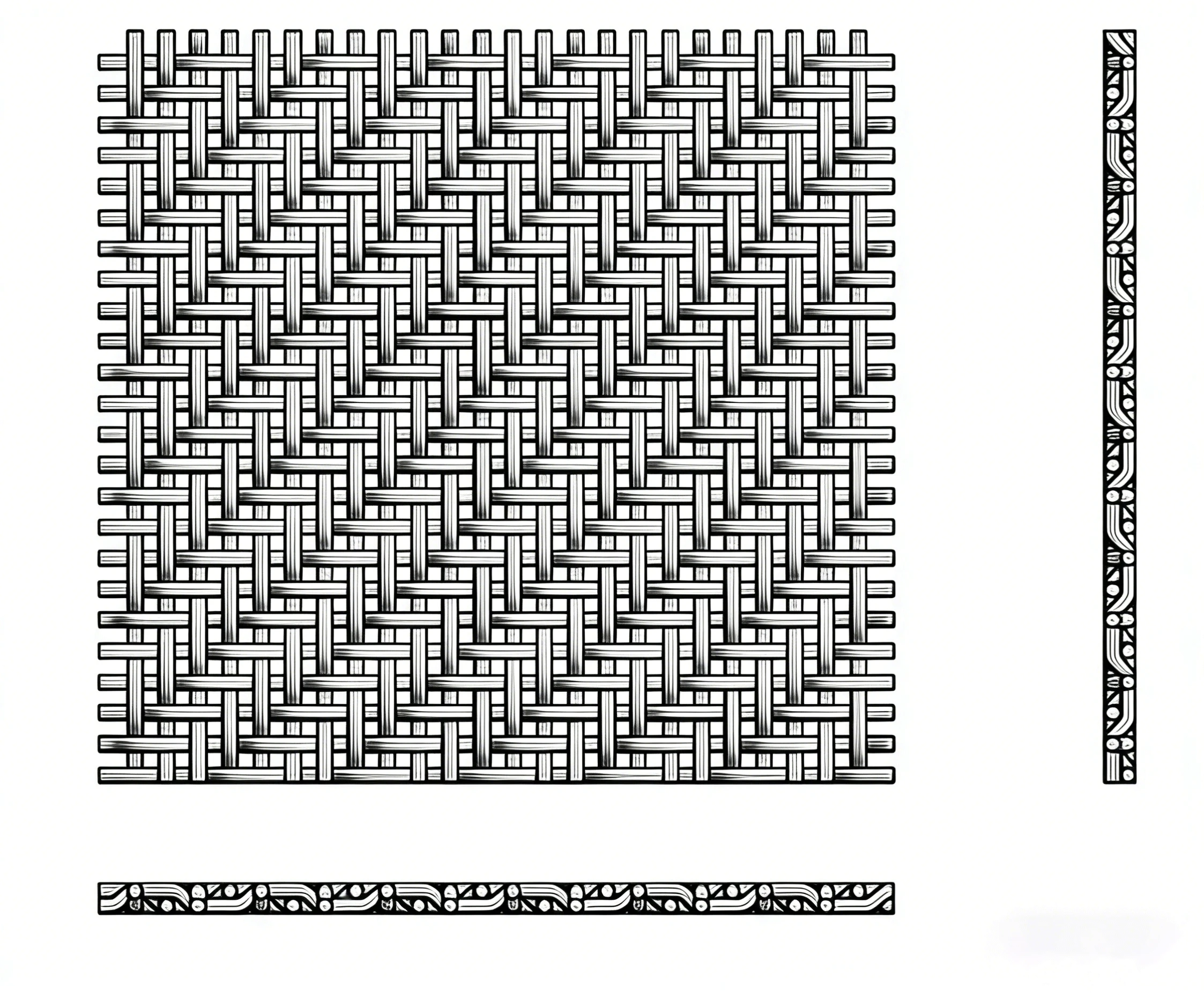

Twill Weave

In twill weave, each warp wire alternately passes over two and under two weft wires, with each weft yarn following the same pattern over two and under two warp wires. The warp and weft diameters are identical, resulting in a continuous parallel diagonal pattern.

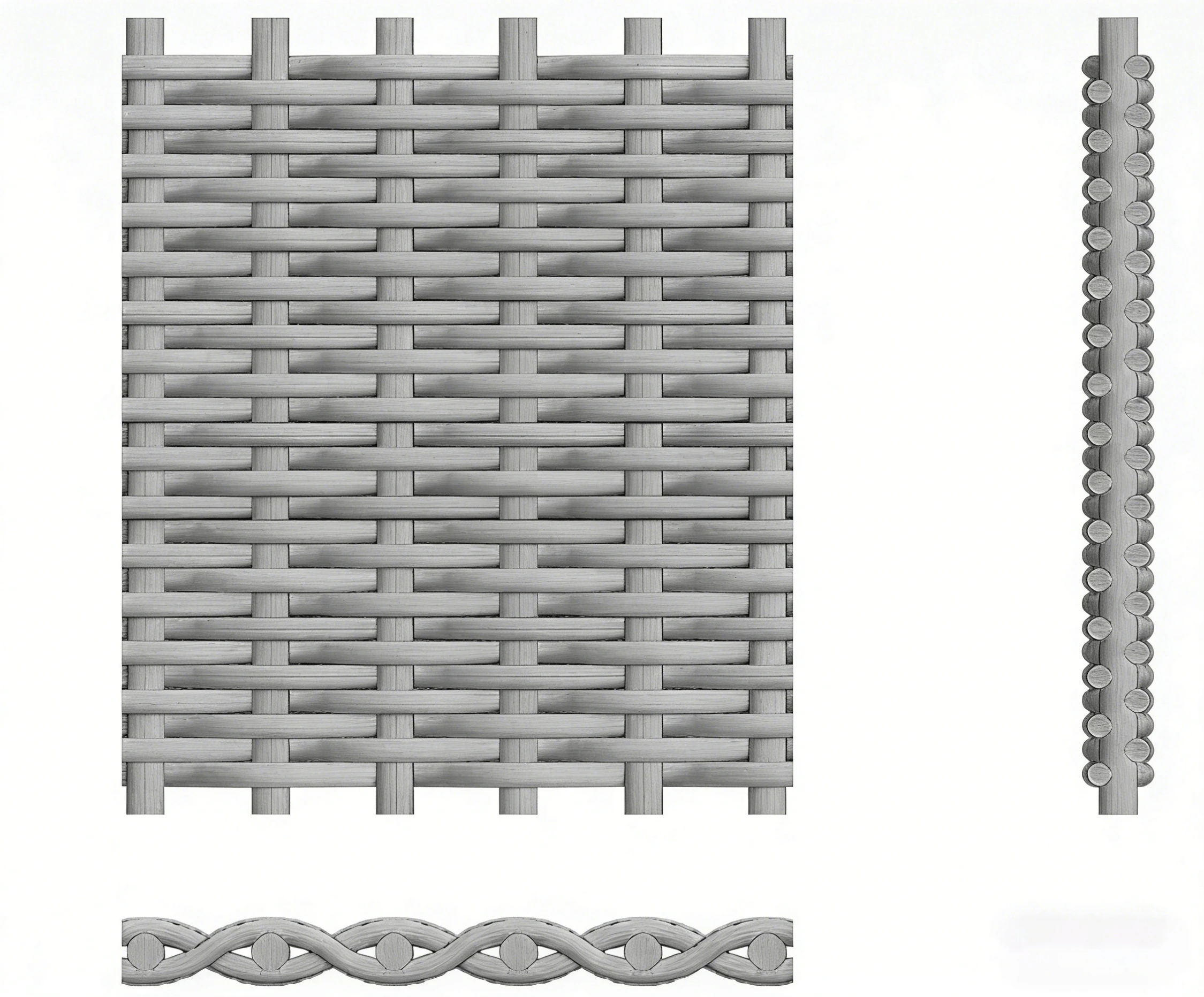

Dutch Weave

Dutch weave employs thicker warp wires and finer weft wires. The weft wires alternate over and under pairs of warp wires, forming a fine mesh in one direction and a coarse mesh in the other, ultimately producing a tight, conical or wedge-shaped mesh surface.

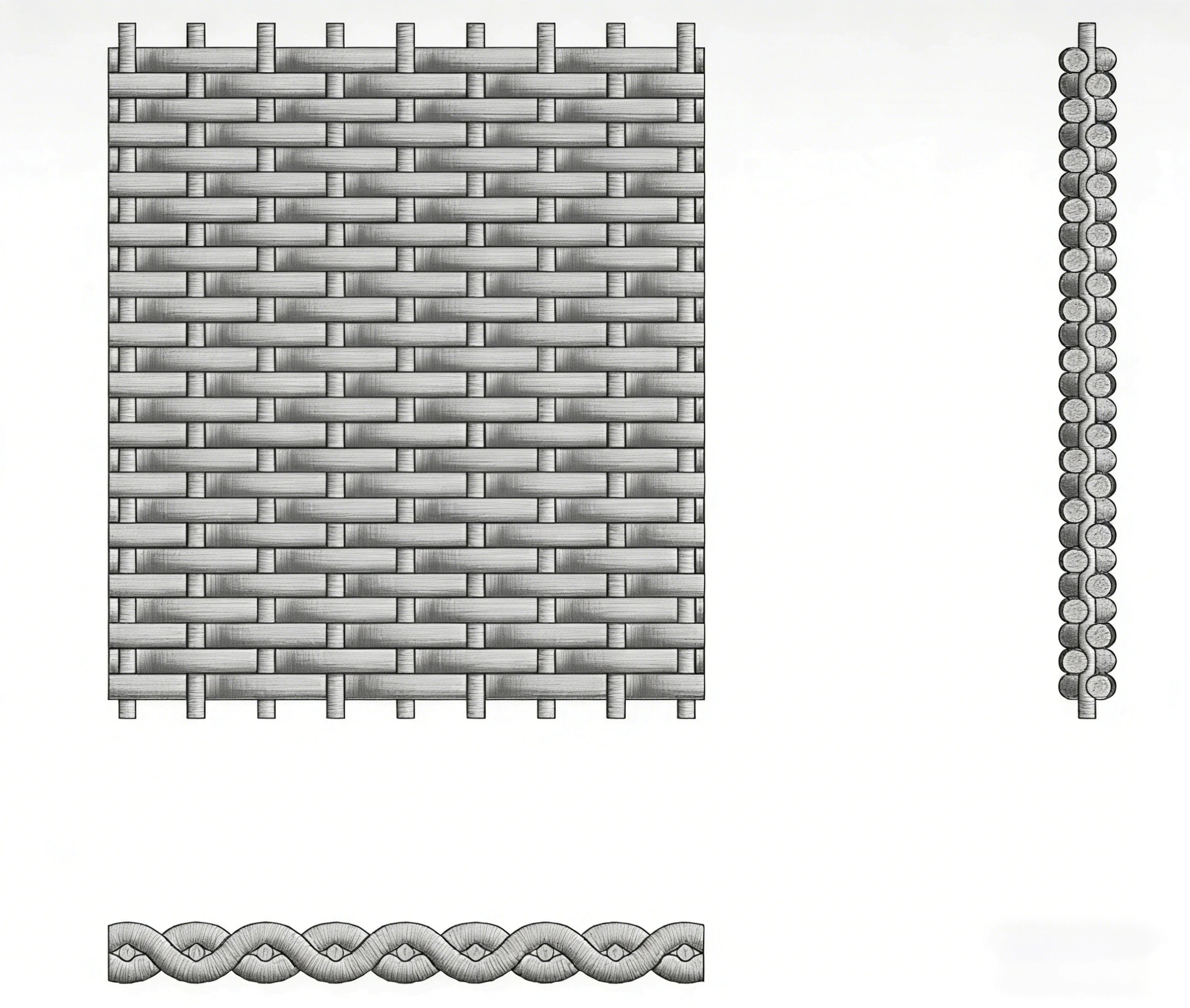

Reverse Dutch Weave

Reverse dutch weave adopts the opposite configuration of the Dutch weave, utilizing fine warp wires and thick weft wires to form triangular horizontal pores.

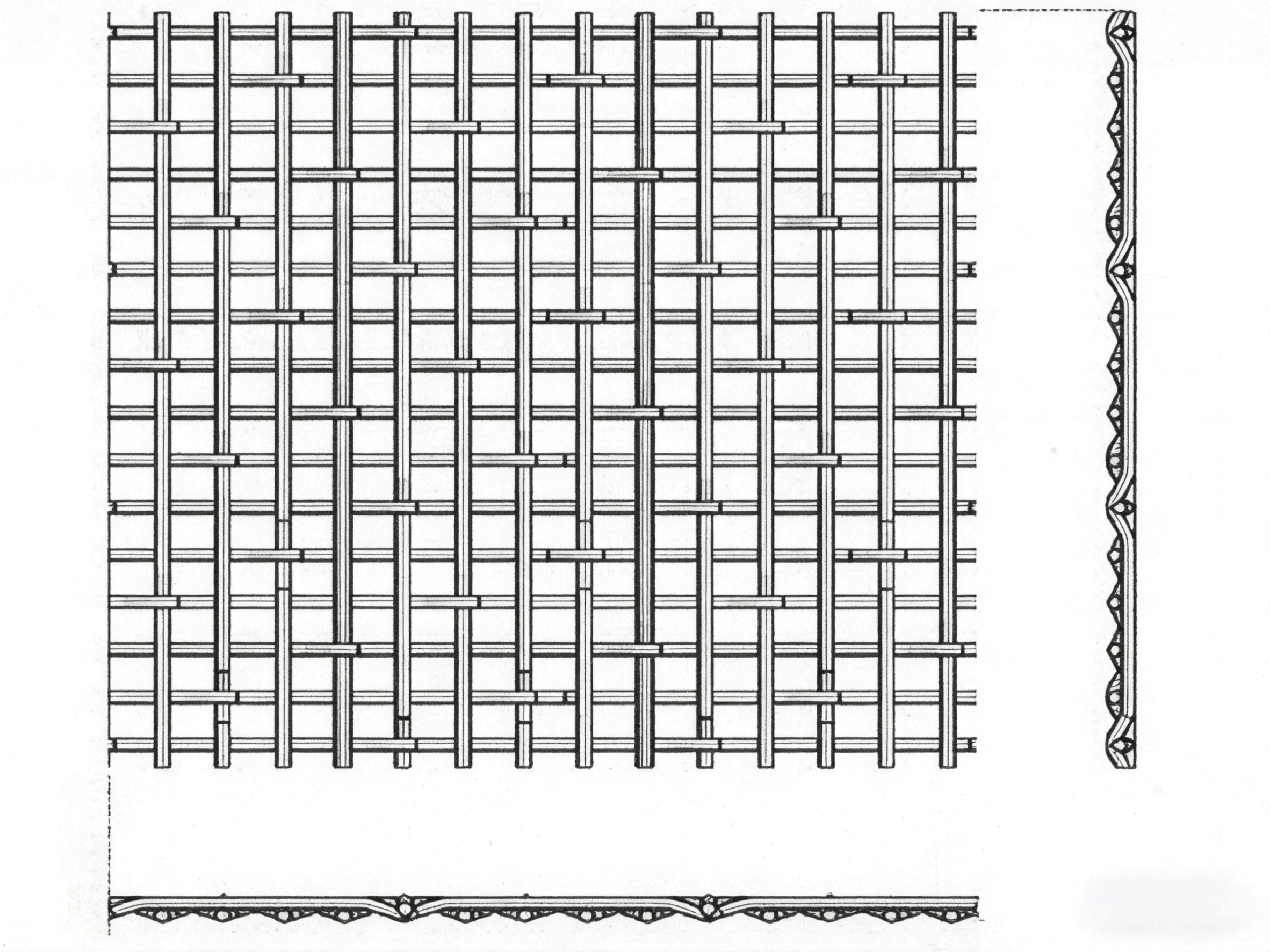

5-Heddle Weave

Each warp wire interlaces alternately over and under each weft wire at a 90-degree angle, with identical diameters for both warp and weft wires and uniform, regularly structured apertures.

Herringbone Weave

Herringbone weave is a specialized variant of twill weave. Depending on the mesh width and practical application, the direction of the twill pattern reverses at intervals such as 20, 50, 100, 200, or 500 millimeters, creating a pattern resembling a herringbone skeleton.

Crimped Weave

Crimped weave utilizes pre-embossed wires that are interlocked or nested to form heavy-duty metal meshes. During the crimped process, the wires are precisely bent at specified intervals to ensure an accurately defined mesh structure.

Inconel Wire Mesh Features and Advantages

Resistant to extreme temperatures

The Inconel wire mesh can maintain strong mechanical strength even under extreme temperatures. It will not become brittle and fall off during repeated heating or cooling, and can ensure long-term stable operation.

Strong corrosion resistance

It has strong resistance to corrosive environments such as strong alkali, chloride ions, sulfides, and high-temperature molten salts, and will not easily perforate or crack.

Good processability

Excellent ductility, capable of being bent, stamped, welded, folded, sintered, etc., facilitating the production of various industrial components, with excellent processing performance.

Remarkable non-magnetism

Inconel wire mesh is inherently non-magnetic and is suitable for special applications such as electromagnetic shielding and precision instruments.

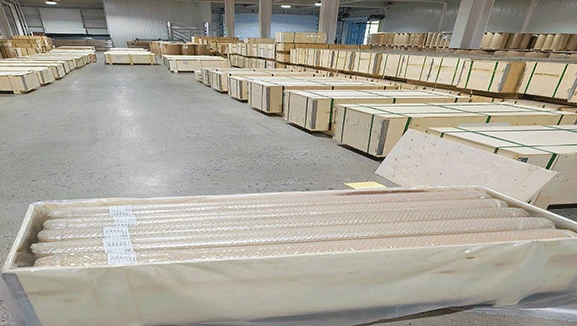

Inconel Wire Mesh Packaging

Inner paper tubes

Waterproof paper

Plastic film

Plywood cases

Pallets

Technical Specifications

Guangtong Inconel Wire Mesh Specifications
Alloy	Key Properties	Wire Diameter	Mesh Count	Max Temperature	Forms Available	Best For
Inconel 600	Resists oxidation & chlorides	0.025 mm (ultra-fine) to 6 mm (heavy-duty)	2 to 500+ mesh (openings per inch)	Up to 2200°F (1200°C)	Rolls, sheets, custom-cut panels, perforated sheets, expanded metal, heat treating baskets or trays.	Furnace components, chemical processing
Inconel 601	Superior oxidation resistance	0.025 mm (ultra-fine) to 6 mm (heavy-duty)	2 to 500+ mesh (openings per inch)	Up to 2200°F (1200°C)	Rolls, sheets, custom-cut panels, perforated sheets, expanded metal, heat treating baskets or trays.	Heat treatment fixtures, radiant tubes
Inconel 625	High strength, corrosion & fatigue resistance	0.025 mm (ultra-fine) to 6 mm (heavy-duty)	2 to 500+ mesh (openings per inch)	Up to 2200°F (1200°C)	Rolls, sheets, custom-cut panels, perforated sheets, expanded metal, heat treating baskets or trays.	Aerospace, marine, nuclear
Inconel 690	superior oxidation & corrosion resistance	0.025 mm (ultra-fine) to 6 mm (heavy-duty)	2 to 500+ mesh (openings per inch)	Up to 2200°F (1200°C)	Rolls, sheets, custom-cut panels, perforated sheets, expanded metal, heat treating baskets or trays.	corrosive, oxidizing, or nuclear environments
Inconel 718	Age-hardenable, extreme strength	0.025 mm (ultra-fine) to 6 mm (heavy-duty)	2 to 500+ mesh (openings per inch)	Up to 2200°F (1200°C)	Rolls, sheets, custom-cut panels, perforated sheets, expanded metal, heat treating baskets or trays.	Jet engines, gas turbines
The common types of Inconel wire include Inconel 750, Inconel 800, and Inconel 825.

Mesh Count (Mesh)	Wire Diameter (mm)	Pore Diameter (mm)	Percentage of Opening (Effective %)
4	1.2	5.15	65.8
5	1.0 or 0.711	4.08 or 4.36	64.5 or 76
8	0.5 or 0.559	2.67 or 2.5	70.7 or 67
10	0.5 or 0.46	2.04 or 2.08	64.5 or 67
20	0.25 or 0.315	1.02 or 0.95	64.5 or 58
40	0.19 or 0.152	0.45 or 0.44	50.2 or 46
80	0.12	0.197	39
100	0.1	0.154	37
200	0.05 or 0.041	0.077 or 0.086	36.7 or 46

Inconel Wire Mesh Process Technology

Slotting

Laser Cutting

Stamping

Binding/Framing

Forming

Welding

Sintered

Pleated

Molding

Custom Design

Learn More >

Inconel Wire Mesh Deep-processing Products

We can produce filter assemblies with non-standard sizes, special shapes, and composite structures according to customer drawings or samples.

Stainless Steel Pleated Filter Cartridge

Sintered Stainless Steel Tube

Cylindrical Mesh Filter

Stainless Steel Pre-filter

Perforated Metal Tube

Wire Mesh Filter Discs

Leaf Disc Filter

Extruder Screens

Wedge Wire Filter

Stainless Steel Cone Filter

Stainless Steel Filter Basket

Inconel Wire Mesh Quality Control System

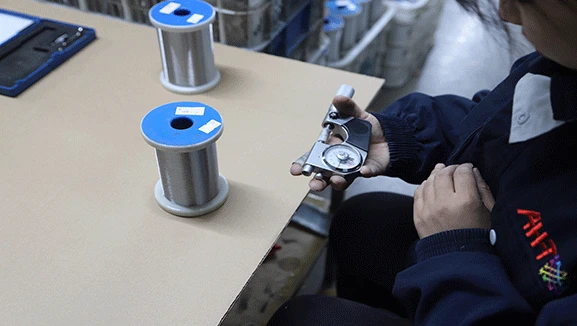

Raw material control

Spectrometer inspection upon entry to ensure that the Inconel wire meets requirements.

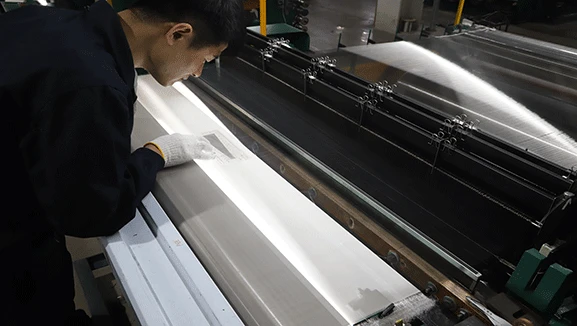

Production process inspection

Using precision calipers, tool microscopes, CNC equipment, etc., to strictly test the mesh size, wire diameter, opening area, and weight, etc.

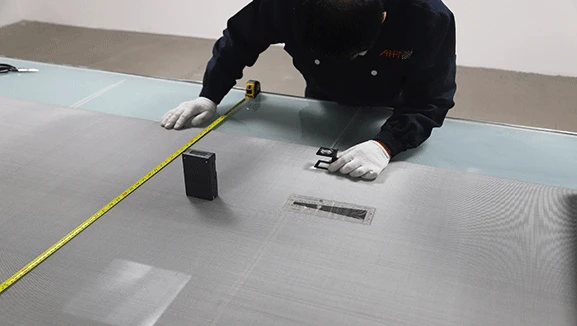

Weaving quality inspection

Ensure that the mesh surface is flat, free of broken or loose wires, and the weaving is uniform.

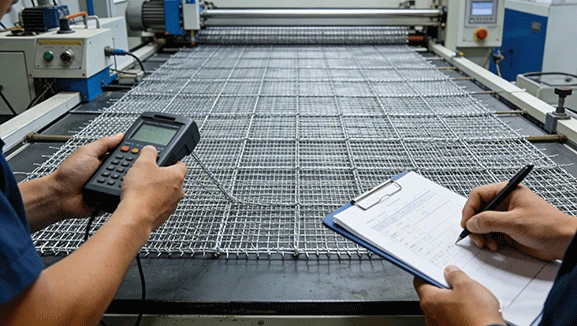

Final inspection

Before each batch of products leaves the factory, a final inspection of appearance and dimensions is conducted to ensure full compliance with customer requirements.

Packaging

We will use inner paper tubes, waterproof paper, plastic film, plywood cases and pallets for packaging to prevent damage to the goods during transportation.

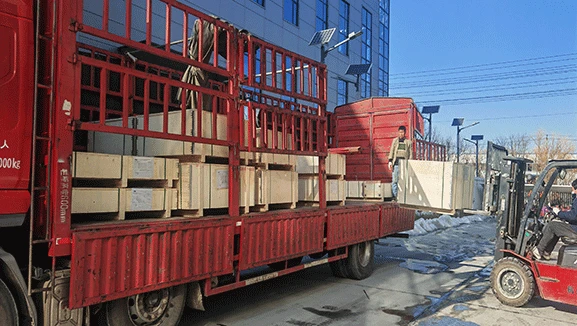

Shipment

We will cooperate with reliable freight forwarders, closely monitor the logistics information of each batch of goods, and track the delivery status of customers in real time. Ensuring the safe and efficient delivery of each batch of wire mesh products to our customers is the principle we have long pursued.

Learn More >

Inconel Wire Mesh Certificates

Guangtong has obtained a comprehensive suite of authoritative international credentials, including ISO 9001, ISO 45001, ISO 14001, IATF 16949 Automotive Quality Management System, and AEO Customs Certification. Our rigorous quality management and standardized production processes fully comply with global industrial and export requirements.
