Hastelloy Wire Mesh

Hastelloy alloy wire mesh is fabricated from premium Hastelloy nickel-based corrosion-resistant alloy wires via professional weaving processes, functioning as a high-end industrial material for corrosion-resistant filtration and screening.

Inquire Now >> Next Product >>

Product Details

Technical Specifications

Customized Craftsmanship

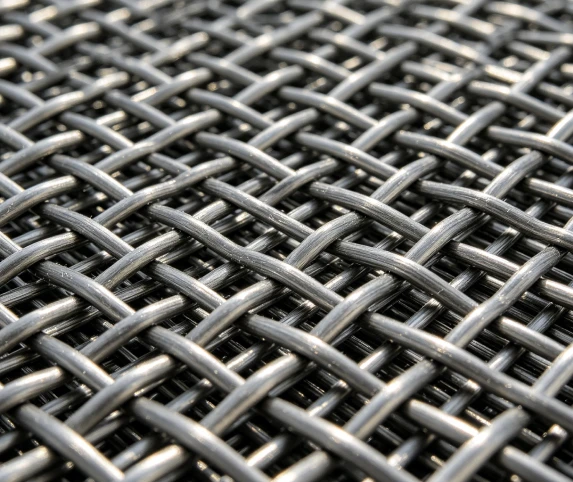

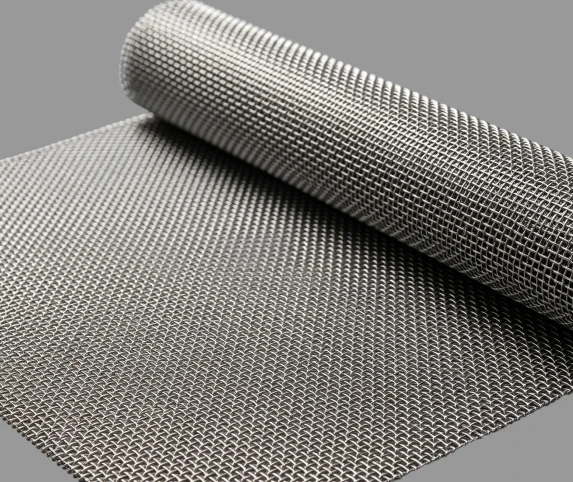

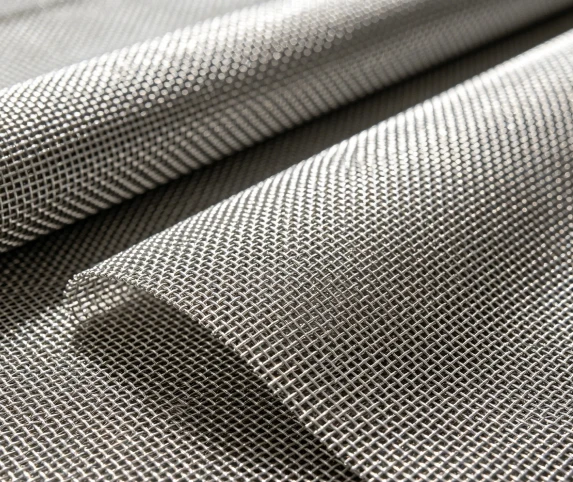

Hastelloy Wire Mesh

Hastelloy alloy wire mesh belongs to a series of nickelbased superalloys composed of nickel, molybdenum and chromium. Renowned for its excellent chemical stability, high strength, favorable mechanical properties and hightemperature resistance, it maintains stable performance in a wide range of harsh and extreme environments, making it an ideal material for demanding woven metal mesh applications. Hastelloy alloy wire mesh is commonly used in chemical processing, petroleum, natural gas refining, aerospace and many other industrial sectors with stringent corrosionresistance requirements. As a professional woven metal wire mesh manufacturer, Guangtong offers custom options for various shapes and surface treatments. To meet industryspecific requirements for filtration efficiency or openarea percentage, we also provide customlength cutting services subject to order quantities.

Hastelloy Wire Mesh Complete Range Weaving Techniques

Precision Weaving

Special Weaves

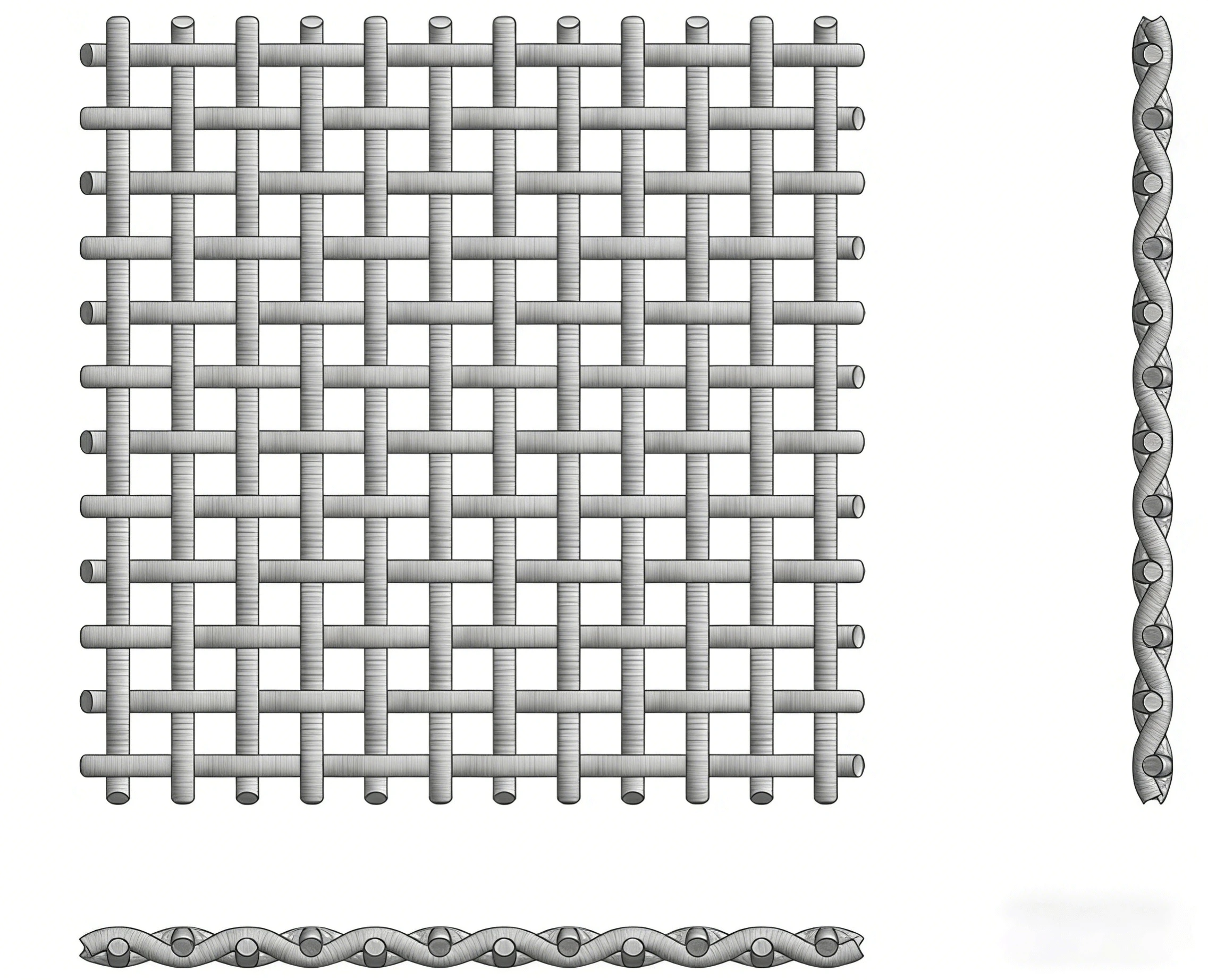

Plain Weave

The plain weave mesh features a warp-weft interlacing structure, where each warp wire passes alternately over and under the weft wires at a 90-degree vertical angle, ensuring uniform and regular diameters of both warp and weft threads as well as consistent mesh openings.

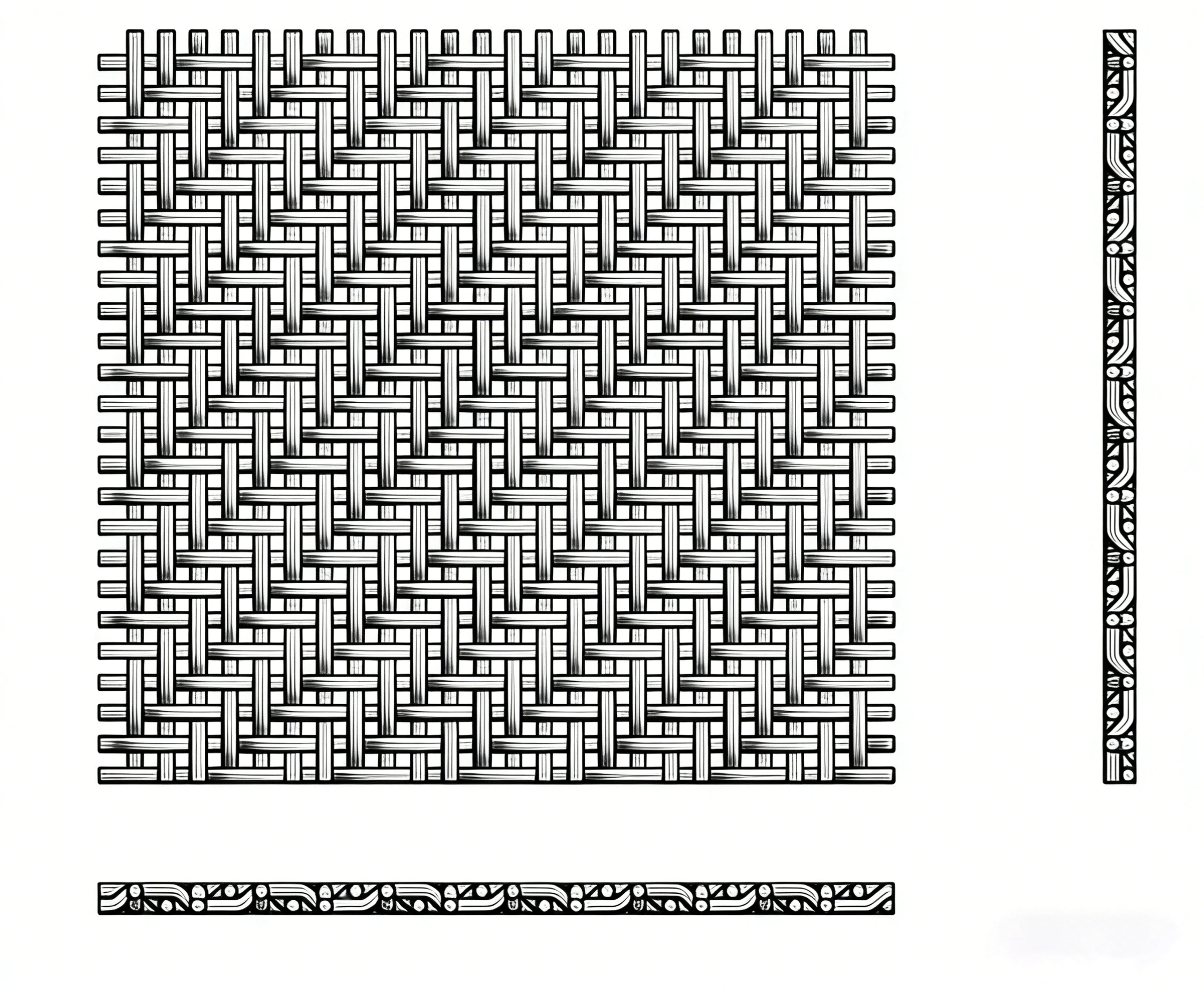

Twill Weave

In twill weave, each warp wire alternately passes over two and under two weft wires, with each weft yarn following the same pattern over two and under two warp wires. The warp and weft diameters are identical, resulting in a continuous parallel diagonal pattern.

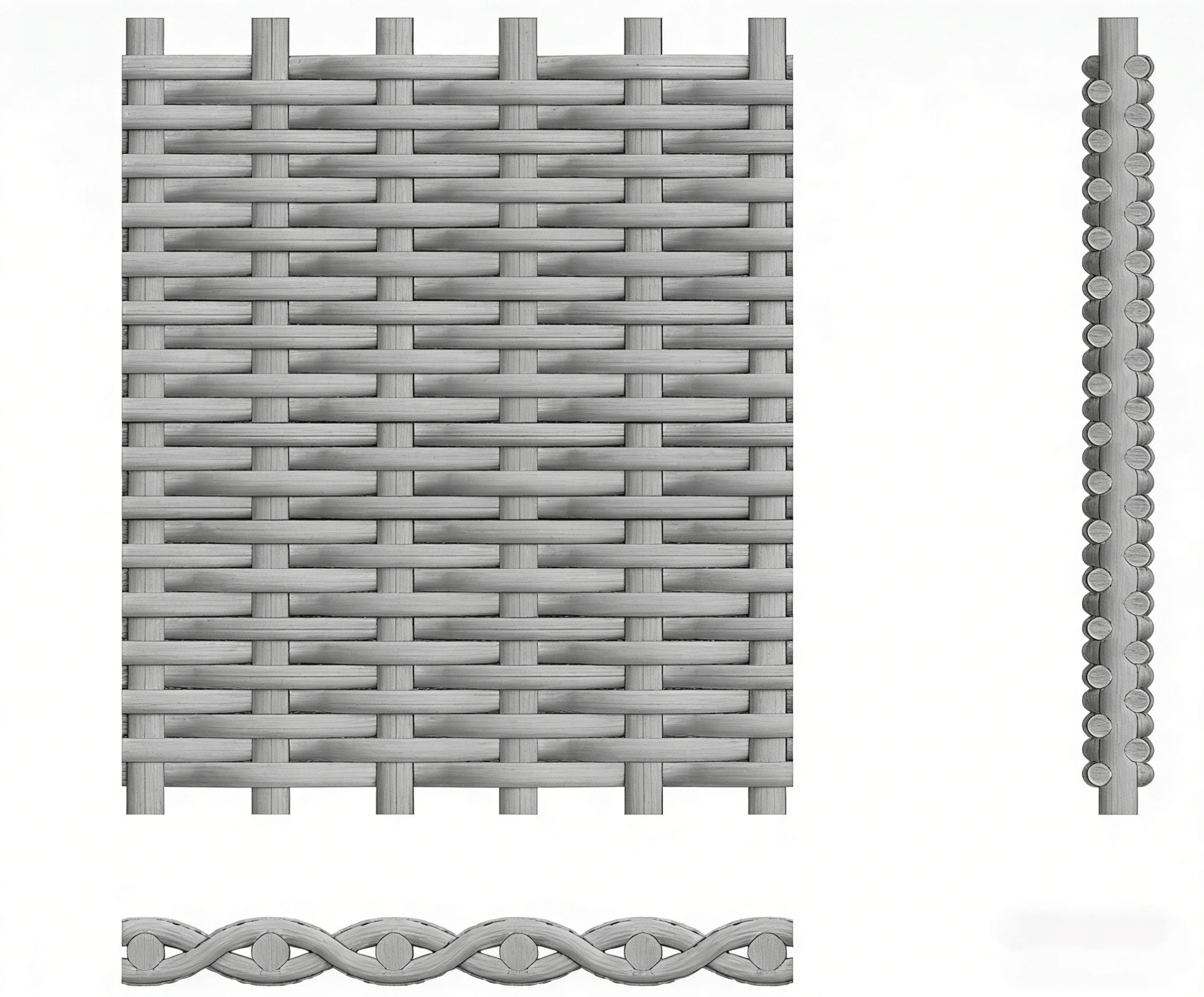

Dutch Weave

Dutch weave employs thicker warp wires and finer weft wires. The weft wires alternate over and under pairs of warp wires, forming a fine mesh in one direction and a coarse mesh in the other, ultimately producing a tight, conical or wedge-shaped mesh surface.

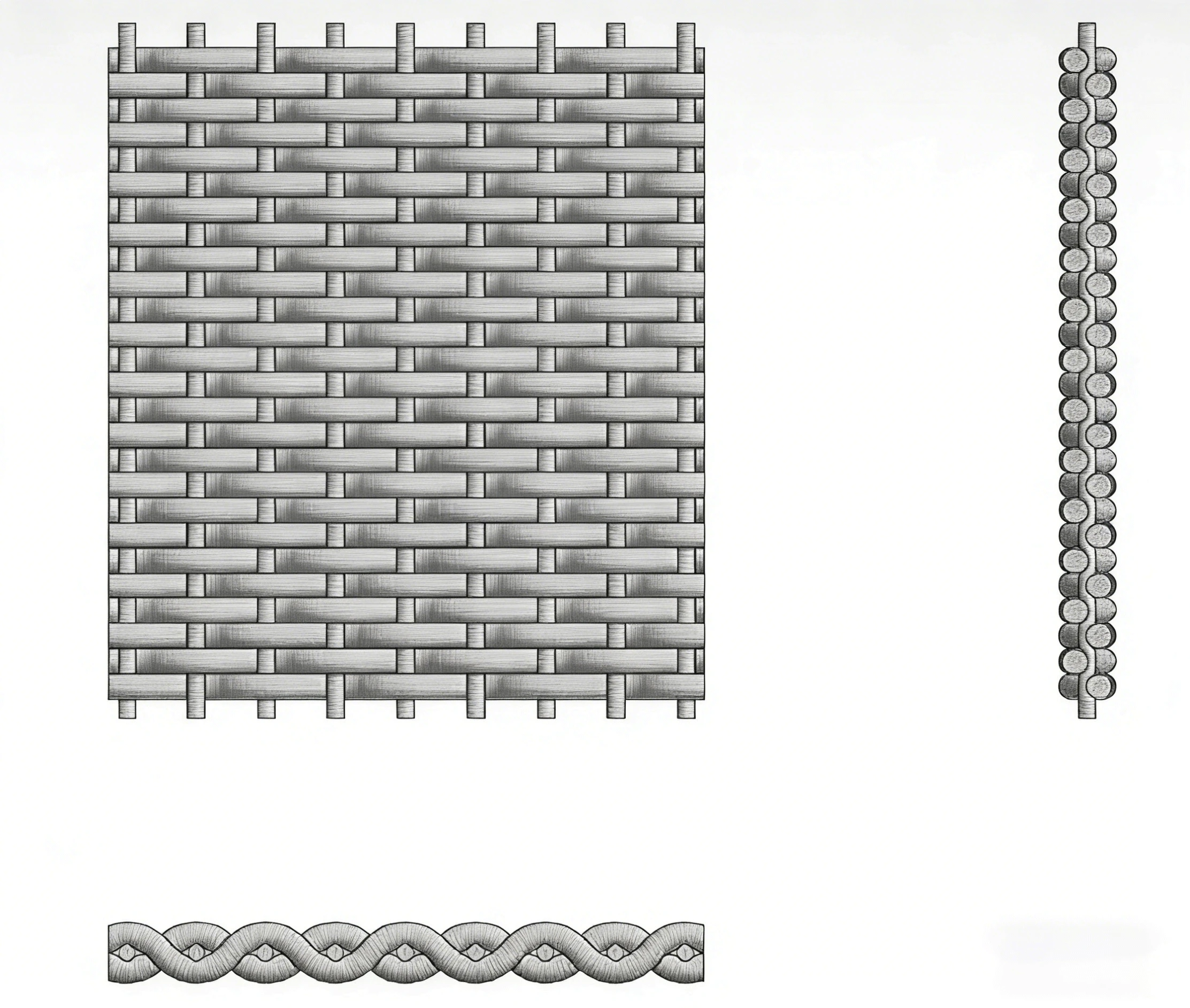

Reverse Dutch Weave

Reverse dutch weave adopts the opposite configuration of the Dutch weave, utilizing fine warp wires and thick weft wires to form triangular horizontal pores.

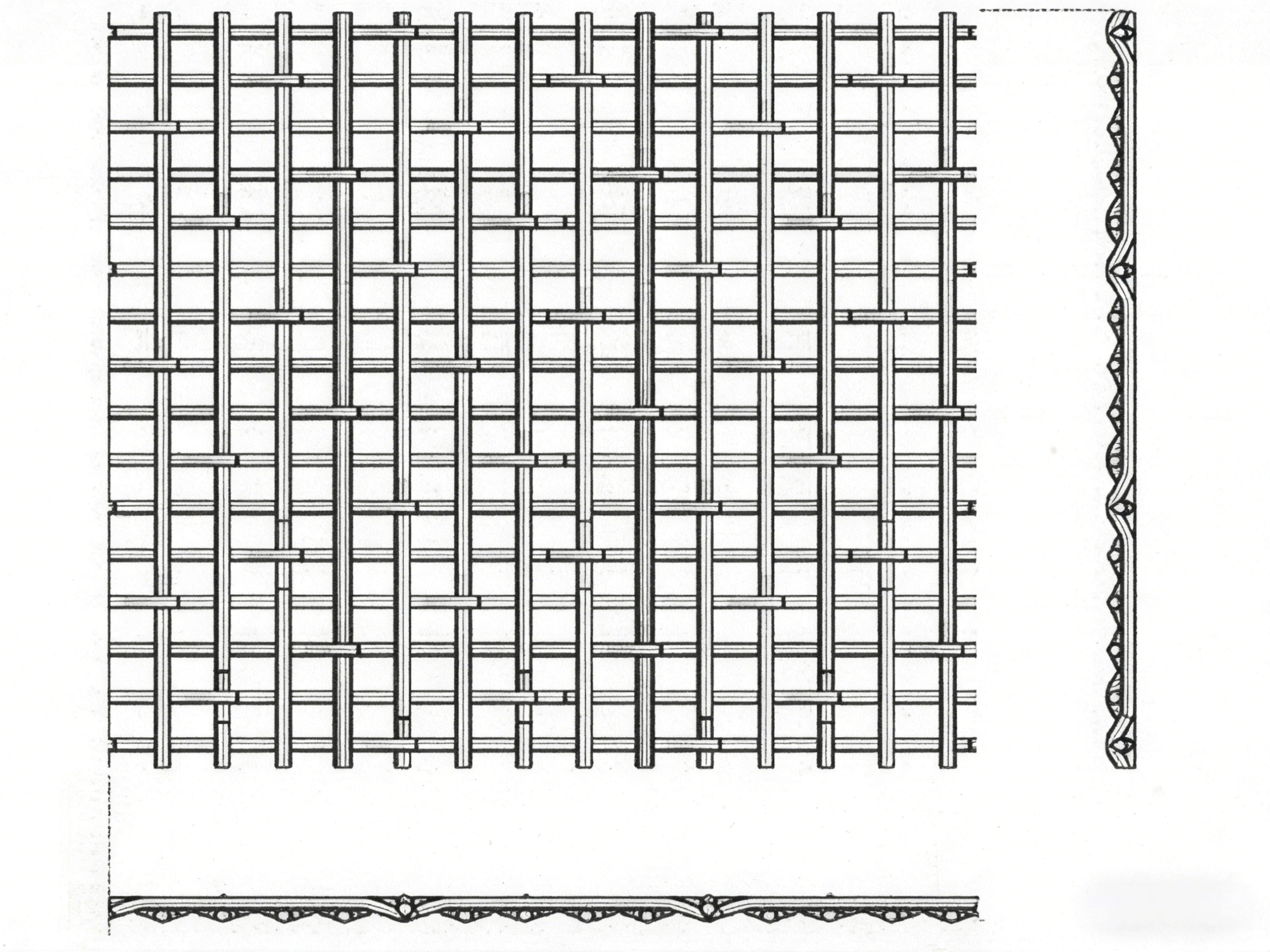

5-Heddle Weave

Each warp wire interlaces alternately over and under each weft wire at a 90-degree angle, with identical diameters for both warp and weft wires and uniform, regularly structured apertures.

Herringbone Weave

Herringbone weave is a specialized variant of twill weave. Depending on the mesh width and practical application, the direction of the twill pattern reverses at intervals such as 20, 50, 100, 200, or 500 millimeters, creating a pattern resembling a herringbone skeleton.

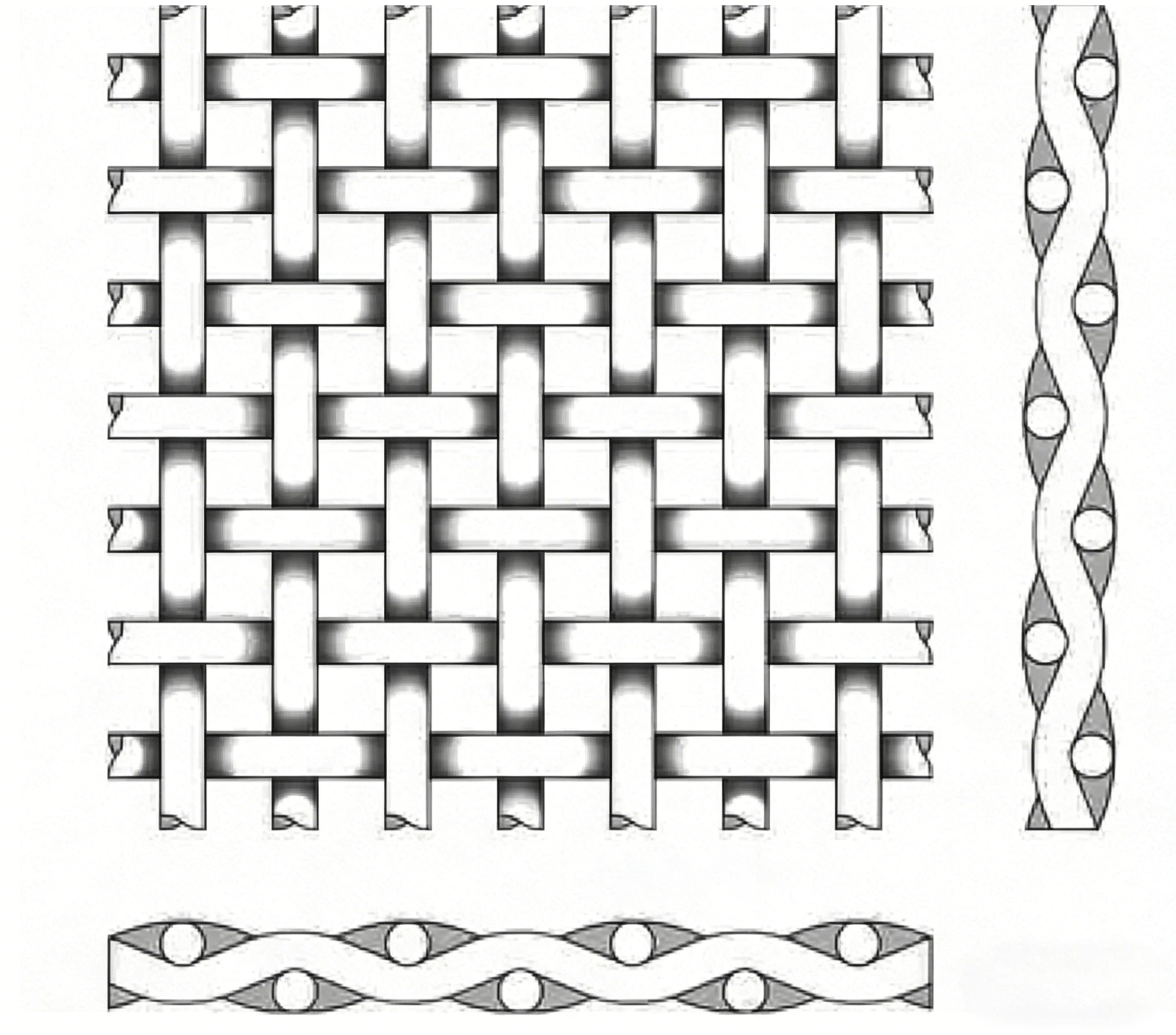

Crimped Weave

Crimped weave utilizes pre-embossed wires that are interlocked or nested to form heavy-duty metal meshes. During the crimped process, the wires are precisely bent at specified intervals to ensure an accurately defined mesh structure.

Hastelloy Wire Mesh Features and Advantages

Superior Corrosion Resistance

Compared with other metal wire meshes, the most prominent advantage of Hastelloy wire mesh is its exceptional resistance to both oxidizing and reducing media. It delivers remarkable performance in complex chemicalprocessing workflows.

Excellent Thermal Stability

Hastelloy wire mesh features outstanding hightemperature performance and longterm thermal stability. It retains material strength and structural integrity under hightemperature conditions.

Good Workability

Boasting high tensile strength and ductility, Hastelloy wire mesh is easy to process and resists deformation and damage.

Long Service Life

With stable material properties and high resistance to corrosion and failure, Hastelloy wire mesh enables consistent longterm operation. It reduces downtime for maintenance and lowers overall operating costs.

Hastelloy Wire Mesh Specification

Chemical Composition of Hastelloy
Type	C(%)	Co(%)	Cr (%)	Cu (%)	Fe (%)	Mn (%)	Mo (%)	Ni(%)	P(%)	S(%)	Si(%)	Sn (%)	V(%)	W(%)
H-B	0.12	2.5	1.00	-	6.0	1.0	26.0-30.0	Rem.	0.01	-	0.03	-	0.6	-
H-C22	0.015	2.5	14.5-20.0	-	2.0-6.0	0.5	12.8-14.5	Rem.	-	0.02	0.08	-	0.35	-
H-C276	0.02	2.5	14.5-16.5	-	4.0-7.0	1.0	15.0-17.0	Rem.	0.03	0.03	0.08	-	0.35	3.0-4.5
H-X	0.08	-	17.0-20.0	1.0	Rem.	2.0	-	34.0-37.0	0.03	0.03	0.75-1.50	0.025	-	-

Guangtong Hastelloy Wire Mesh Specification
Hastelloy B	Item	Mesh (Wires/in.)	Wire Diameter (in.)	Width of Opening (in.)	Open Area (%)
	HB-01	16×16	0.0140	0.0490	60.2
	HB-02	30×30	0.0085	0.0250	55.4
	HB-03	30×30	0.0106	0.0227	46.5
	HB-04	60×60	0.0072	0.0090	30.5
	HB-05	200×200	0.0020	0.0030	36.0
Hastelloy C276	HC276-01	6 × 6	0.0470	0.1200	51.8
	HC276-02	8 × 8	0.0320	0.0930	55.4
	HC276-03	10 × 10	0.0250	0.0750	56.3
	HC276-04	12 × 12	0.0230	0.0600	51.8
	HC276-05	12 × 12	0.0160	0.0670	64.5
	HC276-06	12 × 12	0.0150	0.0680	66.6
	HC276-07	14 × 14	0.0200	0.0510	51.0
	HC276-08	16 × 16	0.0180	0.0450	50.7
	HC276-09	16 × 16	0.0090	0.0535	73.3
	HC276-10	20 × 20	0.0230	0.0270	29.2
	HC276-11	20 × 20	0.0160	0.0340	46.2
	HC276-12	20 × 20	0.0090	0.0410	67.2
	HC276-13	24 × 24	0.0140	0.0280	44.2
	HC276-14	30 × 30	0.0130	0.0200	37.1
	HC276-15	30 × 30	0.0090	0.0240	53.1
	HC276-16	40 × 40	0.0100	0.0150	36.0
	HC276-17	40 × 40	0.0090	0.0160	41.0
	HC276-18	40 × 40	0.0075	0.0180	49.0
	HC276-19	50 × 50	0.0090	0.0110	30.3
	HC276-20	60 × 60	0.0072	0.0090	30.5
	HC276-21	60 × 60	0.0044	0.0123	54.2
	HC276-22	80 × 80	0.0070	0.0060	19.4
	HC276-23	80 × 80	0.0010	0.0085	46.2
	HC276-24	100 × 100	0.0010	0.0060	36.0
	HC276-25	120 × 120 T	0.0040	0.0043	27.0
	HC276-26	180 × 180	0.0020	0.0036	41.0
	HC276-27	200 × 200	0.0023	0.0027	48.0
	HC276-28	200 × 200	0.0020	0.0030	36.0
Hastelloy X	HX-01	10 × 10	0.0250	0.0750	56.3
	HX-02	18 × 18	0.0090	0.0470	70.4
	HX-03	20 × 20	0.0160	0.0340	46.2
	HX-04	50 × 50	0.0030	0.0170	72.3
	HX-05	60 × 60	0.0075	0.0090	30.5

Hastelloy Wire Mesh Processing Technology

Slotting

Laser Cutting

Stamping

Binding/Framing

Forming

Welding

Sintered

Pleated

Molding

Custom Design

Learn More >

Hastelloy Wire Mesh Deep-processing Products

We can produce filter assemblies with non-standard sizes, special shapes, and composite structures according to customer drawings or samples.

Stainless Steel Pleated Filter Cartridge

Sintered Stainless Steel Tube

Cylindrical Mesh Filter

Stainless Steel Pre-filter

Perforated Metal Tube

Wire Mesh Filter Discs

Leaf Disc Filter

Extruder Screens

Wedge Wire Filter

Stainless Steel Cone Filter

Stainless Steel Filter Basket

Hastelloy Wire Mesh Quality Control System

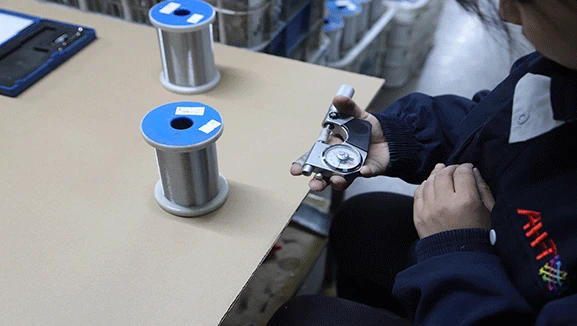

Raw material control

Spectrometer inspection at entry to ensure that the stainless steel wire meets the requirements.

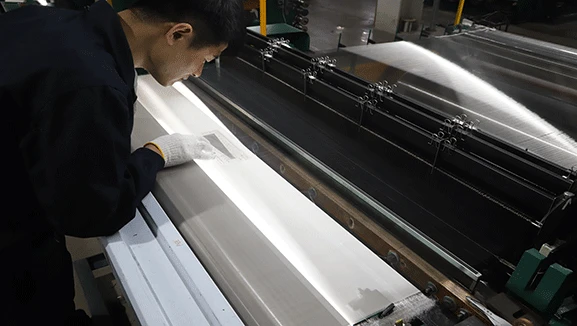

Production process inspection

Using precision calipers, tool microscopes, CNC equipment, etc., to strictly test the mesh size.wire diameter, opening rate, and weight.

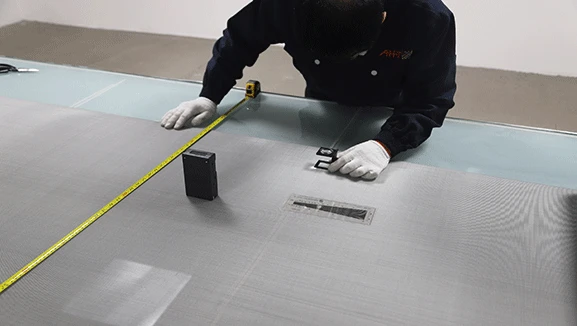

Weaving quality inspection

Ensure that the mesh surface is flat, free of broken or loose wires and the weaving is uniform.

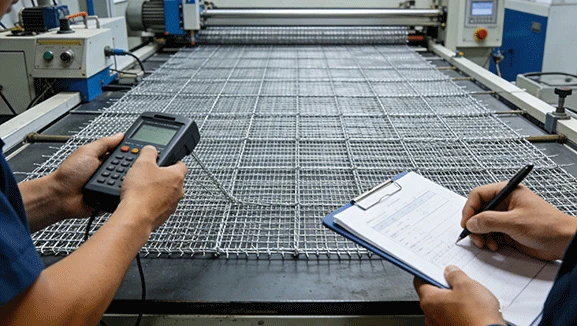

Final inspection

Before each batch of products leaves the factory, a final review of appearance and dimensions is conducted to ensure 100%consistency with customer requirements.

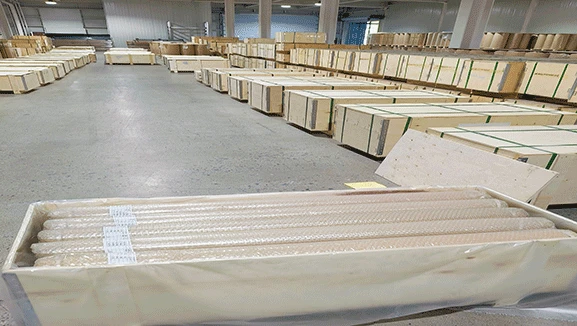

Packaging

We will use inner paper tubes, waterproof paper, plastic film, plywood boxes and pallets for packaging to prevent damage to the goods during transportation.

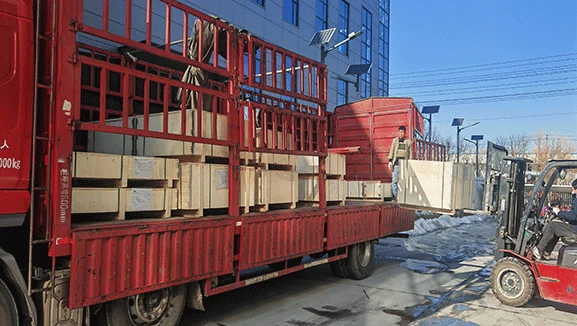

Shipment

We will cooperate with reliable freight forwarders, closely monitor the logistics information of each batch of goods, and track the delivery status of customers in real time. Ensuring the safe and efficient delivery of each batch of wire mesh products to our customers is the principle we have long pursued.

Learn More >

Hastelloy Wire Mesh Certificate

Guangtong has obtained a comprehensive suite of authoritative international credentials, including ISO 9001, ISO 45001, ISO 14001, IATF 16949 Automotive Quality Management System, and AEO Customs Certification. Our rigorous quality management and standardized production processes fully comply with global industrial and export requirements.

Learn More >
