Epoxy Coated Wire Mesh

Epoxy coated wire mesh is a high-performance composite material characterized by its uniformly square apertures, robust structural integrity, and exceptional resistance to deformation. It serves as a versatile and widely utilized solution in both industrial and construction applications.

Inquire Now >> Next Product >>

Product Details

Technical Specifications

Customized Craftsmanship

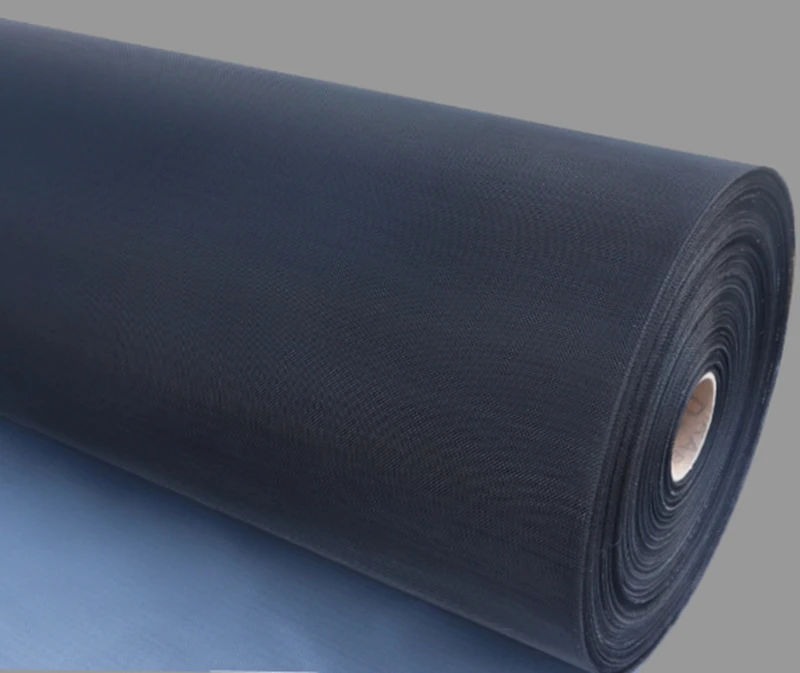

Epoxy Coated Wire Mesh

Epoxy coated wire mesh is a high-performance composite material manufactured through an electrostatic spraying process. In this process, a protective epoxy resin coating (typically black) is applied to the surface of a metal woven mesh and cured at high temperatures. This product combines the high strength of the wire mesh with the corrosion resistance and impact resistance of epoxy resin, resulting in a structurally robust and deformation-resistant material that plays a critical role in industrial and construction engineering. Guangtong has introduced an advanced production line for epoxy-coated wire mesh, offering customization options for various shapes and surface treatments. To meet industry-specific requirements for filtration efficiency or open area ratio, we also provide custom length cutting services tailored to order quantities.

Epoxy Coated Wire Mesh Complete Range Weaving Techniques

Precision Weaving

Special Weaves

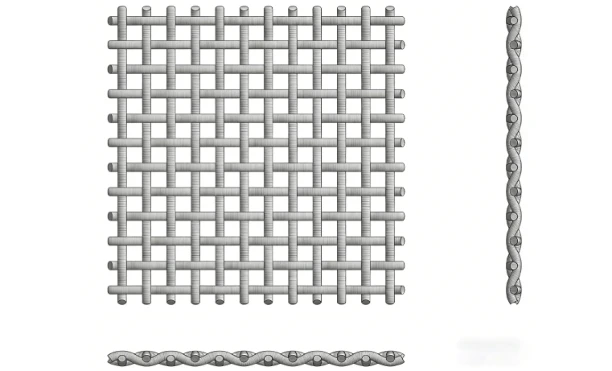

Plain Weave

The plain weave mesh features a warp-weft interlacing structure, where each warp wire passes alternately over and under the weft wires at a 90-degree vertical angle, ensuring uniform and regular diameters of both warp and weft wires as well as consistent mesh openings.

Twill Weave

In twill weave, each warp wire alternately passes over two and under two weft wires, with each weft wire following the same pattern over two and under two warp wires. The warp and weft diameters are identical, resulting in a continuous parallel diagonal pattern.

Dutch Weave

Dutch weave employs thicker warp wires and finer weft wires. The weft wires alternate over and under pairs of warp wires, forming a fine mesh in one direction and a coarse mesh in the other, ultimately producing a tight, conical or wedge-shaped mesh surface.

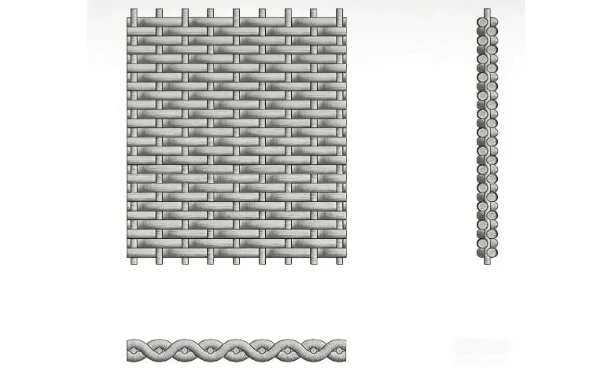

Reverse Dutch Weave

Reverse Dutch weave adopts the opposite configuration of the Dutch weave, utilizing fine warp wires and thick weft wires to form triangular horizontal pores.

5-Heddle Weave

Each warp wire interlaces alternately over and under each weft wire at a 90-degree angle. Both warp and weft wires have identical diameters, and the apertures are uniform and regularly structured.

Herringbone Weave

Herringbone weave is a specialized variant of twill weave. Depending on the mesh width and practical application, the direction of the twill pattern reverses at intervals such as 20, 50, 100, 200, or 500 millimeters, creating a pattern resembling a herringbone skeleton.

Crimped Weave

Crimped weave utilizes pre-embossed wires that are interlocked or nested to form heavy-duty metal meshes. During the crimped process, the wires are precisely bent at specified intervals to ensure an accurately defined mesh structure.

Epoxy Coated Wire Mesh Features and Advantages

Excellent flexibility and adhesion

The epoxy coating forms a robust bond with the wire mesh, creating a flexible surface that facilitates processing. This ensures durable adhesion to the substrate, minimizing risks of peeling, cracking, or flaking.

Sturdy structural integrity

Utilizing a metal wire mesh as the core framework, the epoxy-coated mesh exhibits a tough film with outstanding tensile and compressive strength. It resists deformation and loosening, offering substantial load-bearing capacity.

Wear and corrosion resistance

The epoxy-coated mesh effectively withstands chemical erosion, serving as a reliable protective layer for metal substrates, and making it suitable for use in various harsh environments.

Aesthetic appeal and customizability

Featuring a neat appearance and a range of color options—typically black—the epoxy-coated mesh can be color-customized according to specific client requirements.

Ease of application

The epoxy coating cures into a film at ambient temperature, unaffected by on-site conditions, ensuring straightforward and convenient operation.

Epoxy Coated Wire Mesh Packaging

Inner paper tubes

Waterproof paper

Plastic film

Plywood boxes

Pallets

Technical Specifications

Guangtong Epoxy Coated Mesh Sheets Specifications
STYLE	W×L	PACKAGED(BUNDLES)	STD.T/L QTY.
6×6-W1.4/W1.4	8′×20′	100 Sheets	1400
6×6-W1.4/W1.4	8′×15′	100 Sheets	2000
6×6-W1.4/W1.4	8′×12′6"	100 Sheets	2400
6×6-W1.4/W1.4	5′×10′	100 Sheets	3500
6×6-D2.1/D2.1	8′×20′	50 Sheets	1050
6×6-D2.1/D2.1	8′×15′	50 Sheets	1400
6×6-D2.1/D2.1	8′×12′6"	50 Sheets	1700
6×6-D2.1/D2.1	5′×10′	100 Sheets	3000
6×6-D2.9/D2.9	8′×20′	50 Sheets	750
6×6-D2.9/D2.9	8′×15′	50 Sheets	1000
6×6-D2.9/D2.9	8′×12′6"	50 Sheets	1200
6×6-D2.9/D2.9	5′×10′	100 Sheets	2000
6×6-D4/D4	8′×20′	50 Sheets	525
6×6-D4/D4	8′×15′	50 Sheets	700
6×6-D4/D4	8′×12′6"	50 Sheets	850
6×6-D4/D4	5′×10′	50 Sheets	1500
4×4-D2.9/D2.9	8′×20′	50 Sheets	500
4×4-D2.9/D2.9	8′×15′	50 Sheets	650
4×4-D2.9/D2.9	8′×12′6"	50 Sheets	800
4×4-D2.9/D2.9	5′×10′	100 Sheets	1600
4×4-D4/D4	8′×20′	25 Sheets	350
4×4-D4/D4	8′×15′	25 Sheets	475
4×4-D4/D4	8′×12′6"	50 Sheets	550
4×4-D4/D4	5′×10′	50 Sheets	1150

Guangtong Epoxy Coated Mesh Rolls Specifications
STYLE	W×L	PACKAGED(BUNDLES)	STD.T/L QTY.
6X6-W1.4/W1.4	5′×150′	18 Rolls	324
6X6-W1.4/W1.4	6′×150′	17 Rolls	272
6X6-W1.4/W1.4	5′×200′	15 or 12 &7 Rolls	240
6X6-D2.1/D2.1	5′×150′	15 Rolls	225
6X6-D2.9/D2.9	5′×150′	12 &8 Rolls	160

Epoxy Coated Wire Mesh Process Technology

Slotting

Laser Cutting

Stamping

Binding/Framing

Forming

Welding

Sintered

Pleated

Molding

Custom Design

Learn More >

Epoxy Coated Wire Mesh Deep-processing Products

We can produce filter assemblies with non-standard sizes, special shapes, and composite structures according to customer drawings or samples.

Stainless Steel Pleated Filter Cartridge

Sintered Stainless Steel Tube

Cylindrical Mesh Filter

Stainless Steel Pre-filter

Perforated Metal Tube

Wire Mesh Filter Discs

Leaf Disc Filter

Extruder Screens

Wedge Wire Filter

Stainless Steel Cone Filter

Stainless Steel Filter Basket

Epoxy Coated Wire Mesh Quality Control System

Raw material control

Spectrometer inspection upon entry to ensure that the stainless steel wire meets the requirements.

Production process inspection

Using precision calipers, tool microscopes, CNC equipment, etc., to strictly test the mesh size, wire diameter, opening rate, weight, etc.

Weaving quality inspection

Ensure that the mesh surface is flat, without broken wires, no loose wires, and the weaving is uniform.

Final inspection

Before each batch of products leaves the factory, a final review of appearance and dimensions is conducted to ensure 100% consistency with customer requirements.

Packaging

We will use inner paper tubes, waterproof paper, plastic film, plywood boxes and pallets for packaging to prevent damage to the goods during transportation.

Shipment

We will cooperate with reliable freight forwarders, closely monitor the logistics information of each batch of goods, and track the delivery status of customers in real time. Ensuring the safe and efficient delivery of each batch of wire mesh products to our customers is the principle we have long pursued.

Learn More >

Epoxy Coated Wire Mesh Certificates

Guangtong has obtained a comprehensive suite of authoritative international credentials, including ISO 9001, ISO 45001, ISO 14001, IATF 16949 Automotive Quality Management System, and AEO Customs Certification. Our rigorous quality management and standardized production processes fully comply with global industrial and export requirements.

Learn More >

FAQ

Your question, let me help you answer it

Learn More >

SUCCESS CASES

Customized as per your needs, providing you with a one-stop solution for filtration requirements

Learn More >

24-hour 1v1 exclusive service

Learn More >

Customer Testimonials

Alexandra

US market

Our beverage factory has strict requirements for food safety, Guangtong customized a stainless steel pleated filter element for our filtration equipment, which exceeded our expectations completely. The R&D team of Guangtong had detailed communication with us to confirm the details on the drawings (including dimensions, material, filtration accuracy, etc.). This stainless steel pleated filter element fully meets our requirements. Its surface is polished to a mirror finish (roughness of 0.4 microns), and there are no installation problems. During use, it can effectively remove impurities from the juice while retaining the original flavor. The 3l6L stainless steel material enables it to withstand repeated high-temperature sterilization and maintain stable filtration accuracy, with a filtration efficiency of 99.6%, this has significantly enhanced our production efficiency and enabled us to successfully pass the FDA inspection. The rapid response mechanism, the professional R&D team, and the rigorous quality control have facilitated our subsequent collaboration and enabled us to become long-term partners.

Oliver Fuchs

European market

As a chemical enterprise, we established contact with Guangtong this year and inquired about a metal sintered filter element. Guangtong provided a complete ISO certificate and customized a sintered filter with high temperature tolerance up to 200 degrees Celsius based on our filter medium drawings. This sintered filter has been in use for 6 months and has not shown any leakage. Compared with previous sintered filter suppliers, its maintenance cost has been reduced by 40%. For an enterprise with customization needs like ours, we highly recommend it!

Afri o.

Southeast Asian market

Guangtong has specially designed a large-capacity stainless steel mesh filter for our municipal water treatment project in Indonesia. This stainless steel filter has a large filtration area and a processing capacity of up to 500L/h, fully meeting our requirements for filtration efficiency and accuracy. It has been operating stably for one year without any deformation or clogging issues, and the maintenance cost is also low. We highly appreciate Guangtong's professional customization capabilities and after-sales maintenance work, and look forward to future cooperation.

South Africa

Europe

Southeast Asia

South Korea

Japan

Australia

New Zealand

Canada

America

South America

Anping Guangtong Hardware Wire Mesh Co., Ltd.

Related Products

Stainless Steel Wire Mesh

Stainless steel wire mesh serves as the most fundamental and widely used material for industrial filtration and screening, supporting a comprehensive range of weaving methods. It exhibits excellent corrosion resistance, high-temperature durability, and superior performance.

Brass Wire Mesh

Brass wire mesh is a metallic mesh woven from premium brass wires, accommodating various weaving techniques. It features a stable structure, excellent electrical conductivity, and non-magnetic properties. This product is widely used in both traditional industrial applications and decorative construction sectors.

Epoxy Coated Wire Mesh

Monel Wire Mesh

Monel wire mesh is a high-performance metal mesh that optimally integrates the superior corrosion resistance of Monel alloy with the structural functionality of wire mesh, rendering it an ideal solution for marine industry applications.

Nickel Wire Mesh

The nickel wire mesh is fabricated from high-purity nickel wires with a nickel content of no less than 99%, exhibiting outstanding electrical conductivity, ductility, and resistance to acids and alkalis. It plays an indispensable role in a wide range of industrial applications.

Mild Steel Wire Mesh

Mild steel wire mesh is a metallic netting fabricated from low-carbon steel wire as the raw material, characterized by cost-effectiveness and structural stability. It is extensively employed in the rubber industry, plastics industry, and grain filtration processes.
