PRODUCT CATEGORY

Brass Wire Mesh

Brass wire mesh is a metallic mesh woven from premium brass wire, accommodating various weaving techniques. It features a stable structure, excellent electrical conductivity, and non-magnetic properties. This product is widely used in both traditional industrial applications and decorative construction sectors.

Inquire Now >> Next Product >>

Product Details

Technical Specifications

Customized Craftsmanship

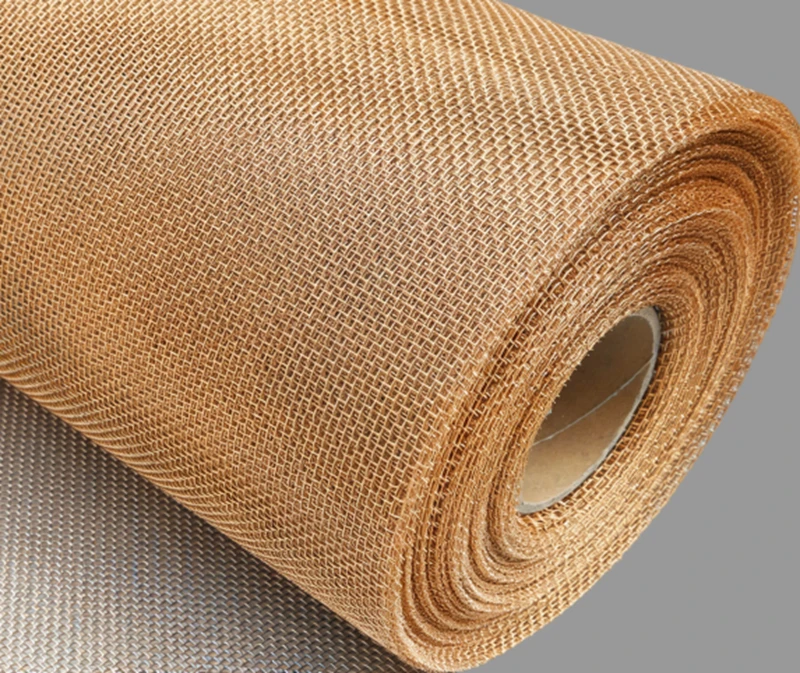

Brass Wire Mesh

Brass wire mesh is manufactured from high-quality brass wire (composition: 65% copper, 35% zinc) using weaving techniques such as plain weave, twill weave, and dutch weave. Characterized by a smooth surface and bright finish, this mesh demonstrates excellent machinability, along with superior electrical conductivity, thermal conductivity, abrasion resistance, and non-magnetic properties. It is widely utilized as a conventional bulk wire mesh in industrial screening and filtration, architectural decoration, ceramic printing, electromagnetic shielding, and other applications. Guangtong offers customization options for various shapes and surface treatments. To meet specific requirements for filtration efficiency or open area ratio in different industries, we also provide custom-length cutting services based on order quantity.

Brass Wire Mesh Complete Range Weaving Techniques

Precision Weaving

Special Weaves

Plain Weave

The plain weave mesh features a warp-weft interlacing structure, where each warp wire passes alternately over and under the weft wires at a 90-degree vertical angle. This ensures uniform and regular diameters of both warp and weft wires as well as consistent mesh openings.

Twill Weave

In twill weave, each warp wire alternately passes over two and under two weft wires, with each weft wire following the same pattern over two and under two warp wires. The warp and weft diameters are identical, resulting in a continuous parallel diagonal pattern.

Dutch Weave

Dutch weave employs thicker warp wires and finer weft wires. The weft wires alternate over and under pairs of warp wires, forming a fine mesh in one direction and a coarse mesh in the other, ultimately producing a tight, conical or wedge-shaped mesh surface.

Reverse Dutch Weave

Reverse Dutch weave adopts the opposite configuration of the Dutch weave, using fine warp wires and thick weft wires to form triangular horizontal pores.

5-Heddle Weave

Each warp wire interlaces alternately over and under each weft wire at a 90-degree angle, with identical diameters for both warp and weft wires and uniform, regularly structured apertures.

Herringbone Weave

Herringbone weave is a specialized variant of twill weave. Depending on the mesh width and practical application, the direction of the twill pattern reverses at intervals such as 20, 50, 100, 200, or 500 millimeters, creating a pattern resembling a herringbone skeleton.

Crimped Weave

Crimped weave utilizes pre-embossed wires that are interlocked or nested to form heavy-duty metal meshes. During the crimped process, the wires are precisely bent at specified intervals to ensure an accurately defined mesh structure.

Brass Wire Mesh Features and Advantages

Non-Magnetic

Brass wire mesh is non-magnetic, ensuring no magnetic induction is generated in magnetic fields and remains unaffected by magnetic forces. It exhibits excellent shielding properties, making it suitable for precision instruments and electronic equipment.

High Ductility

Brass wire mesh possesses superior ductility, maintaining shape stability while offering a degree of flexibility. This enables it to withstand external forces to a certain extent without fracturing, resulting in a prolonged service life.

Aesthetic Appeal

With its golden-yellow surface, brass wire mesh can undergo various surface treatments, combining both visual elegance and functional value. It is ideal for decorative applications and craftsmanship.

Durability and Robustness

Brass wire mesh demonstrates outstanding corrosion resistance, anti-rust properties, and long-term durability. It maintains stable performance even under harsh conditions, such as exposure to acids, alkalis, and other corrosive environments.

Brass Wire Mesh Packaging

Inner paper tubes

Waterproof paper

Plastic film

Plywood boxes

Pallets

Technical Specifications

Guangtong Brass Wire Mesh Technical Specifications
Item	Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight
		inch	mm	inch	mm	%	(LB/100 Square Foot)
SS-1	1×1	0.08	2.03	0.92	23.37	84.6	41.1
SS-2	2×2	0.063	1.6	0.437	11.1	76.4	51.2
SS-3	3×3	0.054	1.37	0.279	7.09	70.1	56.7
SS-4	4×4	0.063	1.6	0.187	4.75	56	104.8
SS-5	4×4	0.047	1.19	0.203	5.16	65.9	57.6
SS-6	5×5	0.041	1.04	0.159	4.04	63.2	54.9
SS-7	6×6	0.035	0.89	0.132	3.35	62.7	48.1
SS-8	8×8	0.028	0.71	0.097	2.46	50.2	41.1
SS-9	10×10	0.025	0.64	0.075	1.91	56.3	41.2
SS-10	10×10	0.02	0.51	0.08	2.03	64	26.1
SS-11	12×12	0.023	0.584	0.06	1.52	51.8	42.2
SS-12	12×12	0.02	0.508	0.063	1.6	57.2	31.6
SS-13	14×14	0.023	0.584	0.048	1.22	45.2	49.8
SS-14	14×14	0.02	0.508	0.051	1.3	51	37.2
SS-15	16×16	0.018	0.457	0.0445	1.13	50.7	34.5
SS-16	18×18	0.017	0.432	0.0386	0.98	48.3	34.8
SS-17	20×20	0.02	0.508	0.03	0.76	36	55.2
SS-18	20×20	0.016	0.406	0.034	0.86	46.2	34.4
SS-19	24×24	0.014	0.356	0.0277	0.7	44.2	31.8
SS-20	30×30	0.013	0.33	0.0203	0.52	37.1	34.8
SS-21	30×30	0.012	0.305	0.0213	0.54	40.8	29.4
SS-22	30×30	0.009	0.229	0.0243	0.62	53.1	16.1
SS-23	35×35	0.011	0.279	0.0176	0.45	37.9	29
SS-24	40×40	0.01	0.254	0.015	0.38	36	27.6
SS-25	50×50	0.009	0.229	0.011	0.28	30.3	28.4
SS-26	50×50	0.008	0.203	0.012	0.31	36	22.1
SS-27	60×60	0.0075	0.191	0.0092	0.23	30.5	23.7
SS-28	60×60	0.007	0.178	0.0097	0.25	33.9	20.4
SS-29	70×70	0.0065	0.165	0.0078	0.2	29.8	20.8
SS-30	80×80	0.0065	0.165	0.006	0.15	23	23.2
SS-31	80×80	0.0055	0.14	0.007	0.18	31.4	16.9
SS-32	90×90	0.005	0.127	0.0061	0.16	30.1	15.8
SS-33	100×100	0.0045	0.114	0.0055	0.14	30.3	14.2
SS-34	100×100	0.004	0.102	0.006	0.15	36	11
SS-35	100×100	0.0035	0.089	0.0065	0.17	42.3	8.3
SS-36	110×110	0.004	0.1016	0.0051	0.1295	30.7	12.4
SS-37	120×120	0.0037	0.094	0.0064	0.1168	30.7	11.6
SS-38	150×150	0.0026	0.066	0.0041	0.1041	37.4	7.1
SS-39	160×160	0.0025	0.0635	0.0038	0.0965	36.4	5.94
SS-40	180×180	0.0023	0.0584	0.0033	0.0838	34.7	6.7
SS-41	200×200	0.0021	0.0533	0.0029	0.0737	33.6	6.2
SS-42	250×250	0.0016	0.0406	0.0024	0.061	36	4.4
SS-43	270×270	0.0016	0.0406	0.0021	0.0533	32.2	4.7
SS-44	300×300	0.0051	0.0381	0.0018	0.0457	29.7	3.04
SS-45	325×325	0.0014	0.0356	0.0017	0.0432	30	4.4
SS-46	400×400	0.001	0.0254	0.0015	0.37	36	3.3
SS-47	500×500	0.001	0.0254	0.001	0.0254	25	3.8
SS-48	635×635	0.0008	0.0203	0.0008	0.0203	25	2.63

Brass Wire Mesh Process Technology

Slotting

Laser Cutting

Stamping

Binding/Framing

Forming

Welding

Sintered

Pleated

Molding

Custom Design

Learn More >

Brass Wire Mesh Deep-processing Products

We can produce filter assemblies with non-standard sizes, special shapes, and composite structures according to customer drawings or samples.

Stainless Steel Pleated Filter Cartridge

Sintered Stainless Steel Tube

Cylindrical Mesh Filter

Stainless Steel Pre-filter

Perforated Metal Tube

Wire Mesh Filter Discs

Leaf Disc Filter

Extruder Screens

Wedge Wire Filter

Stainless Steel Cone Filter

Stainless Steel Filter Basket

Brass Wire Mesh Quality Control System

Raw material control

Spectrometer inspection upon entry to ensure that the brass wire meets the requirements.

Production process inspection

Utilize precision calipers, tool microscopes, CNC equipment, etc., to strictly test the mesh size, wire diameter, opening rate, weight, etc.

Weaving quality inspection

Ensure that the mesh surface is flat, with no broken or loose wires and the weaving is uniform.

Final inspection

Before each batch of products leaves the factory, a final review of appearance and dimensions is conducted to ensure 100% consistency with customer requirements.

Packaging

We will use inner paper tubes, waterproof paper, plastic film, plywood boxes and pallets for packaging to prevent damage to the goods during transportation.

Shipment

We will cooperate with reliable freight forwarders, closely monitor the logistics information of each batch of goods, and track the delivery status of customers in real time. Ensuring the safe and efficient delivery of each batch of wire mesh products to our customers is the principle we have long pursued.

Learn More >

Brass Wire Mesh Certificates

Guangtong has obtained a comprehensive suite of authoritative international credentials, including ISO 9001, ISO 45001, ISO 14001, IATF 16949 Automotive Quality Management System, and AEO Customs Certification. Our rigorous quality management and standardized production processes fully comply with global industrial and export requirements.

Learn More >

FAQ

Your question, let me help you answer it

Learn More >

SUCCESS CASES

Customized as per your needs, providing you with a one-stop solution for filtration requirements

Learn More >

24-hour 1v1 exclusive service

Learn More >

Customer Testimonials

Alexandra

US market

Our beverage factory has strict requirements for food safety, Guangtong customized a stainless steel pleated filter element for our filtration equipment, which exceeded our expectations completely. The R&D team of Guangtong had detailed communication with us to confirm the details on the drawings (including dimensions, material, filtration accuracy, etc.). This stainless steel pleated filter element fully meets our requirements. Its surface is polished to a mirror finish (roughness of 0.4 microns), and there are no installation problems. During use, it can effectively remove impurities from the juice while retaining the original flavor. The 3l6L stainless steel material enables it to withstand repeated high-temperature sterilization and maintain stable filtration accuracy, with a filtration efficiency of 99.6%, this has significantly enhanced our production efficiency and enabled us to successfully pass the FDA inspection. The rapid response mechanism, the professional R&D team, and the rigorous quality control have facilitated our subsequent collaboration and enabled us to become long-term partners.

Oliver Fuchs

European market

As a chemical enterprise, we established contact with Guangtong this year and inquired about a metal sintered filter element. Guangtong provided a complete ISO certificate and customized a sintered filter with high temperature tolerance up to 200 degrees Celsius based on our filter medium drawings. This sintered filter has been in use for 6 months and has not shown any leakage. Compared with previous sintered filter suppliers, its maintenance cost has been reduced by 40%. For an enterprise with customization needs like ours, we highly recommend it!

Afri o.

Southeast Asian market

Guangtong has specially designed a large-capacity stainless steel mesh filter for our municipal water treatment project in Indonesia. This stainless steel filter has a large filtration area and a processing capacity of up to 500L/h, fully meeting our requirements for filtration efficiency and accuracy. It has been operating stably for one year without any deformation or clogging issues, and the maintenance cost is also low. We highly appreciate Guangtong's professional customization capabilities and after-sales maintenance work, and look forward to future cooperation.

South Africa

Europe

Southeast Asia

South Korea

Japan

Australia

New Zealand

Canada

America

South America

Anping Guangtong Hardware Wire Mesh Co., Ltd.

Related Products

Stainless Steel Wire Mesh

Stainless steel wire mesh serves as the most fundamental and widely used material for industrial filtration and screening, supporting a comprehensive range of weaving methods. It exhibits excellent corrosion resistance, high-temperature durability, and superior performance.

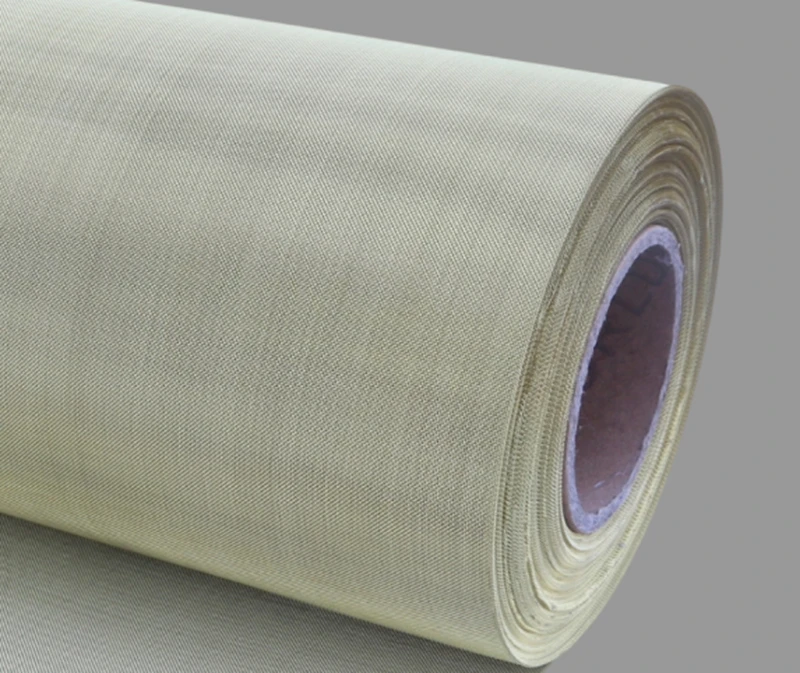

Brass Wire Mesh
