Aluminum wire mesh is a mesh fabric made by weaving pure aluminum wires or aluminum alloys. It is the most popular non-ferrous metal worldwide and has a wide range of applications.

share:

Product Details

Technical Specifications

Customized Craftsmanship

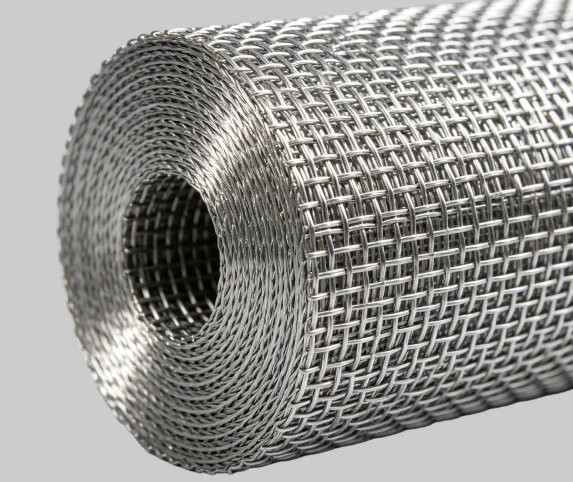

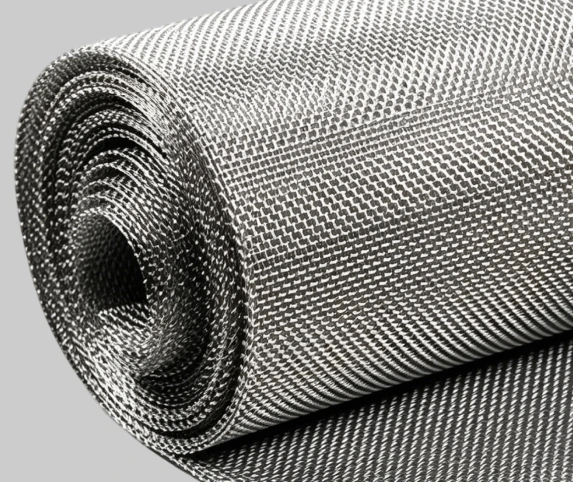

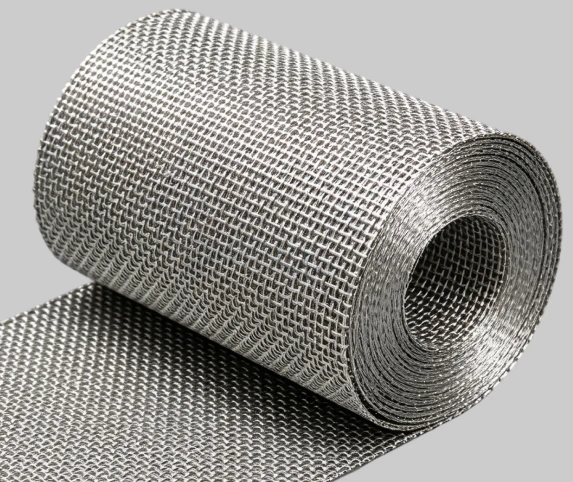

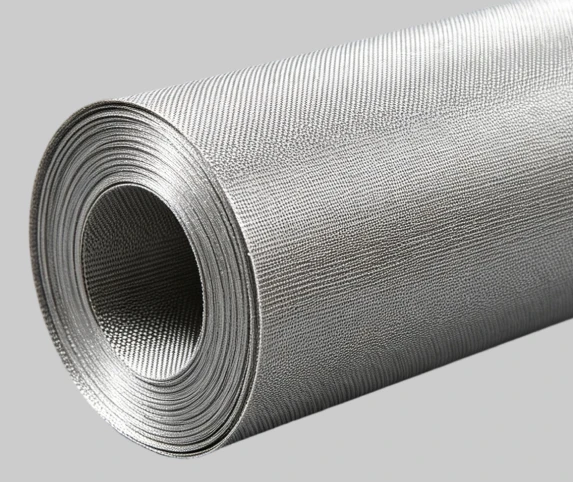

Aluminum Wire Mesh

Aluminum wire mesh is a flexible woven mesh manufactured from pure aluminum wire or aluminum alloy wire via multiple weaving processes. It boasts bright luster, flexible texture and structure, low cost and light weight. Aluminum wire delivers outstanding resistance to atmospheric and marine‑environment corrosion. It is also non‑magnetic, non‑toxic, electrically conductive, scratch‑resistant, capable of withstanding extreme temperatures, and easy to fabricate and form. It finds broad applications in architectural decoration, ventilation & protection, aerospace and many other industrial sectors. Guangtong provides custom options for diverse shapes and surface treatments. Furthermore, to satisfy industry‑specific requirements for filtration efficiency or open area, we also offer custom‑length cutting services per order requirements.

Aluminum Wire Mesh Complete Range Weaving Techniques

Precision Weaving

Special Weaves

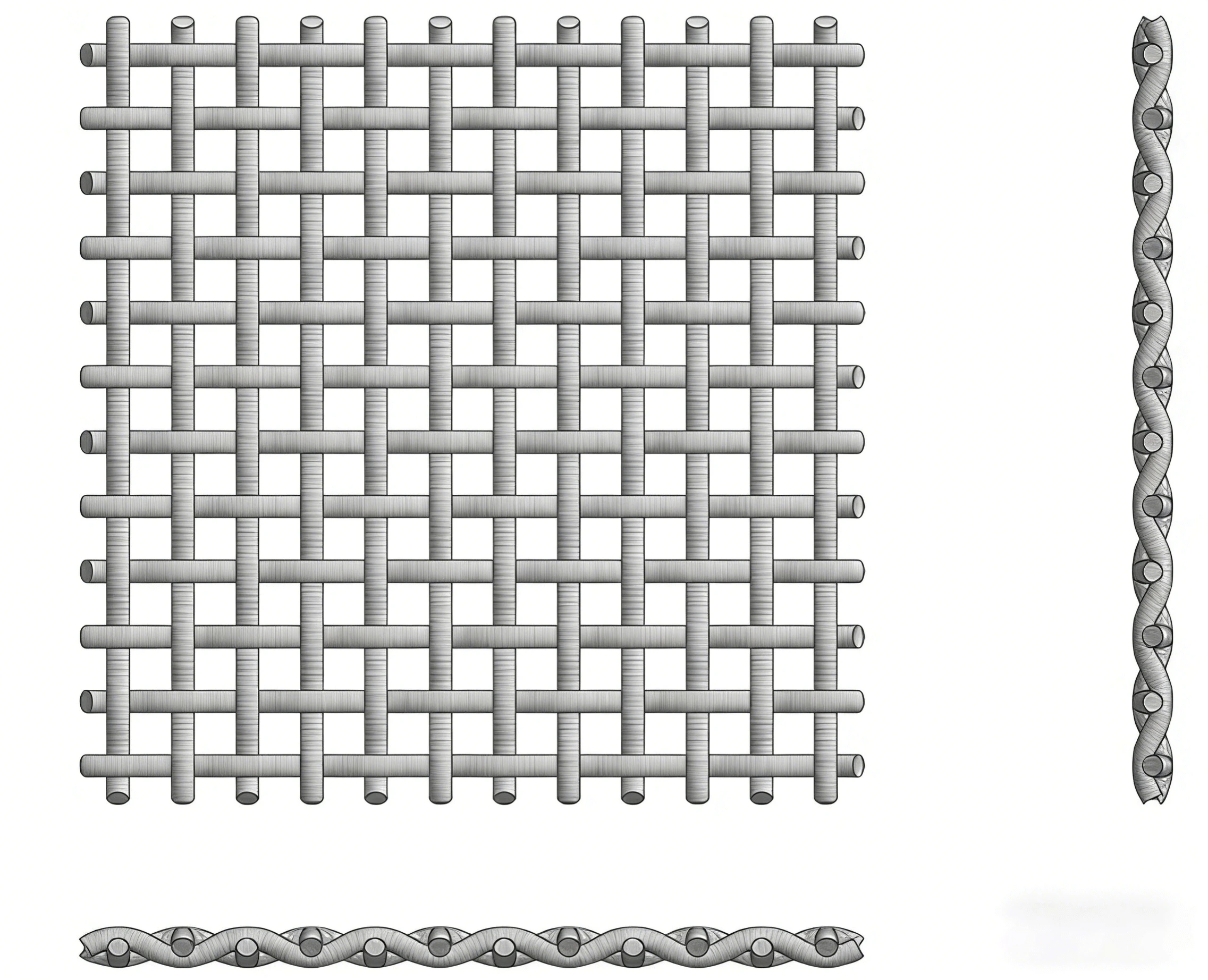

Plain Weave

Plain Weave

The plain weave mesh features a warp-weft interlacing structure, where each warp wire passes alternately over and under the weft wires at a 90-degree vertical angle, ensuring uniform and regular diameters of both warp and weft threads as well as consistent mesh openings.

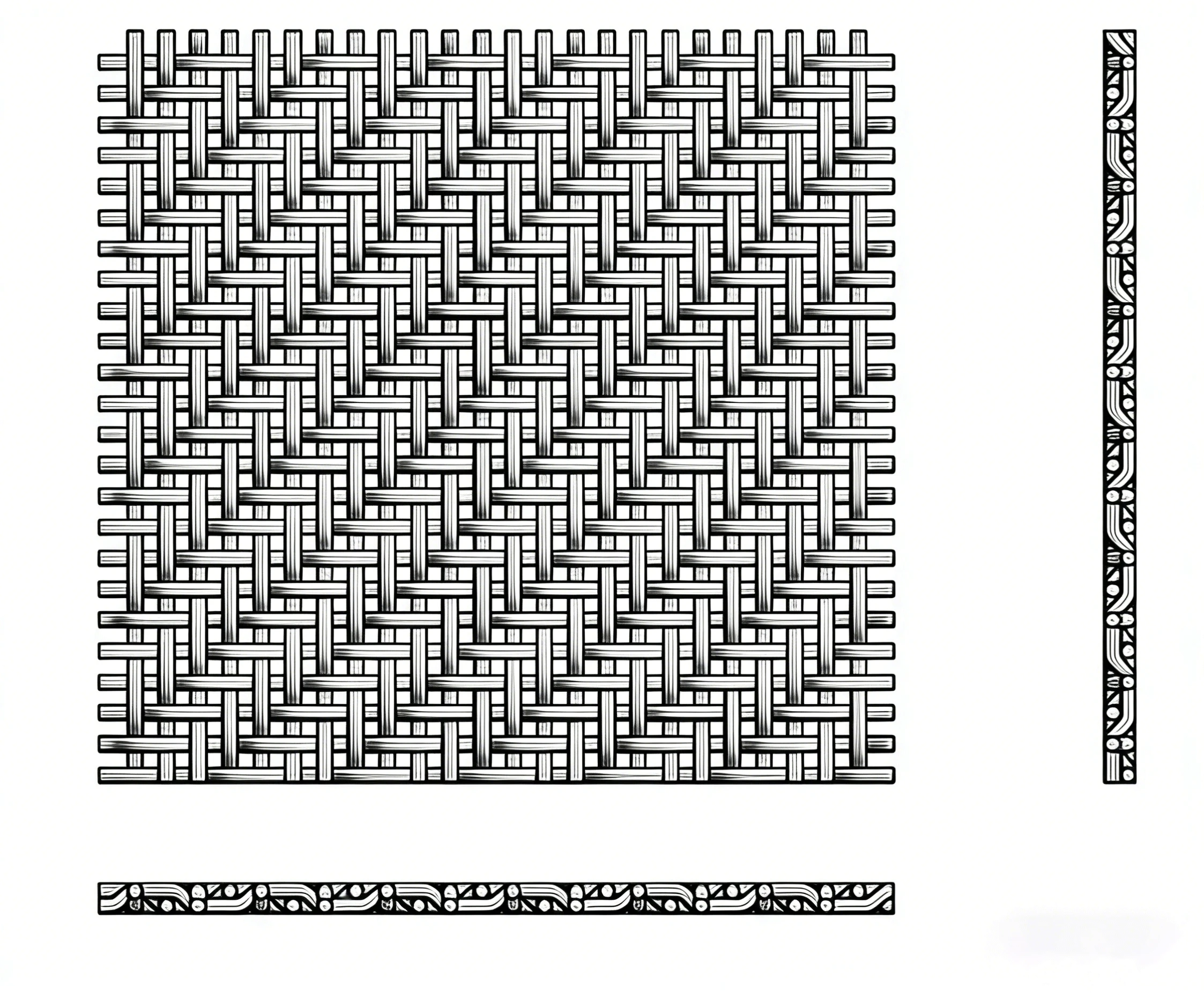

Twill Weave

Twill Weave

In twill weave, each warp wire alternately passes over two and under two weft wires, with each weft yarn following the same pattern over two and under two warp wires. The warp and weft diameters are identical, resulting in a continuous parallel diagonal pattern.

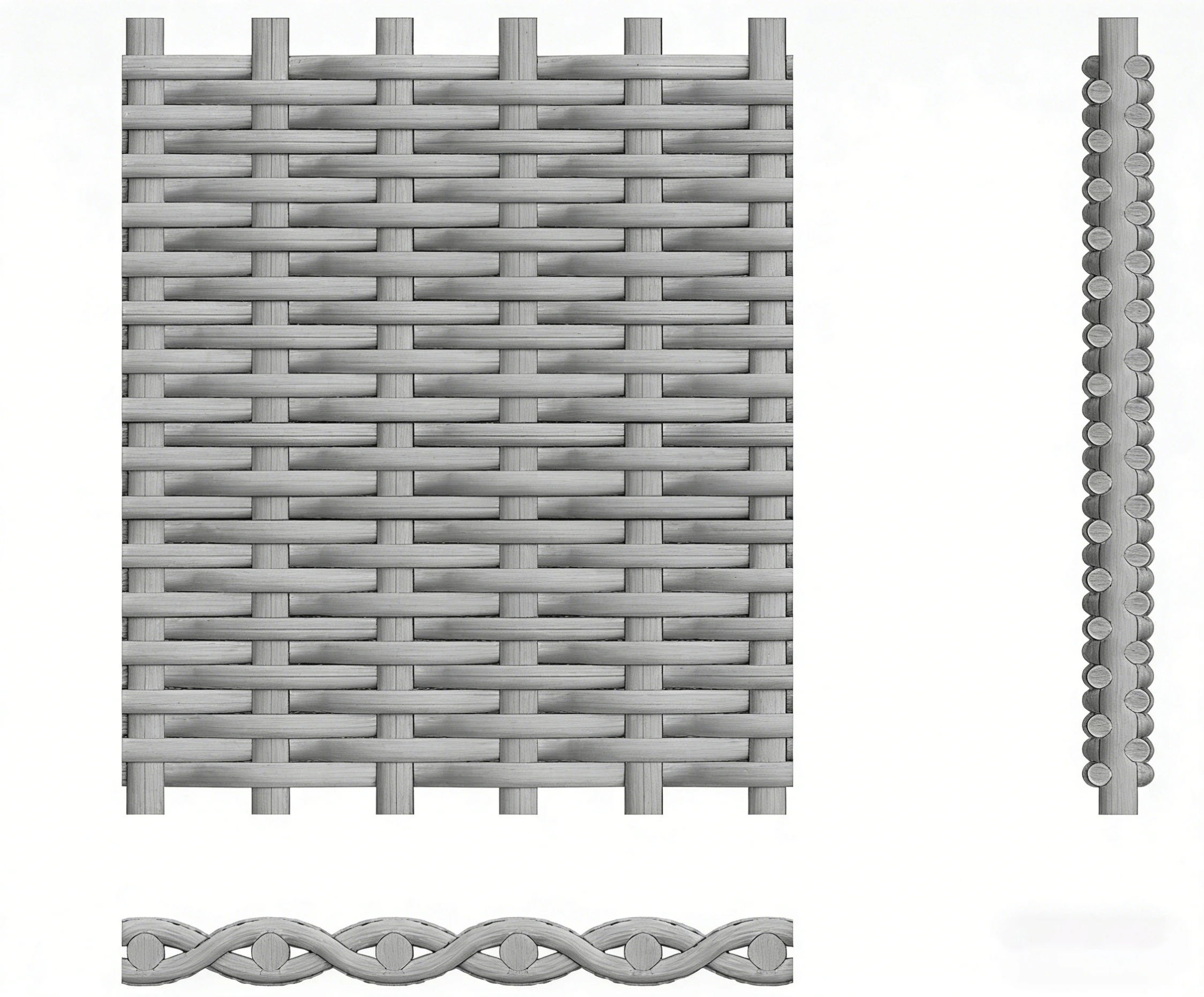

Dutch Weave

Dutch Weave

Dutch weave employs thicker warp wires and finer weft wires. The weft wires alternate over and under pairs of warp wires, forming a fine mesh in one direction and a coarse mesh in the other, ultimately producing a tight, conical or wedge-shaped mesh surface.

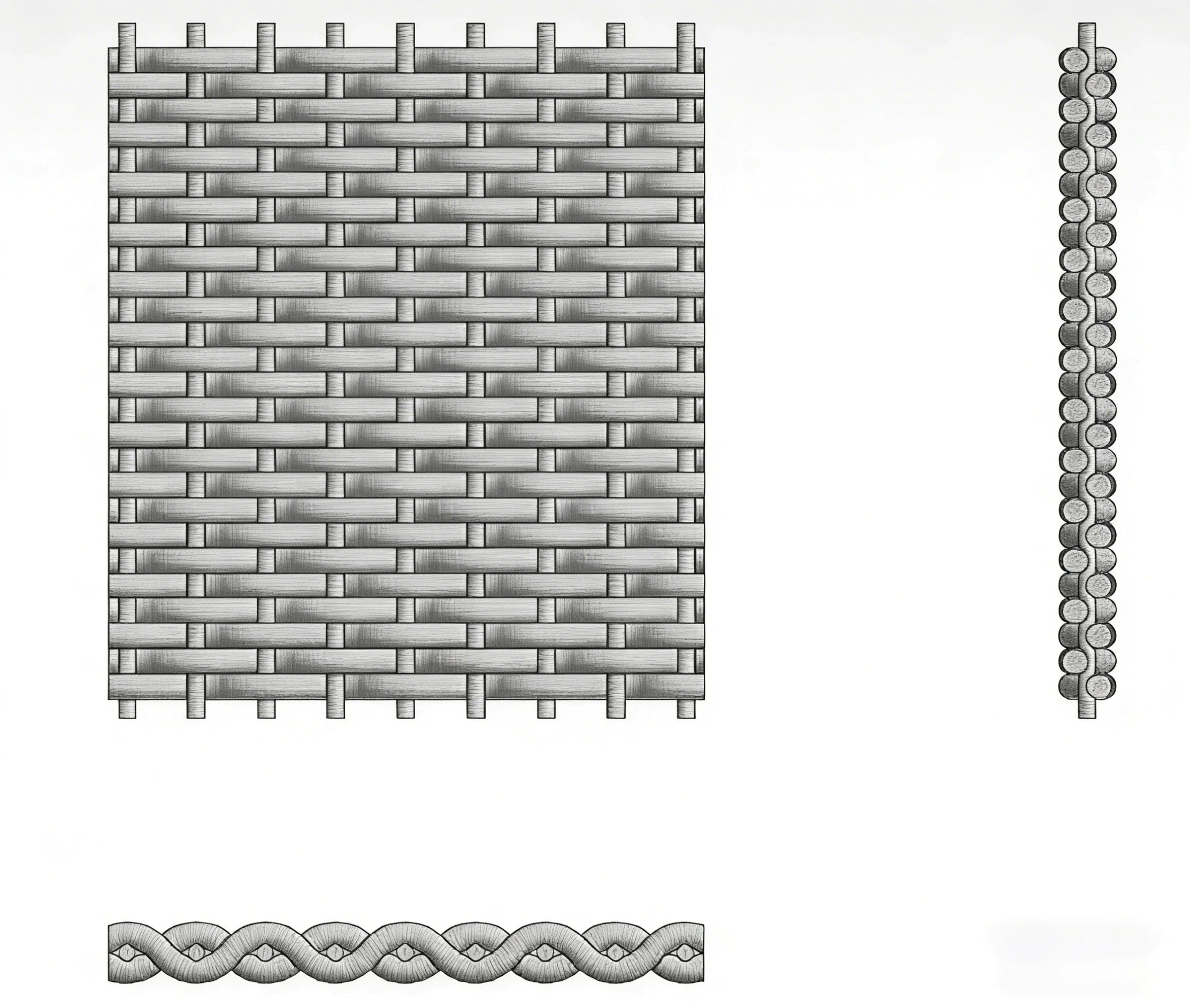

Reverse Dutch Weave

Reverse Dutch Weave

Reverse dutch weave adopts the opposite configuration of the Dutch weave, utilizing fine warp wires and thick weft wires to form triangular horizontal pores.

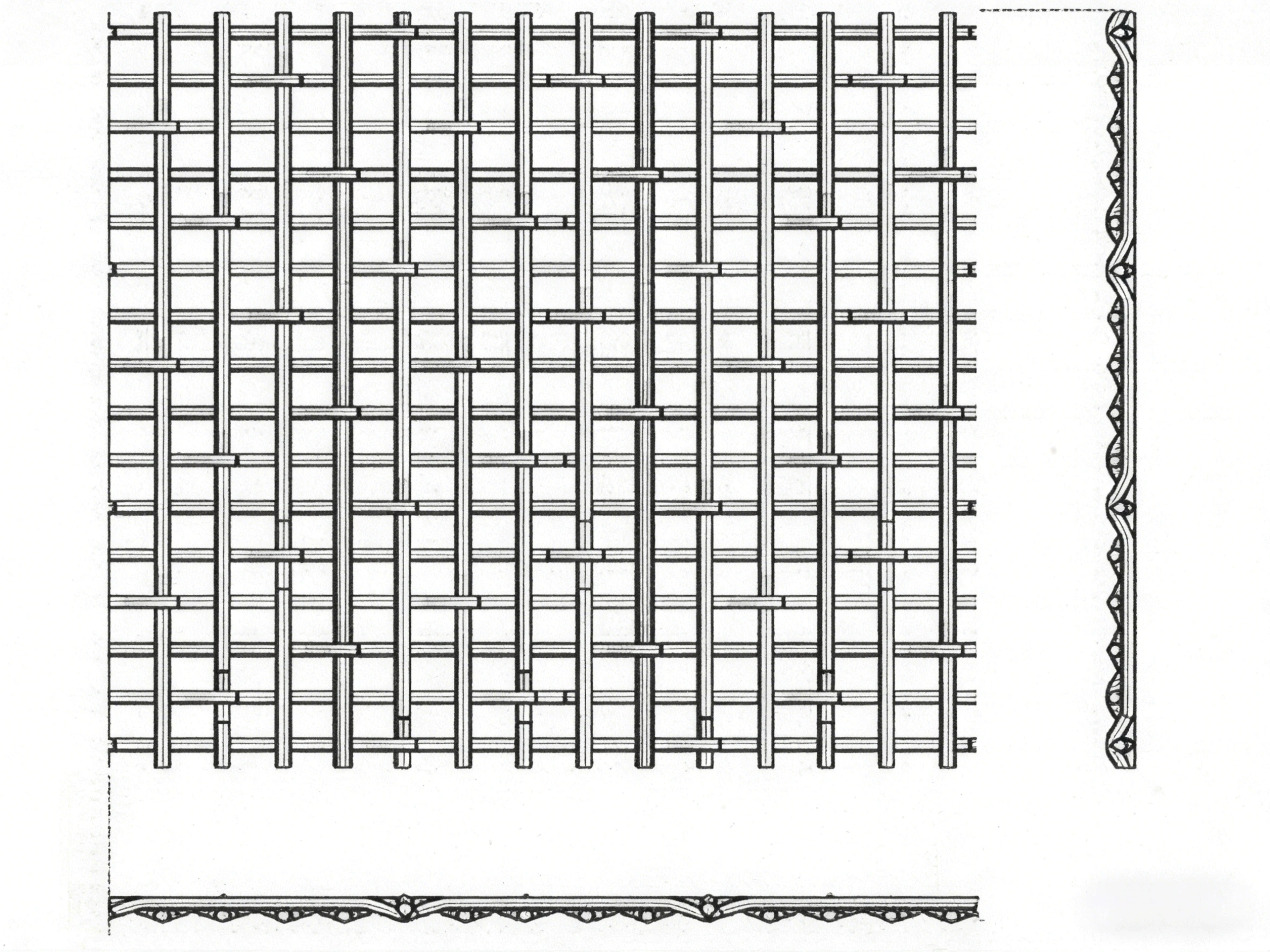

5-Heddle Weave

5-Heddle Weave

Each warp wire interlaces alternately over and under each weft wire at a 90-degree angle, with identical diameters for both warp and weft wires and uniform, regularly structured apertures.

Herringbone Weave

Herringbone Weave

Herringbone weave is a specialized variant of twill weave. Depending on the mesh width and practical application, the direction of the twill pattern reverses at intervals such as 20, 50, 100, 200, or 500 millimeters, creating a pattern resembling a herringbone skeleton.

Crimped Weave

Crimped Weave

Crimped weave utilizes pre-embossed wires that are interlocked or nested to form heavy-duty metal meshes. During the crimped process, the wires are precisely bent at specified intervals to ensure an accurately defined mesh structure.

Aluminum Wire Mesh Features and Advantages

01

Lightweight

With identical specifications, aluminum woven mesh weighs only one - third of stainless steel woven mesh. It greatly cuts structural dead - load and facilitates fabrication, transportation and subsequent maintenance.

02

Excellent Electrical & Thermal Conductivity

Boasting superior electrical and thermal conductivity, aluminum woven mesh serves as an ideal heat - dissipation substrate for rapid heat dissipation.

03

Outstanding Non - magnetic Performance

Aluminum wire is inherently non - magnetic and produces no electromagnetic interference, making it suitable for electromagnetic shielding applications.

04

Superior Corrosion Resistance

Aluminum develops a dense protective alumina film upon exposure to air, creating an effective barrier against corrosive agents. It resists rust in atmospheric, freshwater and marine environments.

05

Safe & Non Toxic (Non Sparking)

The aluminum wire is non - toxic. It will not generate sparks under impact or friction, and is widely adopted for safety protection in flammable and explosive hazardous areas.

06

Easy to Fabricate

Soft texture and excellent ductility allow diverse surface finishing options and flexible customization. It is well - suited for large - area continuous on - site installation.

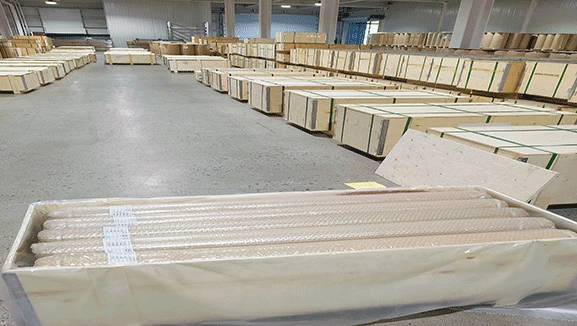

Aluminum Wire Mesh Packaging

Inner paper tubes

Inner paper tubes

Waterproof paper

Waterproof paper

Plastic film

Plastic film

Plywood boxes

Plywood boxes

Pallets

Pallets

Aluminum Wire Mesh Technical Specifications

Chemical Composition Limits for Various Aluminum Wire Mesh Alloys (in %)
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Other Aluminum
1350 0.1 0.4 0.05 0.01 0.01 0.05 0.03 Trace 99.5
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 0.1 Remainder
5056 0.3 0.4 0.1 0.05-0.20 4.5-5.6 0.05-0.20 0.1 Remainder
5154 0.25 0.4 0.1 0.1 3.1-3.9 0.15-.35 0.2 0.2 Trace Remainder



Plain & Twill Weave Aluminum Woven Mesh
Item Mesh Wire Diameter Aperture Open Area
inch inch mm inch mm %
Aluminum-1 1 × 1 0.0800  2.0300  0.9200  23.3700  84.6
Aluminum-2 2 × 2 0.0630  1.6000  0.4370  11.1000  76.4
Aluminum-3 3 × 3 0.0540  1.3700  0.2790  7.0900  70.1
Aluminum-4 4 × 4 0.0630  1.6000  0.1870  4.7500  56.0
Aluminum-5 5 × 5 0.0410  1.0400  0.1590  4.0400  63.2
Aluminum-6 10 × 10 0.0250  0.6400  0.0750  1.9100  56.3
Aluminum-7 24 × 24 0.0140  0.3560  0.0277  0.7000  44.2
Aluminum-8 80 × 80 0.0055  0.1400  0.0070  0.1800  31.4
Aluminum-9 90 × 90 0.0050  0.1270  0.0061  0.1600  30.1
Aluminum-10 100 × 100 0.0035  0.0890  0.0065  0.1700  42.3
Aluminum-11 120 × 120 0.0037  0.0940  0.0064  0.1168  30.7
Aluminum-12 160 × 160 0.0025  0.0635  0.0038  0.0965  36.4
Aluminum-13 200 × 200 0.0021  0.0533  0.0029  0.0737  33.6



Dutch Weave Aluminum Woven Mesh
Item Mesh Per Inch
(Longitude × Latitude)
Wire Diameter
(Longitude × Latitude)
Aperture Reference Value Effective Rate of Cross Section Thickness of Mesh
mm μm % mm
AluminumD-1 7 × 40 0.900 × 0.710 347 14.3  2.320
AluminumD-2 7 × 44 0.710 × 0.630 319 14.2  1.970
AluminumD-3 8 × 45 0.800 × 0.600 310 15.5  2.000
AluminumD-4 14 × 76 0.450 × 0.355 173 14.3  1.160
AluminumD-5 16 × 100 0.400 × 0.280 160 17.7  0.960
AluminumD-6 20 × 110 0.355 × 0.250 126 15.3  0.855
AluminumD-7 22 × 120 0.315 × 0.224 115 15.5  0.763
AluminumD-8 24 × 110 0.355 × 0.250 97 11.3  0.855
AluminumD-9 28 × 150 0.280 × 0.180 92 15.9  0.640
AluminumD-10 35 × 170 0.224 × 0.160 69 12.8  0.544
AluminumD-11 40 × 200 0.180 × 0.135 63 15.4  0.430
AluminumD-12 50 × 300 0.160 × 0.090 55 20.0  0.340
AluminumD-13 60 × 500 0.140 × 0.055 51 34.1  0.252
AluminumD-14 80 × 430 0.125 × 0.063 32 16.6  0.251
AluminumD-15 100 × 120 0.063 × 0.023 23 37.6  0.109
AluminumD-16 118 × 750 0.063 × 0.036 23 21.5  0.135

Aluminum Wire Mesh Processing Technology

Slotted

Slotted

Laser Cutting

Laser Cutting

Stamping

Stamping

Binding/Framing

Binding/Framing

Forming

Forming

Welding

Welding

Sintered

Sintered

Pleated

Pleated

Molding

Molding

Custom Design

Custom Design

Aluminum Wire Mesh Deep-processing Products

We can produce filter assemblies with non-standard sizes, special shapes, and composite structures according to customer drawings or samples.

Aluminum Wire Mesh Quality Control System

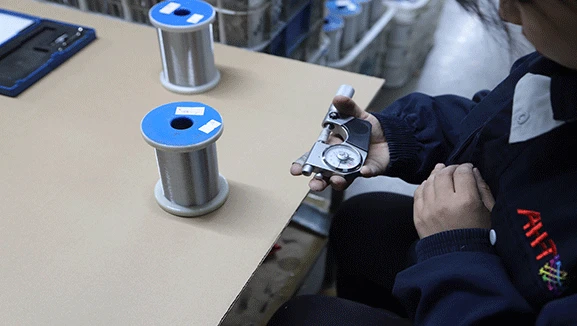

Raw material control

Raw material control

Spectrometer inspection at entry to ensure that the stainless steel wire meets the requirements.

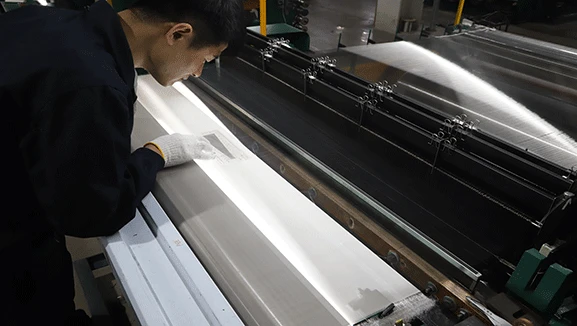

Production process inspection

Production process inspection

Using precision calipers, tool microscopes, CNC equipment, etc., to strictly test the mesh size.wire diameter, opening rate, and weight.

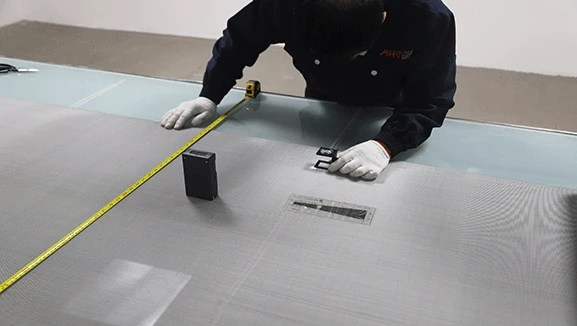

Weaving quality inspection

Weaving quality inspection

Ensure that the mesh surface is flat, free of broken or loose wires and the weaving is uniform.

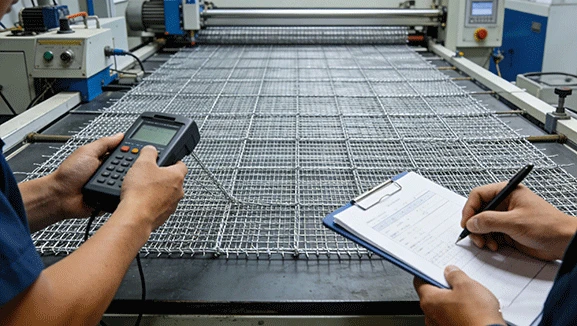

Final inspection

Final inspection

Before each batch of products leaves the factory, a final review of appearance and dimensions is conducted to ensure 100%consistency with customer requirements.

Packaging

Packaging

We will use inner paper tubes, waterproof paper, plastic film, plywood boxes and pallets for packaging to prevent damage to the goods during transportation.

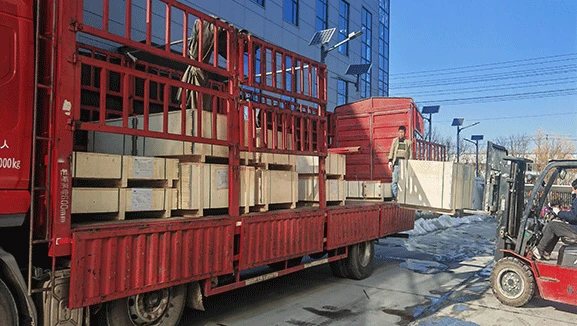

Shipment

Shipment

We will cooperate with reliable freight forwarders, closely monitor the logistics information of each batch of goods, and track the delivery status of customers in real time. Ensuring the safe and efficient delivery of each batch of wire mesh products to our customers is the principle we have long pursued.

Learn More >

Aluminum Wire Mesh Certificate

Aluminum Wire Mesh Certificate

Guangtong has obtained a comprehensive suite of authoritative international credentials, including ISO 9001, ISO 45001, ISO 14001, IATF 16949 Automotive Quality Management System, and AEO Customs Certification. Our rigorous quality management and standardized production processes fully comply with global industrial and export requirements.
