PRODUCT CATEGORY

Stainless Steel Welded Wire Mesh

Stainless steel welded wire mesh is typically categorized into welded wire mesh panels and rolls. Manufactured through automated welding processes, it offers excellent durability, wear resistance, and structural rigidity.

Inquire Now >>

Product Details

Technical Specifications

Customized Craftsmanship

Stainless Steel Welded Wire Mesh

Stainless steel welded wire mesh is manufactured through an advanced automated welding process with sophisticated techniques, offering comprehensive anti‑corrosive, wear resistance, and long-term durability. The combination of positive-polarity welding technology and the protective effect of chromium elements, coupled with resistance welding at each intersection point, significantly enhances the mesh's superior toughness, overall rigidity, corrosion resistance, and structural integrity. Even when cut into smaller squares, rectangles, or discs, the stainless steel welded wire mesh maintains its structural stability and performance without significant wear, making it an ideal choice for general industrial applications across construction, agriculture, commerce, and industrial sectors. For detailed information on stainless steel welded wire mesh products, please feel free to contact us. We are pleased to provide professional product recommendations and technical support tailored to your needs.

Stainless Steel Welded Wire Mesh Alloy

T-304:

Standard stainless steel alloy, with relatively common properties, inexpensive price, and suitable for most applications;

T-316:

A high-quality stainless steel alloy, often used in marine environments due to its high resistance to corrosion from salt, acid and seawater.

Both alloy types are available in fine, medium, and coarse pore size variants. Custom inquiries and specialized orders are welcome.

Stainless Steel Welded Wire Mesh Structure And Types

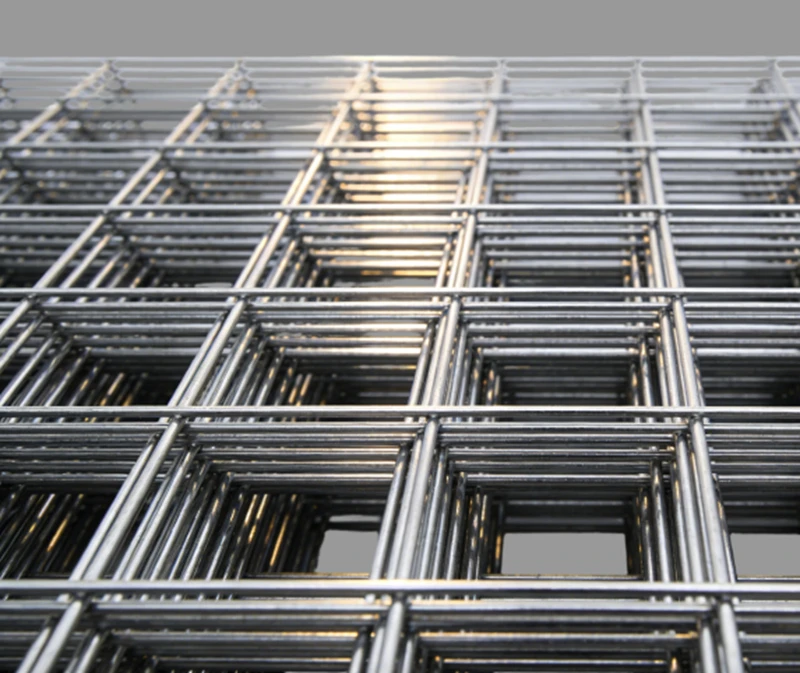

Stainless Steel Welded Wire Panels

Smooth surface with uniform apertures

High temperature resistance and corrosion resistance

Robust construction with cost-effectiveness

Custom-sized flat panels, suitable for standalone applications

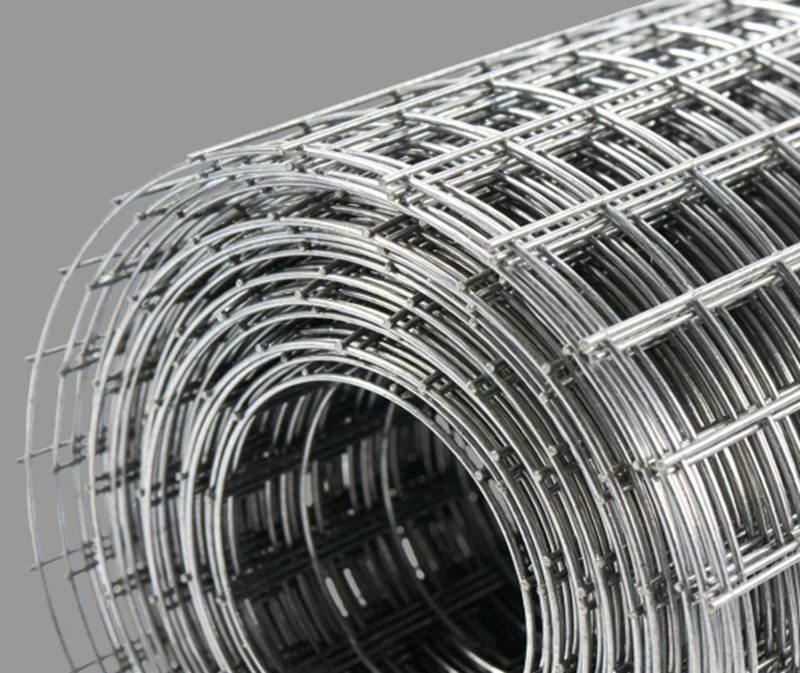

Stainless Steel Welded Wire Mesh Rolls

Corrosion Resistant and Oxidation Resistant

Robust Structure with Minimal Deformation

Customization Options Available

Continuous roll form ideal for large-area installation or on-demand cutting

Stainless Steel Welded Wire Mesh Features and Advantages

Excellent Corrosion Resistance

The addition of alloying elements such as chromium and nickel to the raw materials of stainless steel welded wire mesh forms a dense chromium-rich oxide layer on the surface, endowing it with exceptional rust resistance in various harsh environments.

Robust Structure

The stainless steel welded wire mesh is made using resistance welding, ensuring a molten metallurgical bond at each intersection. This guarantees extremely high tensile strength and overall rigidity, allowing it to maintain its shape and resist deformation even under external impact.

Long Service Life

Combining inherent high hardness with excellent toughness, along with advanced processing techniques, the stainless steel welded wire mesh exhibits superior surface wear resistance. It resists breakage or weld-point cracking during prolonged use, significantly prolonging its service life.

Superior Air Permeability

Guangtong's stainless steel welded wire mesh undergoes specialized processing and surface treatment, resulting in a smooth, flat mesh surface with uniform apertures that ensure optimal permeability.

Excellent Processability

Despite its high strength, stainless steel welded wire mesh retains sufficient ductility to accommodate various deep-processing operations—such as cutting, stamping, and crimping—according to customer requirements. The edges remain burr-free and unworn after processing.

Stainless Steel Welded Wire Mesh Packaging

Stainless Steel Welded Wire Panels

Welded Wire Mesh Roll

Plastic Film

Pallets

Plastic Film

Plywood Cases

Pallets

Technical Specifications

Guangtong Welded Wire Mesh Specification List
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)
1/4"×1/4"	6.4mm×6.4mm	22, 23, 24
3/8"×3/8"	10.6mm×10.6mm	19, 20, 21, 22
1/2"×1/2"	12.7mm×12.7mm	16, 17, 18, 19, 20, 21, 22, 23
5/8"×5/8"	16mm×16mm	18, 19, 20, 21
3/4"×3/4"	19.1mm×19.1mm	16, 17, 18, 19, 20, 21
1"×1/2"	25.4mm×12.7mm	16, 17, 18, 19, 20, 21
1-1/2"×1-1/2"	38mm×38mm	14, 15, 16, 17, 18, 19
1"×2"	25.4mm×50.8mm	14, 15, 16
2"×2"	50.8mm×50.8mm	12, 13, 14, 15, 16
Technical Note: 1.Standard roll length: 30m; width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Guangtong Galvanized Fencing Mesh Specification List
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)
2"×3"	50mm×75mm	2.0mm, 2.5mm, 1.65mm
3"×3"	75mm×756mm	2.67mm, 2.41mm, 2.11mm, 1.83mm, 1.65mm
2"×4"	50mm×100mm	2.11mm, 2.5mm
4"×4"	100mm×100mm	2.0mm, 2.5mm
Technical Note: 1.Standard roll length: 30m; width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Guangtong PVC Coated Welded Mesh Specification List
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)
1/2"×1/2"	12.7mm×12.7mm	16, 17, 18, 19, 20, 21
3/4"×3/4	19mm×19mm	16, 17, 18, 19, 20, 21
1"×1"	25.4mm×25.4mm	15, 16, 17, 18, 19, 20
Technical Note: 1.Standard roll length: 30m; width: 0.5m to 1.2m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Stainless Steel Welded Wire Mesh Processing Technology

Slotted

Laser Cutting

Stamping

Binding/Framing

Forming

Welding

Sintered

Pleated

Molding

Custom Design

Learn More >

Stainless Steel Welded Wire Mesh Deep-processing Products

We can produce filter assemblies with non-standard sizes, special shapes, and composite structures according to customer drawings or samples.

Stainless Steel Pleated Filter Cartridge

Sintered Stainless Steel Tube

Cylindrical Mesh Filter

Stainless Steel Pre-filter

Perforated Metal Tube

Wire Mesh Filter Discs

Leaf Disc Filter

Extruder Screens

Wedge Wire Filter

Stainless Steel Cone Filter

Stainless Steel Filter Basket

Stainless Steel Welded Wire Mesh Quality Control System

Raw material control

Before raw materials are received into the warehouse, they must be tested with a spectrometer to ensure that the stainless steel wire meets the requirements;

Production process inspection

Using precision calipers, tool microscopes, CNC equipment, etc., to strictly test the mesh size, wire diameter, opening rate, and weight, etc.

Weaving quality inspection

Ensure that the mesh surface is flat, without broken threads, no loose threads, and the weaving is uniform.

Final inspection

Before each batch of products leaves the factory, a final review of appearance and dimensions is conducted to ensure 100% consistency with customer requirements.

Packaging

We will use inner paper tubes, waterproof paper, plastic film, plywood boxes and pallets for packaging to prevent damage to the goods during transportation.

Shipment

We will cooperate with reliable freight forwarders, closely monitor the logistics information of each batch of goods, and track the delivery status of customers in real time. Ensuring the safe and efficient delivery of each batch of wire mesh products to our customers is the principle we have long pursued.

Learn More >

Stainless Steel Welded Wire Mesh Certificates

Guangtong has obtained a comprehensive suite of authoritative international credentials, including ISO 9001, ISO 45001, ISO 14001, IATF 16949 Automotive Quality Management System, and AEO Customs Certification. Our rigorous quality management and standardized production processes fully comply with global industrial and export requirements.

Learn More >
