Twill Weave Wire Mesh

Twill Weave Wire Mesh, manufactured using advanced weaving machinery, exhibits high mechanical strength, superior pressure resistance, and a broad range of applications.

Inquire Now >> Next Product >>

Product Details

Technical Specifications

Customized Craftsmanship

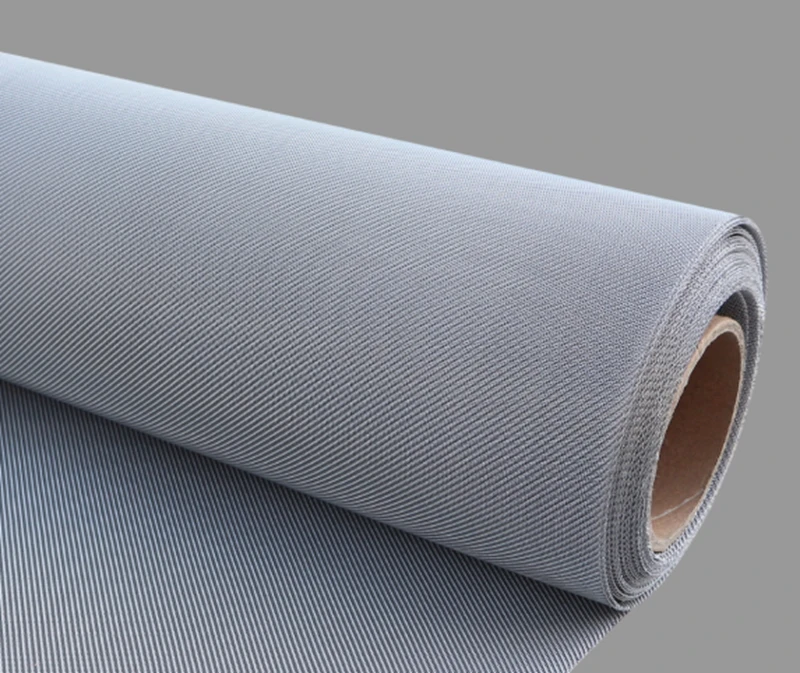

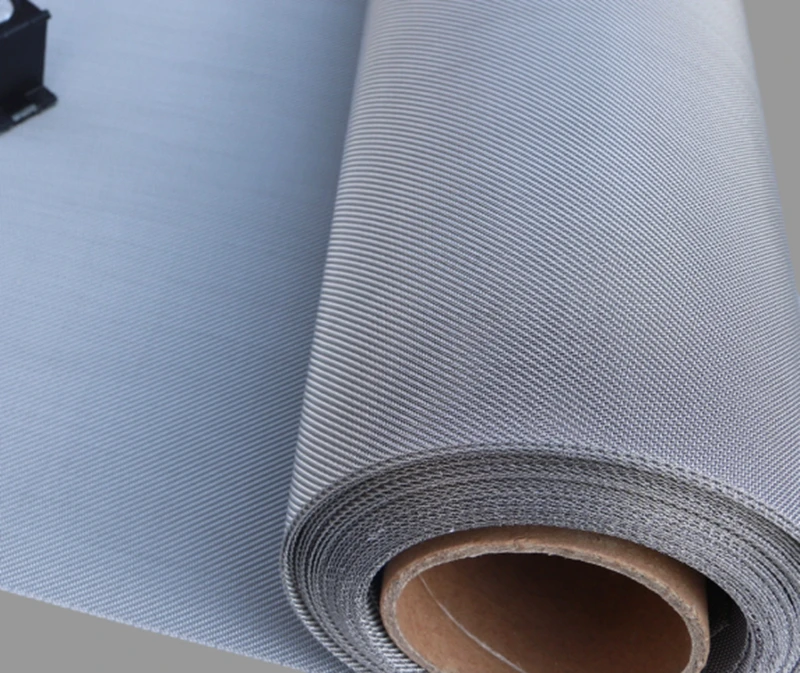

Twill Weave Wire Mesh

In a twill weave mesh, each warp wire alternately passes over and under two consecutive weft wires, creating an interwoven staggered arrangement across adjacent wefts. This structure results in uniform mesh openings with identical warp and weft wire diameters, presenting a distinctive parallel twill appearance. As a type of metallic woven mesh produced using advanced weaving machinery, the twill weave mesh exhibits high pressure resistance and is widely employed as a metal filter cloth for gas, liquid, and solid filtration. For further details regarding our product specifications, please feel free to contact us. We are committed to offering professional product recommendations and comprehensive technical support.

Twill Weave Wire Mesh Materials

We offer customization of various metal materials according to customer requirements.

Stainless Steel Wire Mesh

Brass Wire Mesh

Epoxy Coated Wire Mesh

Twill Weave Wire Mesh Features and Advantages

High Tensile Strength

Twill-woven mesh supports the use of relatively thick wires, offering excellent resistance to impact, pressure differentials, and deformation and damage. It is well-suited for high-pressure and backwash operating conditions.

Stable Filtration Accuracy & Wide Range of Grades

Twill-woven mesh is available in a broad selection of mesh counts, including high-mesh options, ensuring consistent filtration precision. It is the preferred choice for medium to high-accuracy filtration applications.

High Flow Capacity

With uniform porosity and low flow resistance, twill-woven mesh provides superior fluid permeability and minimal pressure drop, enabling higher filtration efficiency.

Excellent Processability

The smooth surface and good elasticity of twill-woven mesh facilitate various processing techniques, making it highly compatible with a wide range of advanced metal filter manufacturing processes.

Twill Weave Wire Mesh Packaging

Inner paper tubes

Waterproof paper

Plastic film

Plywood boxes

Pallets

Technical Specifications

Guangtong Twill Weave Wire Mesh Specification
Meshes per linear inch		Mesh Opening	Open Area
	mm	mm	%
150×150	0.07	0.0993	34.4
165×165	0.058	0.0959	38.83
180×180	0.058	0.0831	34.69
200×200	0.058	0.069	29.52
225×225	0.05	0.069	33.62
235×235	0.045	0.0631	34.07
250×250	0.04	0.0616	36.76
270×270	0.04	0.0541	33.05
280×280	0.04	0.0507	31.25
300×300	0.035	0.0497	34.43
300×300	0.038	0.0467	30.4
300×300	0.04	0.0447	27.85
315×315	0.035	0.0456	32.01
325×325	0.035	0.0432	30.52
350×350	0.035	0.0376	26.82
350×350	0.03	0.0426	34.43
363×363	0.03	0.04	32.65
385×385	0.03	0.0377	31.01
400×400	0.025	0.0385	36.76
400×400	0.028	0.0355	31.25
400×400	0.03	0.0335	27.83
420×420	0.03	0.0302	25.17
450×450	0.025	0.0314	31
500×500	0.025	0.0258	25.79
510×510	0.025	0.0248	24.8
530×530	0.024	0.0239	24.9
635×635	0.018	0.022	30.25
635×635	0.02	0.02	25
800×800	0.016	0.0164	25.62

Twill Weave Wire Mesh Process Technology

Slotting

Laser Cutting

Stamping

Binding/Framing

Forming

Welding

Sintered

Pleated

Molding

Custom Design

Learn More >

Twill Weave Wire Mesh Deep-processing Products

We can produce filter assemblies with non-standard sizes, special shapes, and composite structures according to customer drawings or samples.

Stainless Steel Pleated Filter Cartridge

Sintered Stainless Steel Tube

Cylindrical Mesh Filter

Stainless Steel Pre-filter

Perforated Metal Tube

Wire Mesh Filter Discs

Leaf Disc Filter

Extruder Screens

Wedge Wire Filter

Stainless Steel Cone Filter

Stainless Steel Filter Basket

Twill Weave Wire Mesh Quality Control System

Raw material control

Spectrometer inspection upon entry to ensure that the stainless steel wire meets the requirements.

Production process inspection

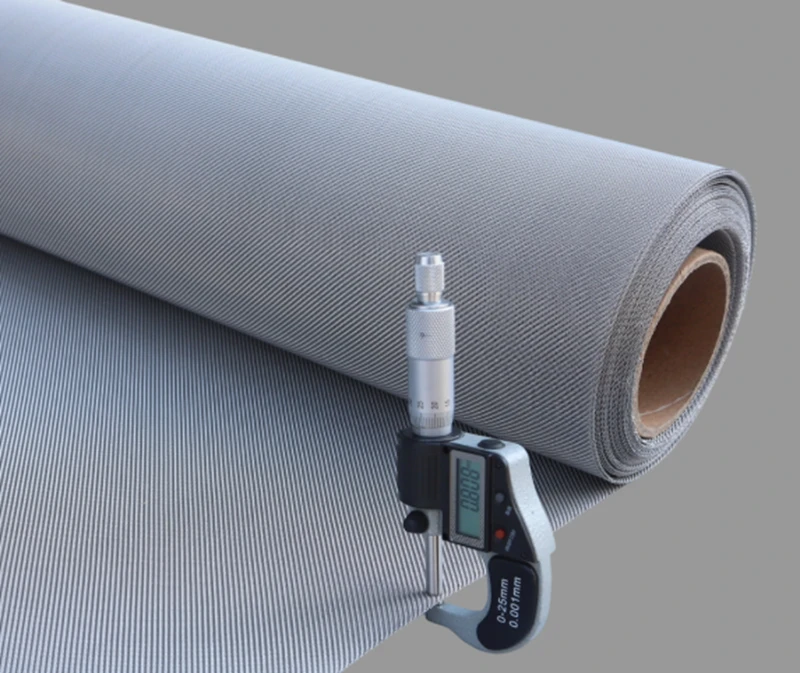

Using precision calipers, tool microscopes, CNC equipment, etc., to strictly test the mesh size, wire diameter, opening rate, and weight, etc.

Weaving quality inspection

Ensure that the mesh surface is flat, free of broken or loose threads, and the weaving is uniform.

Final inspection

Before each batch of products leaves the factory, a final review of appearance and dimensions is conducted to ensure 100% consistency with customer requirements.

Packaging

We will use inner paper tubes, waterproof paper, plastic film, plywood boxes and pallets for packaging to prevent damage to the goods during transportation.

Shipment

We will cooperate with reliable freight forwarders, closely monitor the logistics information of each batch of goods, and track the delivery status of customers in real time. Ensuring the safe and efficient delivery of each batch of wire mesh products to our customers is the principle we have long pursued.

Learn More >

Twill Weave Wire Mesh Certificates

Guangtong has obtained a comprehensive suite of authoritative international credentials, including ISO 9001, ISO 45001, ISO 14001, IATF 16949 Automotive Quality Management System, and AEO Customs Certification. Our rigorous quality management and standardized production processes fully comply with global industrial and export requirements.

Learn More >

FAQ

Your question, let me help you answer it

Learn More >

SUCCESS CASES

Customized as per your needs, providing you with a one-stop solution for filtration requirements

Learn More >

24-hour 1v1 exclusive service

Learn More >

Customer Testimonials

Alexandra

US market

Our beverage factory has strict requirements for food safety, Guangtong customized a stainless steel pleated filter element for our filtration equipment, which exceeded our expectations completely. The R&D team of Guangtong had detailed communication with us to confirm the details on the drawings (including dimensions, material, filtration accuracy, etc.). This stainless steel pleated filter element fully meets our requirements. Its surface is polished to a mirror finish (roughness of 0.4 microns), and there are no installation problems. During use, it can effectively remove impurities from the juice while retaining the original flavor. The 3l6L stainless steel material enables it to withstand repeated high-temperature sterilization and maintain stable filtration accuracy, with a filtration efficiency of 99.6%, this has significantly enhanced our production efficiency and enabled us to successfully pass the FDA inspection. The rapid response mechanism, the professional R&D team, and the rigorous quality control have facilitated our subsequent collaboration and enabled us to become long-term partners.

Oliver Fuchs

European market

As a chemical enterprise, we established contact with Guangtong this year and inquired about a metal sintered filter element. Guangtong provided a complete ISO certificate and customized a sintered filter with high temperature tolerance up to 200 degrees Celsius based on our filter medium drawings. This sintered filter has been in use for 6 months and has not shown any leakage. Compared with previous sintered filter suppliers, its maintenance cost has been reduced by 40%. For an enterprise with customization needs like ours, we highly recommend it!

Afri o.

Southeast Asian market

Guangtong has specially designed a large-capacity stainless steel mesh filter for our municipal water treatment project in Indonesia. This stainless steel filter has a large filtration area and a processing capacity of up to 500L/h, fully meeting our requirements for filtration efficiency and accuracy. It has been operating stably for one year without any deformation or clogging issues, and the maintenance cost is also low. We highly appreciate Guangtong's professional customization capabilities and after-sales maintenance work, and look forward to future cooperation.

South Africa

Europe

Southeast Asia

South Korea

Japan

Australia

New Zealand

Canada

America

South America

Anping Guangtong Hardware Wire Mesh Co., Ltd.
