Stainless Steel Knitted Wire Mesh

Stainless steel knitted wire mesh is a type of woven wire mesh fabricated using a crocheting technique, available in two surface types: flat and corrugated. It exhibits excellent flexibility and is easy to process and maintain.

Inquire Now >> Next Product >>

Product Details

Technical Specifications

Customized Craftsmanship

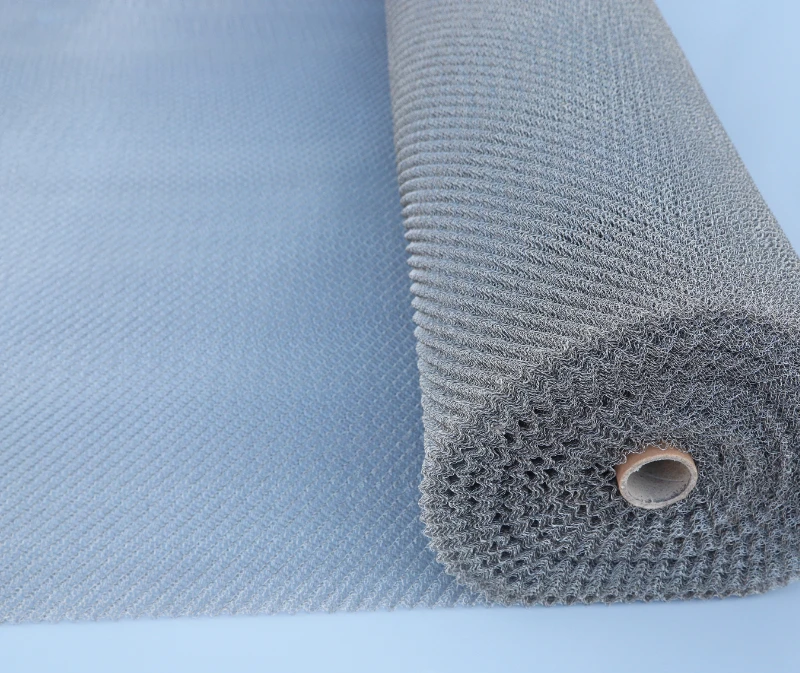

Stainless Steel Knitted Wire Mesh

Stainless steel knitted wire mesh is a continuously crocheted knitted fabric manufactured through an interlocking loop knitting process, which forms an exceptionally robust and flexible mesh structure that is subsequently flattened and coiled. Guangtong has achieved significant advancements in both width and precision by adopting newly introduced production technologies and equipment. This enables the stainless steel gas-liquid mesh to meet key technical specifications, including oil-free knitting, pinhole-free surfaces, and uniform mesh openings. For further details regarding stainless steel knitted wire mesh, please feel free to contact us. We are committed to providing professional product recommendations and technical support.

Stainless Steel Knitted Wire Mesh Technology

Types of Stainless Steel Knitted Wire Mesh

Types of Stainless Steel Braided Mesh Strands

Surface Types of Stainless Steel Knitted Mesh

Knitted Wire Mesh Gaskets

Round Wire

Round wire stainless steel vapor-liquid mesh is the most widely applied type.

Flat Wire

Flat wire stainless steel vapor-liquid mesh offers a larger surface area and higher filtration efficiency.

Single-Strand Knitted

Featuring a simple structure and high cost-effectiveness, it is widely used in general applications.

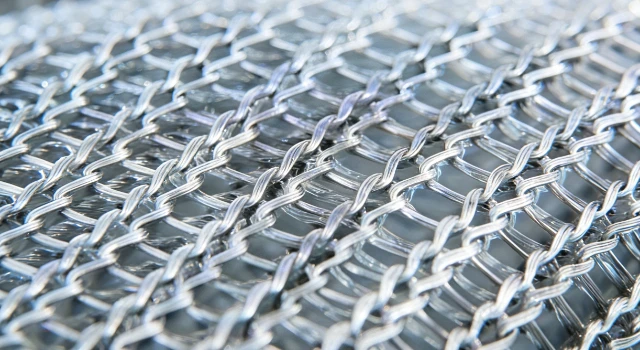

Multi-Strand Knitted

Building on the properties of conventional stainless steel knitted mesh, multi-strand knitted mesh provides a larger surface area and superior strength, primarily employed in heavy-duty applications.

Double-Strand Knitted: In addition to the characteristics of standard stainless steel knitted mesh, double-strand knitted mesh exhibits enhanced performance advantages.

Flat Type

A standard surface type suitable for general applications.

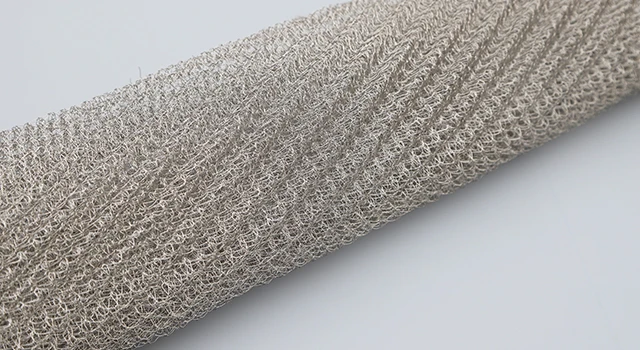

Embossed Type

Applicable across various industrial sectors.

Knitted Wire Mesh Gaskets

Knitted wire mesh gaskets are made from metal wire mesh or metal mesh encapsulated with an elastomer core, and are utilized for electromagnetic interference (EMI) and radio frequency interference (RFI) shielding in electronic equipment.

Stainless Steel Knitted Wire Mesh Features and Advantages

Clean mesh surface

Guangtong has introduced advanced technology to achieve an oil-free knitting process, ensuring a clean mesh surface and uniform aperture.

High filtration efficiency

The Stainless steel knitted wire mesh features a lofty layered structure with minimal resistance. Its specialized weaving technique effectively captures fine particulates, achieving superior filtration performance.

Robust and durable construction

Made from premium stainless steel, the knitted mesh offers excellent heat and corrosion resistance, along with high mechanical strength. Its structural integrity ensures long-term reliability and extended service life.

Easy processing and maintenance

With a straightforward design and specialized manufacturing process, the mesh combines lightweight properties with outstanding flexibility. It facilitates straightforward maintenance and supports industrial processing operations including cutting, bending, and stretching.

Energy-efficient and cost-effective

The mesh demonstrates exceptional cleanability, allowing repeated regeneration cycles through washing. This characteristic results in low maintenance costs and high cost-effectiveness.

Stainless Steel Knitted Wire Mesh Packaging

Inner Paper Tubes

Corrugated Boxes

Plywood Cases

Technical Specifications

Guangtong Round Wire Knitted Mesh Specifications
Type	Wire Diameter (mm)	Width (mm)	Number of Stitches Per cm on Length	Number ofStitches Per cm Across Lay Flat
Fine Mesh	0.08-0.18	6-300	3.5	4.4
Medium-Fine Mesh	0.16	40-600	2.4	3.5
Standard Mesh	0.08-0.35	30-1000	1.6	1.9
Coarse Mesh	0.25-0.40	30-1000	1.6	0.74
Super Coarse Mesh	0.4-0.5	100-350	0.5	0.5

Guangtong Flat Wire Knitted Mesh Specifications
Wire Diameter (mm)	Mesh Opening/Loop Size (mm)	Number of Needles	Maximum Width (mm)	Minimum Width (mm)
0.1×0.3	2×4	36	60	55
0.1×0.3	4.5×4, 2.5×4	34	150	100
0.1×0.4	4.5×5.5, 2.5×5.5	40	150	120
0.1×0.4	4×3.5, 2.5×3.5	56	205	180
0.1×0.4	4×4, 3×4	65	260	240
0.2×0.4	5.2×3.5, 3×3.5	94	420	380
0.2×0.4	7.5×5, 5×5	102	565	490
0.2×0.5	5×4, 2.5×4	128	560	470

Stainless Steel Knitted Wire Mesh Deep-processing Products

We can produce filter assemblies with non-standard sizes, special shapes, and composite structures according to customer drawings or samples.

Stainless Steel Pleated Filter Cartridge

Sintered Stainless Steel Tube

Cylindrical Mesh Filter

Stainless Steel Pre-filter

Perforated Metal Tube

Wire Mesh Filter Discs

Leaf Disc Filter

Extruder Screens

Wedge Wire Filter

Stainless Steel Cone Filter

Stainless Steel Filter Basket

Stainless Steel Knitted Wire Mesh Quality Control System

Raw Material Control

Spectrometer testing ensures the stainless steel wire meets requirements

Production Process Inspection

Using precision calipers, tool microscopes, CNC equipment, etc., to strictly test the mesh size, wire diameter, opening rate, and weight, etc.

Weaving Quality Inspection

Ensure the mesh surface is flat, free from broken wires and skipped wires, with uniform weaving.

Final Inspection

Before shipment, each batch will undergo a final inspection of appearance and dimensions to ensure 100% compliance with customer requirements.

Packaging

We will use inner paper tubes, waterproof paper, plastic film, plywood boxes and pallets for packaging to prevent damage to the goods during transportation.

Shipment

We will cooperate with reliable freight forwarders, closely monitor the logistics information of each batch of goods, and track the delivery status of customers in real time. Ensuring the safe and efficient delivery of each batch of wire mesh products to our customers is the principle we have long pursued.

Learn More >

Stainless Steel Knitted Wire Mesh Certificates

Guangtong has obtained a comprehensive suite of authoritative international credentials, including ISO 9001, ISO 45001, ISO 14001, IATF 16949 Automotive Quality Management System, and AEO Customs Certification. Our rigorous quality management and standardized production processes fully comply with global industrial and export requirements.
