Knitted Copper Mesh

Guangtong knitted copper mesh is made from 99.9% pure copper using oil-free weaving, producing a clean, uniform surface with excellent high-temperature and corrosion resistance.

Inquire Now >> Next Product >>

Product Details

Technical Specifications

Customized Craftsmanship

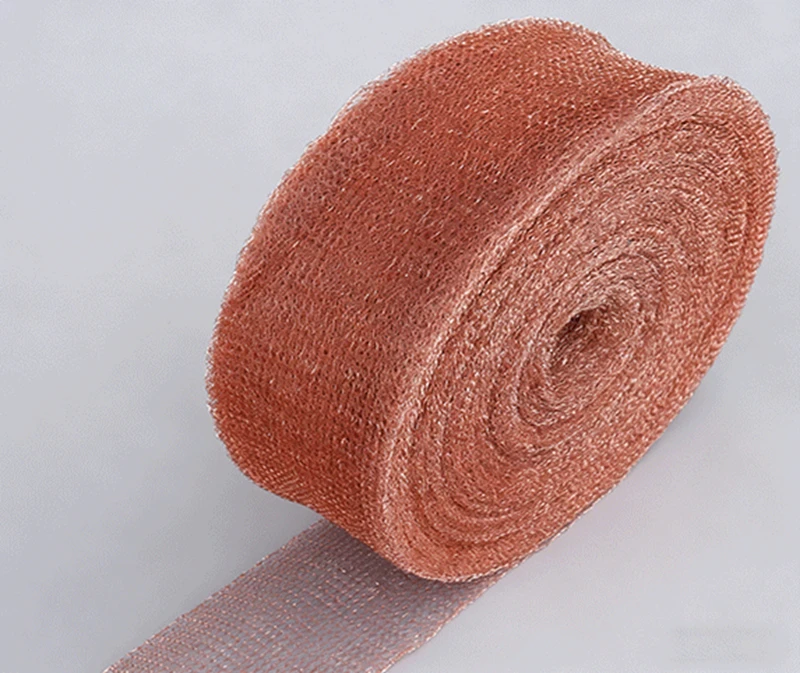

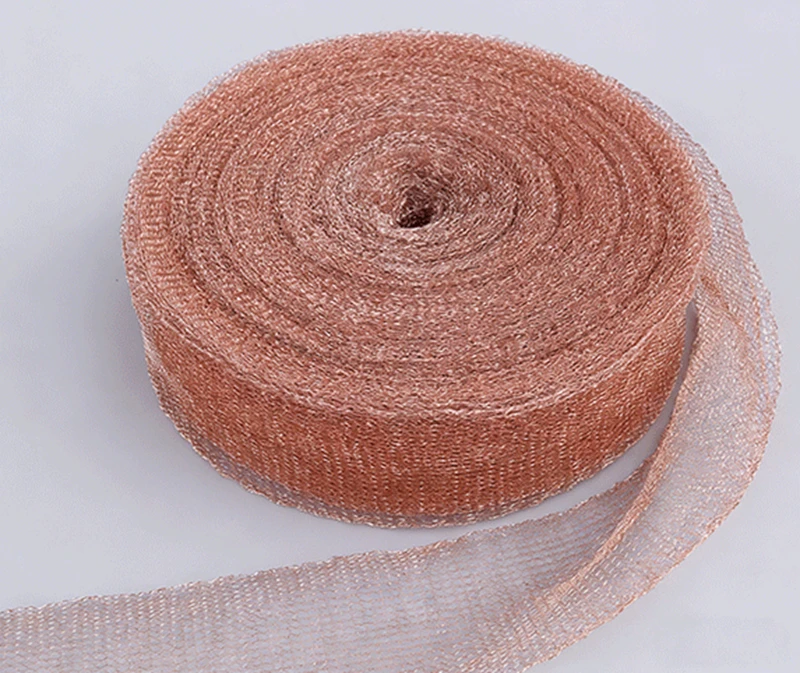

Knitted Copper Mesh

The knitted copper mesh is a knitted textile product continuously crocheted from 99.9% pure copper wires, fabricated by interlocking a series of looped structures into an exceptionally robust yet flexible mesh, which is subsequently flattened and coiled. Compared to stainless steel vapor-liquid mesh, the copper variant exhibits superior softness and atmospheric corrosion resistance, though it is susceptible to oxidizing agents. Its unique interlocking loop configuration endows the copper vapor-liquid mesh with outstanding ductility, electrical conductivity, flexibility, and durability, making it widely applicable in radio frequency interference shielding, Faraday cages, HVAC systems for roofing, and various electrical applications. Guangtong has introduced advanced production facilities and R&D teams, with the added advantage of oil-free knitting technology. For further details regarding knitted copper mesh, please feel free to contact us for professional product recommendations and technical support.

Knitted Copper Mesh Features and Advantages

Clean Mesh Pattern

Guangtong utilizes advanced technology and adopts an oil-free weaving process to produce copper knitted mesh, characterized by its clean and uniformly structured apertures.

Excellent Electrical Conductivity and EMI Shielding

Copper is inherently an excellent conductive material, containing free electrons within its structure. The knitted configuration forms a metallic mesh that effectively attenuates electromagnetic waves, providing superior conductivity and electromagnetic interference suppression.

Ease of Processing and Maintenance

The manufacturing process of copper knitted mesh endows it with outstanding elasticity and flexibility, resisting permanent deformation. It is easy to maintain, cut, bend, stretch, and process in industrial applications.

Corrosion Resistance and High-Temperature Endurance

The copper gas-liquid mesh exhibits strong resistance to atmospheric, water, and partial chemical media corrosion, maintaining stable performance in various harsh environments and ensuring a long service life.

Energy Efficiency and Cost-Effectiveness

The copper gas-liquid mesh demonstrates exceptional cleaning capabilities, allowing for reverse flushing and ultrasonic cleaning. It features low maintenance costs and offers high cost-performance ratio.

Knitted Copper Mesh Packaging

Inner Paper Tubes

Corrugated Boxes

Plywood Cases

Technical Specifications

Guangtong Round Wire Knitted Mesh Specifications
Type	Wire Diameter (mm)	Width (mm)	Number of Stitches Per cm on Length	Number of Stitches Per cm Across Lay Flat
Fine Mesh	0.08-0.18	6-300	3.5	4.4
Medium-Fine Mesh	0.16	40-600	2.4	3.5
Standard Mesh	0.08-0.35	30-1000	1.6	1.9
Coarse Mesh	0.25-0.40	30-1000	1.6	0.74
Super Coarse Mesh	0.4-0.5	100-350	0.5	0.5

Guangtong Flat Wire Knitted Mesh Specifications
Wire Diameter (mm)	Mesh Opening/Loop Size (mm)	Number of Needles	Maximum Width (mm)	Minimum Width (mm)
0.1×0.3	2×4	36	60	55
0.1×0.3	4.5×4, 2.5×4	34	150	100
0.1×0.4	4.5×5.5, 2.5×5.5	40	150	120
0.1×0.4	4×3.5, 2.5×3.5	56	205	180
0.1×0.4	4×4, 3×4	65	260	240
0.2×0.4	5.2×3.5, 3×3.5	94	420	380
0.2×0.4	7.5×5, 5×5	102	565	490
0.2×0.5	5×4, 2.5×4	128	560	470

Knitted Copper Mesh Deep-processing Products

We can produce filter assemblies with non-standard sizes, special shapes, and composite structures according to customer drawings or samples.

Stainless Steel Pleated Filter Cartridge

Sintered Stainless Steel Tube

Cylindrical Mesh Filter

Stainless Steel Pre-filter

Perforated Metal Tube

Wire Mesh Filter Discs

Leaf Disc Filter

Extruder Screens

Wedge Wire Filter

Stainless Steel Cone Filter

Stainless Steel Filter Basket

Knitted Copper Mesh Quality Control System

Raw Material Control

Spectrometer testing ensures the stainless steel wire meets requirements

Production Process Inspection

Using precision calipers, tool microscopes, CNC equipment, etc., to strictly test the mesh size, wire diameter, opening rate, and weight, etc.

Weaving Quality Inspection

Ensure the mesh surface is flat, free from broken wires and skipped wires, with uniform weaving.

Final Inspection

Before shipment, each batch will undergo a final inspection of appearance and dimensions to ensure 100% compliance with customer requirements.

Packaging

We will use inner paper tubes, waterproof paper, plastic film, plywood boxes and pallets for packaging to prevent damage to the goods during transportation.

Shipment

We will cooperate with reliable freight forwarders, closely monitor the logistics information of each batch of goods, and track the delivery status of customers in real time. Ensuring the safe and efficient delivery of each batch of wire mesh products to our customers is the principle we have long pursued.

Learn More >

Knitted Copper Mesh Certificates

Guangtong has obtained a comprehensive suite of authoritative international credentials, including ISO 9001, ISO 45001, ISO 14001, IATF 16949 Automotive Quality Management System, and AEO Customs Certification. Our rigorous quality management and standardized production processes fully comply with global industrial and export requirements.
