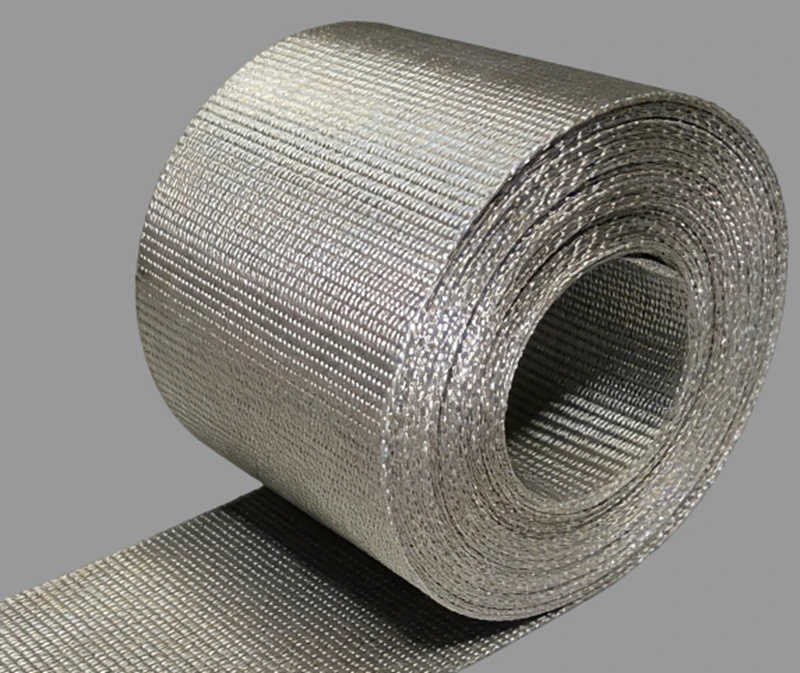

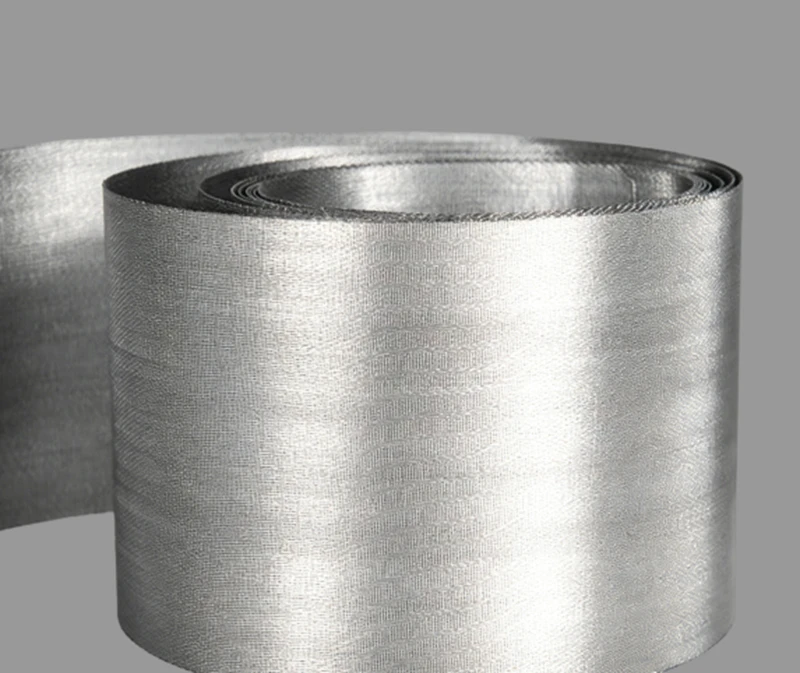

Reversed Plain Dutch Weave Wire Mesh

Reversed Plain Dutch Weave wire mesh, a distinctive weaving variant within the screen mesh category, features high mechanical strength and superior resistance to deformation, engineered to address specialized filtration and screening challenges in specific operating conditions.

Inquire Now >> Next Product >>

Product Details

Technical Specifications

Customized Craftsmanship

Reversed Plain Dutch Weave Wire Mesh

The reverse plain dutch weave mesh employs a specialized fabrication method characterized by fine and densely arranged warp wires interlacing with coarser, sparser weft wires, forming triangular-shaped apertures. This configuration results in a high-precision metallic filter screen with superior sealing performance. Recognized for its structural robustness and dimensional stability, the reverse plain Dutch weave mesh is particularly suitable for solid-liquid filtration applications requiring high mechanical strength and pressure endurance. For detailed product specifications, please feel free to contact us for professional product recommendations and technical support.

Reversed Plain Dutch Weave Wire Mesh Materials

We offer customization of various metal materials according to customer requirements.

Stainless Steel Wire Mesh

Brass Wire Mesh

Epoxy Coated Wire Mesh

Monel Wire Mesh

Nickel Wire Mesh

Mild Steel Wire Mesh

Reversed Plain Dutch Weave Wire Mesh Features and Advantages

High Filtration Precision

The reverse plain twill Dutch weave mesh employs a specialized weaving technique, resulting in a smooth surface, uniform apertures, and fine warp wires. This design maximizes the filtration area while achieving micron-level precision filtration.

High Strength and Durability

Reinforced by thick weft wires that provide robust structural support, the mesh exhibits exceptional durability and load-bearing capacity, maintaining its integrity without deformation under high-pressure conditions.

Superior Material Quality

Our factory rigorously selects raw materials, including 304/316L stainless steel, Monel, nickel, Hastelloy, and other specialized alloys. These materials offer superior corrosion resistance, rust prevention, tear resistance, and abrasion resistance, ensuring an extended service life.

High Dirt-Holding Capacity

Although the reverse plain twill Dutch weave mesh primarily functions via surface filtration, its dense warp wires and excellent sealing properties prevent bypass flow, enabling substantial contaminant retention.

Excellent Backwash Performance

The unique filtration mechanism of the reverse plain twill Dutch weave mesh facilitates efficient cleaning and backwash of retained impurities, supporting repeated use and prolonging operational lifespan.

Reversed Plain Dutch Weave Wire Mesh Packaging

Inner paper tubes

Waterproof paper

Plastic film

Plywood boxes

Pallets

Technical Specifications

Guangtong Reversed Plain Dutch Weave Mesh Specifications
Model	Mesh Count	Warp Wire Diameter		Weft Wire Diameter		Porosity	Thickness		Weight	Filter Rating
–	–	Inch	mm	Inch	mm	%	Inch	mm	kg/m²	μm
RPDW-66200	66 × 18	0.012	0.3	0.016	0.4	66	0.042	1.07	2.22	200
RPDW-49150	84 × 25	0.013	0.32	0.016	0.4	49	0.043	1.09	3.09	150
RPDW-53100	130 × 30	0.008	0.2	0.018	0.45	53	0.032	0.82	2.82	100
RPDW-56080	130 × 35	0.008	0.2	0.016	0.4	56	0.03	0.75	2.7	80
RPDW-58104	175 × 40	0.006	0.15	0.014	0.35	58	0.022	0.55	2.24	104
RPDW-56100	175 × 45	0.006	0.15	0.013	0.32	56	0.024	0.62	2.16	100
RPDW-53060	175 × 50	0.006	0.15	0.012	0.3	53	0.022	0.56	2.14	60
RPDW-50050	290 × 60	0.004	0.09	0.009	0.23	50	0.016	0.4	1.36	50
RPDW-52040	290 × 74	0.004	0.09	0.008	0.2	52	0.014	0.36	1.27	40

Reversed Plain Dutch Weave Wire Mesh Process Technology

Slotting

Laser Cutting

Stamping

Binding/Framing

Forming

Welding

Sintered

Pleated

Molding

Custom Design

Learn More >

Reversed Plain Dutch Weave Wire Mesh Deep-processing Products

We can produce filter assemblies with non-standard sizes, special shapes, and composite structures according to customer drawings or samples.

Stainless Steel Pleated Filter Cartridge

Sintered Stainless Steel Tube

Cylindrical Mesh Filter

Stainless Steel Pre-filter

Perforated Metal Tube

Wire Mesh Filter Discs

Leaf Disc Filter

Extruder Screens

Wedge Wire Filter

Stainless Steel Cone Filter

Stainless Steel Filter Basket

Reversed Plain Dutch Weave Wire Mesh Quality Control System

Raw material control

Spectrometer inspection upon entry to ensure that the stainless steel wire meets the requirements.

Production process inspection

Using precision calipers, tool microscopes, CNC equipment, etc., to strictly test the mesh size, wire diameter, opening rate, and weight, etc.

Weaving quality inspection

Ensure that the mesh surface is flat, free of broken or loose threads, and the weaving is uniform.

Final inspection

Before each batch of products leaves the factory, a final review of appearance and dimensions is conducted to ensure 100% consistency with customer requirements.

Packaging

We will use inner paper tubes, waterproof paper, plastic film, plywood boxes and pallets for packaging to prevent damage to the goods during transportation.

Shipment

We will cooperate with reliable freight forwarders, closely monitor the logistics information of each batch of goods, and track the delivery status of customers in real time. Ensuring the safe and efficient delivery of each batch of wire mesh products to our customers is the principle we have long pursued.

Learn More >

Reversed Plain Dutch Weave Wire Mesh Certificates

Guangtong has obtained a comprehensive suite of authoritative international credentials, including ISO 9001, ISO 45001, ISO 14001, IATF 16949 Automotive Quality Management System, and AEO Customs Certification. Our rigorous quality management and standardized production processes fully comply with global industrial and export requirements.

Learn More >
