Plain Dutch Weave Wire Mesh
Plain Dutch Weave Wire Mesh
Plain Dutch Weave Wire Mesh

Plain Dutch Weave Wire Mesh

Plain Dutch weave wire mesh uses a plain weave structure, yet is distinct from standard plain woven mesh. Characterized by its high tensile strength and superior filtration precision, it is a specialized type of metal woven mesh designed for fine filtration applications.

share:

Product Details

Technical Specifications

Customized Craftsmanship

Plain Dutch Weave Wire Mesh

Plain Dutch Weave Mesh uses a "one-over-one-under" interlacing pattern, featuring relatively thick warp wires and finer weft wires. The weft wires are woven with exceptional density, forming a tapered or conical structure, making it a precision-woven mesh specifically engineered for depth filtration applications. This distinctive weaving technique not only enhances the tensile strength of the mesh but also achieves high-precision particle retention, rendering it ideal for the filtration and separation of liquids and slurries. For further product details, please feel free to contact us. Our team is ready to provide professional product recommendations and technical support.

Plain Dutch Weave Wire Mesh Materials

We offer customization of various metal materials according to customer requirements.

Plain Dutch Weave Wire Mesh Features and Advantages

01

Filtering Accuracy and Stability

Plain Dutch weave mesh features uniformly fine pores that provide micron-level precision filtration, exhibiting rapid flow rates and exceptional particle retention efficiency.

02

High Structural Strength

The combination of thick warp and thin weft wires in plain Dutch weave mesh results in high structural density and superior stiffness, providing excellent mechanical strength and rigidity with minimal risk of deformation.

03

Premium Material Quality

Plain Dutch weave mesh is manufactured using carefully selected materials such as 304/316L stainless steel, Monel, nickel, Hastelloy, and other specialty alloys, ensuring outstanding corrosion resistance, rust resistance, tear resistance, abrasion resistance, and light transmittance.

04

Smooth Surface Finish

The fine weaving technique of plain Dutch weave mesh yields a smooth, burr-free surface with an open and uniform structure, enabling unobstructed fluid passage. It also delivers excellent backwash performance and allows for repeated use in cyclic operations.

Plain Dutch Weave Wire Mesh Packaging

Inner paper tubes

Inner paper tubes

Waterproof paper

Waterproof paper

Plastic film

Plastic film

Plywood boxes

Plywood boxes

Pallets

Pallets

Technical Specifications

Guangtong Plain Dutch Weave Wire Mesh Specifications
Mesh count per inch Wire diameter inches Absolute filter rating microns Nominal filter rating microns
8×85 014×.0126 318-340 250-255
12×64 .024×.0165 270-285 200-205
14×88 .020×.013 225-245 150-155
20×150 .0098×.007 155-165 100-105
24×110 .015×.010 115-125 80-85
30×150 .009×.007 95-100 65-70
40×200 .007×.0055 65-70 55-60
50×250 .0055×.0045 55-60 40-45
80×400 .0049×.0028 43-48 35-40

Plain Dutch Weave Wire Mesh Process Technology

Slotting

Slotting

Laser Cutting

Laser Cutting

Stamping

Stamping

Binding/Framing

Binding/Framing

Forming

Forming

Welding

Welding

Sintered

Sintered

Pleated

Pleated

Molding

Molding

Custom Design

Custom Design

Plain Dutch Weave Wire Mesh Deep-processing Products

We can produce filter assemblies with non-standard sizes, special shapes, and composite structures according to customer drawings or samples.

Plain Dutch Weave Wire Mesh Quality Control System

Raw material control

Raw material control

Spectrometer inspection upon entry to ensure that the stainless steel wire meets the requirements.

Production process inspection

Production process inspection

Using precision calipers, tool microscopes, CNC equipment, etc., to strictly test the mesh size, wire diameter, opening rate, and weight, etc.

Weaving quality inspection

Weaving quality inspection

Ensure that the mesh surface is flat, free of broken or loose threads, and the weaving is uniform.

Final inspection

Final inspection

Before each batch of products leaves the factory, a final review of appearance and dimensions is conducted to ensure 100% consistency with customer requirements.

Packaging

Packaging

We will use inner paper tubes, waterproof paper, plastic film, plywood boxes and pallets for packaging to prevent damage to the goods during transportation.

Shipment

Shipment

We will cooperate with reliable freight forwarders, closely monitor the logistics information of each batch of goods, and track the delivery status of customers in real time. Ensuring the safe and efficient delivery of each batch of wire mesh products to our customers is the principle we have long pursued.

Learn More >

Plain Dutch Weave Wire Mesh Certificates

Plain Dutch Weave Wire Mesh Certificates

Guangtong has obtained a comprehensive suite of authoritative international credentials, including ISO 9001, ISO 45001, ISO 14001, IATF 16949 Automotive Quality Management System, and AEO Customs Certification. Our rigorous quality management and standardized production processes fully comply with global industrial and export requirements.

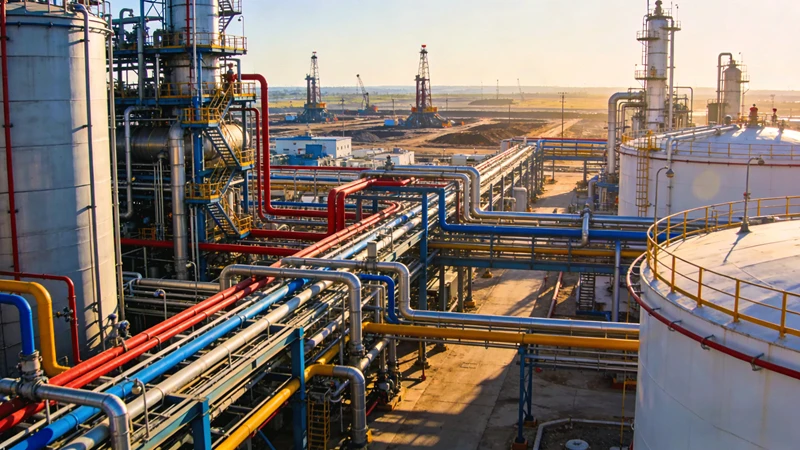

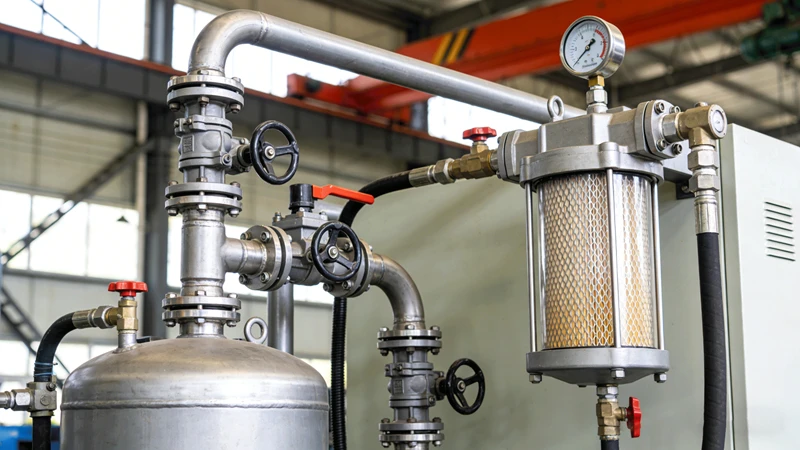

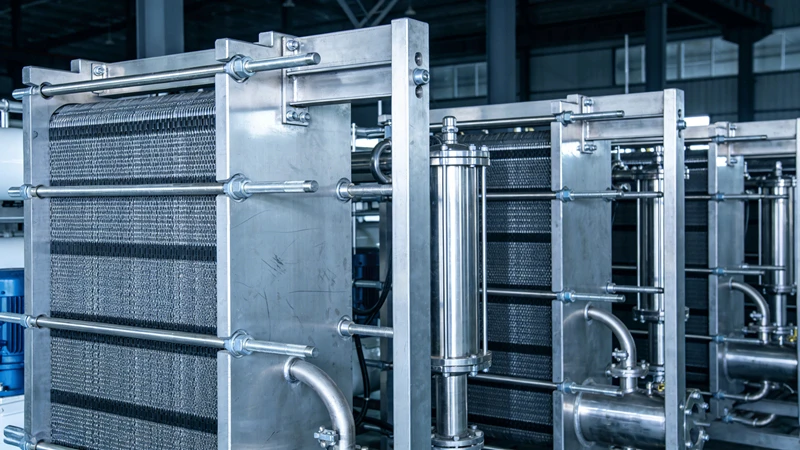

Plain Dutch Weave Wire Mesh Applications
